Description of the device
The device is a degassing and make-up station. Its main areas of application are heating and cooling circuits and systems in which
interruptions of operations due to dissolved or free gases. The device works only with a vacuum pump designed for this purpose. This
design enables a compact footprint for small and mid-sized systems.
The device provides the following safety features:
• No direct intake of air thanks to a regulation of the pressure maintenance with automatic make-up.
• No circulation issues caused by free bubbles in the circuit water.
• Reduced corrosion damage due to oxygen removal from fill and make-up water.

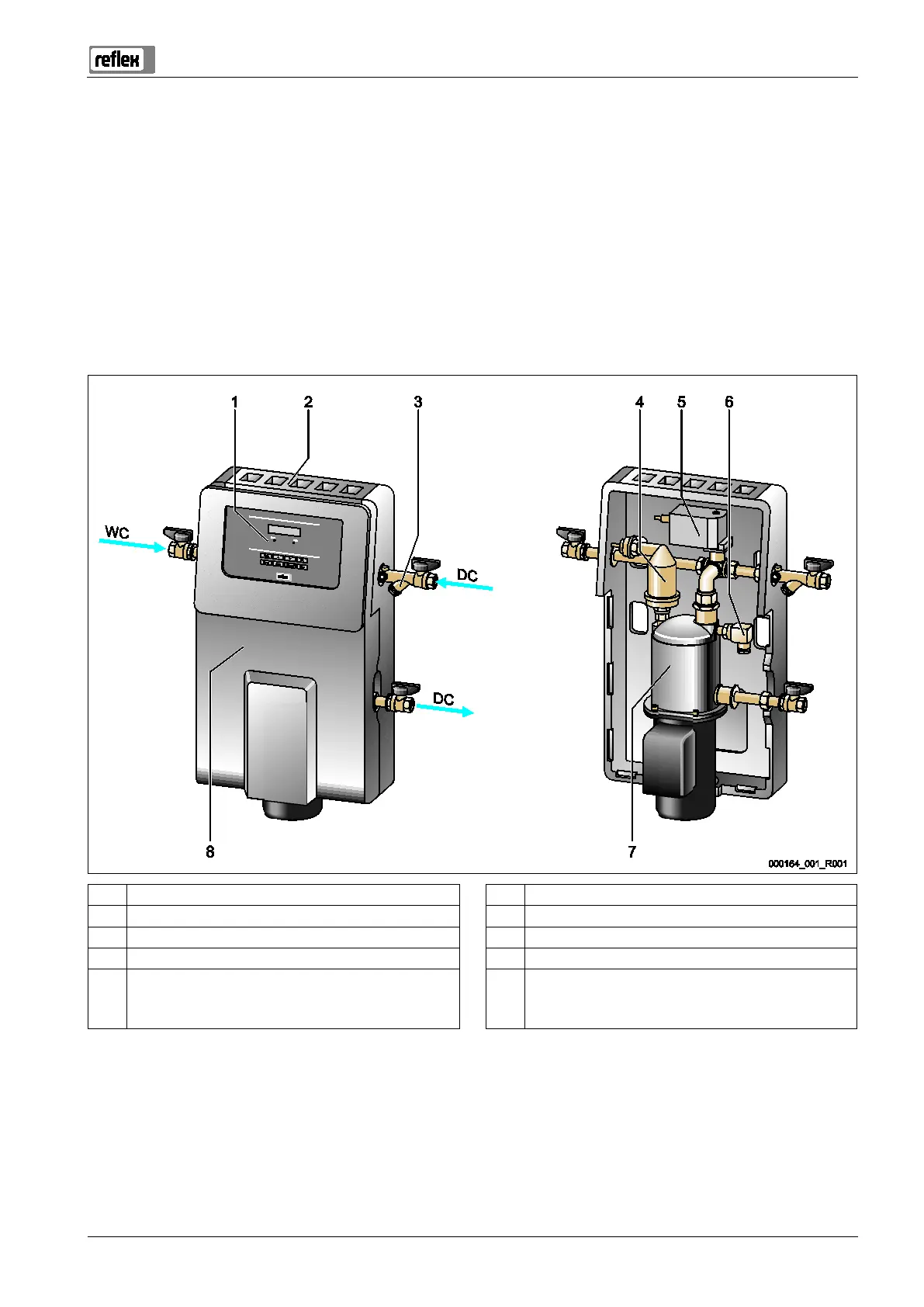

1 Controller 6 "PIS" pressure transducer
2 Venting grille 7 "PU" vacuum degassing pump
3 "ST" dirt trap 8 Removable front shell
4 "DV" degassing valve WC Make-up connection
5 "CD" 3-ways motor ball valve for the hydraulic regulation
of system and make-up degassing
DC Degassing connection
• Gas-rich water inlet
• Degassed water outlet
