3 Description of Device
Pos: 21 /Inverter M anuals/Ger ätebeschreibun g/Funktions prinzip/842 @ 3\mod_1478 694165628_6 41.docx @ 25 306 @ 2 @ 1
3.1 Operating Mode
The REFUsol 40K / 46K-MV transforms the direct current generated by photovoltaic (PV) modules into
alternating current and feeds this into the public grid.
1
3
2
4
5 6
7
2

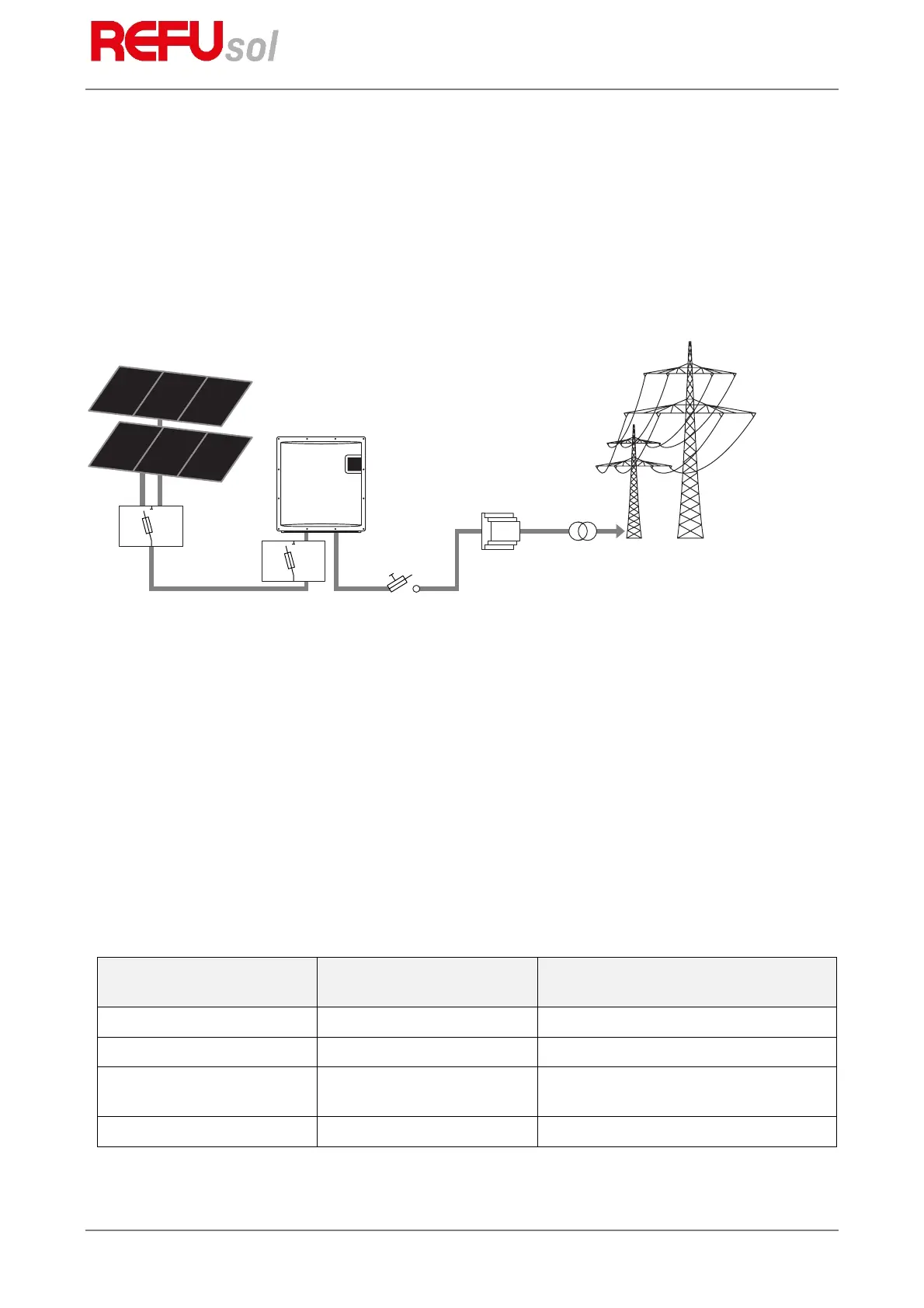

Figure 1: How it works: a grid-connected PV system with photovoltaic inverter
1 PV modules
2 Solar string combiner box
3 REFUsol 40K / 46K-MV photovoltaic inverter
4 Fuse switch disconnector or circuit breaker
5 Grid Protection
6 Isolation transformer is required for medium-voltage network
7 Low or medium-voltage AC grid
Pos: 22 /Inverter M anuals/Ger ätebeschreibun g/Voraussetzu ngen Inf rastruktur/842 @ 1\mod_14 11567317128 _641.docx @ 809 8 @ 2 @ 1
3.2 Infastructure Requirements
Additional required
equipment
40K at the low voltage
network
40K/46K-MV at the medium voltage
network
DC load break switch integrated* integrated*
AC load break switch necessary necessary
Central grid protection
device (VDE-AR-N 4105)
necessary necessary
LV-/MV-Transformer not necessary necessary
*local regulation might require an additional DC switch at the external DC combiner box.
The following points are to be considered when planning the infrastructure:
