5.6 Control Panel

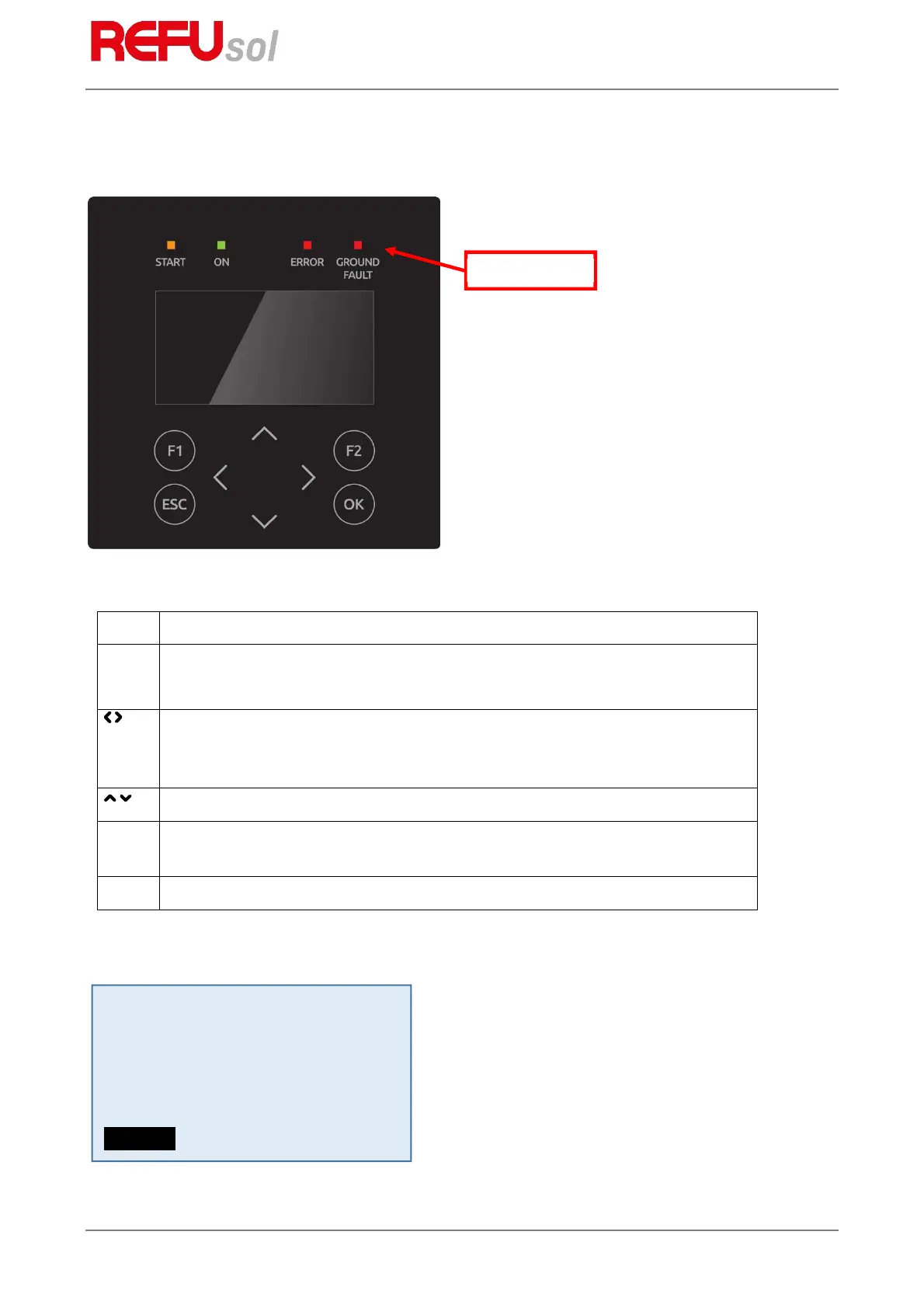

Fig. 15: Control panel with status LEDs, display and keys
F1
Displays the Menu
F2
In basic display: Reboot of display
“Energy / x kWp” display: Input of standardized (normalized) data
Function in the menu: Navigation within the menu level (previous menu, next menu).
Function while parameters are edited: digit to the left, digit to the right (decade
jump)
Selection within the menu.
ESC
Acknowledge failures and exit from menu level, exit from input menu without
entering data
OK
Confirm the selected menu (next menu level) and entered data.
Pos: 52 /Inverter M anuals/Betri eb/Inbetrie bnahme/Dis play Basisbild/W R @ 1\mo d_140507156393 1_641.docx @ 70 74 @ 2 @ 1
5.7 Basic Screen
Fig. 16: Operating mode display
PAC
8260
W
VAC 405 V
VDC 634 V
E day 27.6 kWh
Feeding
Menue
Status LEDs
