REFU Elektronik GmbH REFUsol 40K / 46K-MV 39
PAC = Current feed power in Watts (W)
VAC = Line voltage in Volts (V)
VDC = Solar cell voltage in Volts (V)
E day = Energy yield of the day in kWh
Pos: 53 /Inverter M anuals/Betri eb/Inbetrie bnahme/Grafi kanzeige/W R @ 1\mod_1405 071640916_6 41.docx @ 70 79 @ 2 @ 1

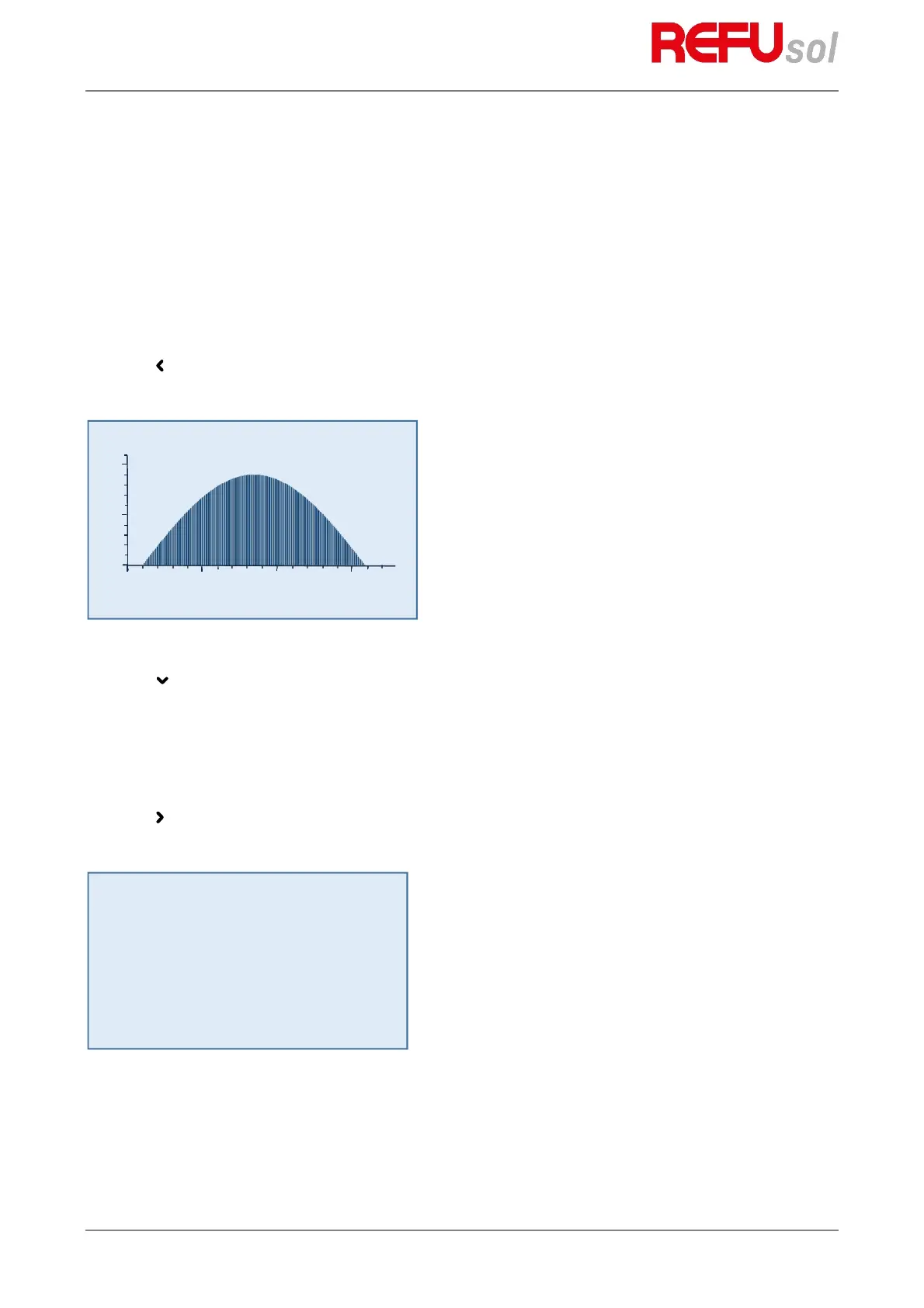

5.8 Graphical Display
Press the arrow key once to display the development of the day's feed power.
Fig. 17: “Today's” feed power display
Press the arrow key to display the development of the previous days.
Press the
ESC
key to return to the basic screen display.
Pos: 54 /Inverter M anuals/Betri eb/Inbetrie bnahme/Anzei ge Ertrags daten/WR @ 1\m od_1405071 811054_641. docx @ 7087 @ 2 @ 1
5.9 Energy Yield Data Display
Press the arrow key to display the current yield data and the operating hours having currently elapsed.
Fig. 18: Energy yield absolute display
kW 01.0
3.2017
36
kWh
40
20
0
5 10 15 20 c|k
Energy absolute
Day : 0.7 kWh
Month : 5.3 kWh
Year : 49.2 kWh
Total : 265.8 kWh
Oper. hr : 16.1 h
