30 REFUsol 40K / 46K-MV REFU Elektronik GmbH
4.13
Phoenix T-LOX Knee Lever Connection
The terminal for DC and AC connection is suitable for use with conductors from 10 mm² ... 50 mm².

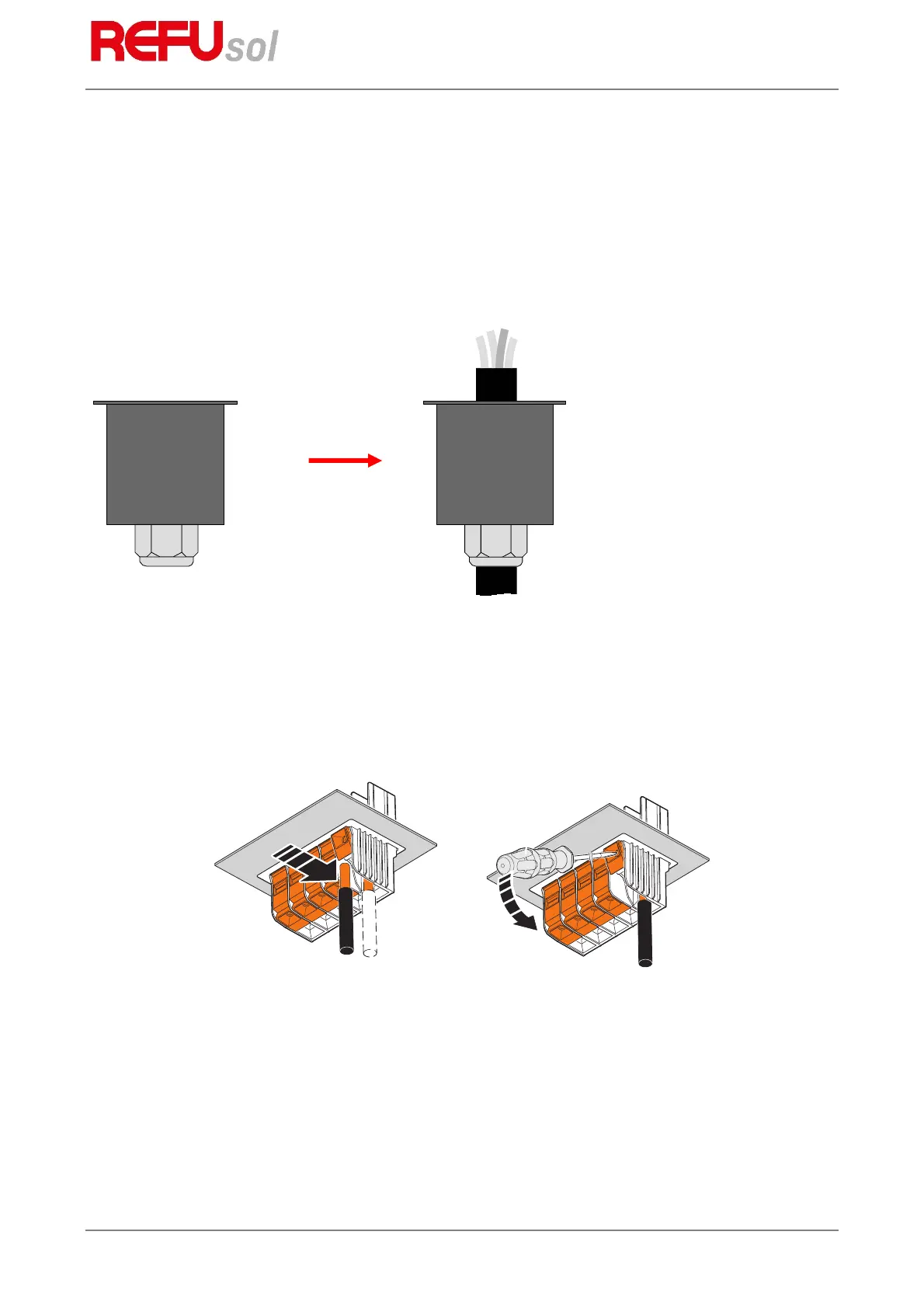

1. Put the cable through the cable gland into the connection housing.
2. Remove 90 mm of the cable sheath.
3. Remove 20 mm of the conductor insulation.
4. Place the sealing element on top of the connection housing.
5. For aluminum conductors: Grease stripped areas with contact grease.
6. Place the conductor on the installed inverter as far as it will go into the clamping point.
7. To clamp the clamping point, insert a screwdriver in the round opening on the orange cover and tilt it
forwards.
8. Lift the connection housing onto the inverter housing, fitting it into four threaded bolts of the inverter
housing.
