REFUSOL 40K - Configurations

REFU Elektronik GmbH REFUsol 40K / 46K-MV 57
8.2.3 Configurations

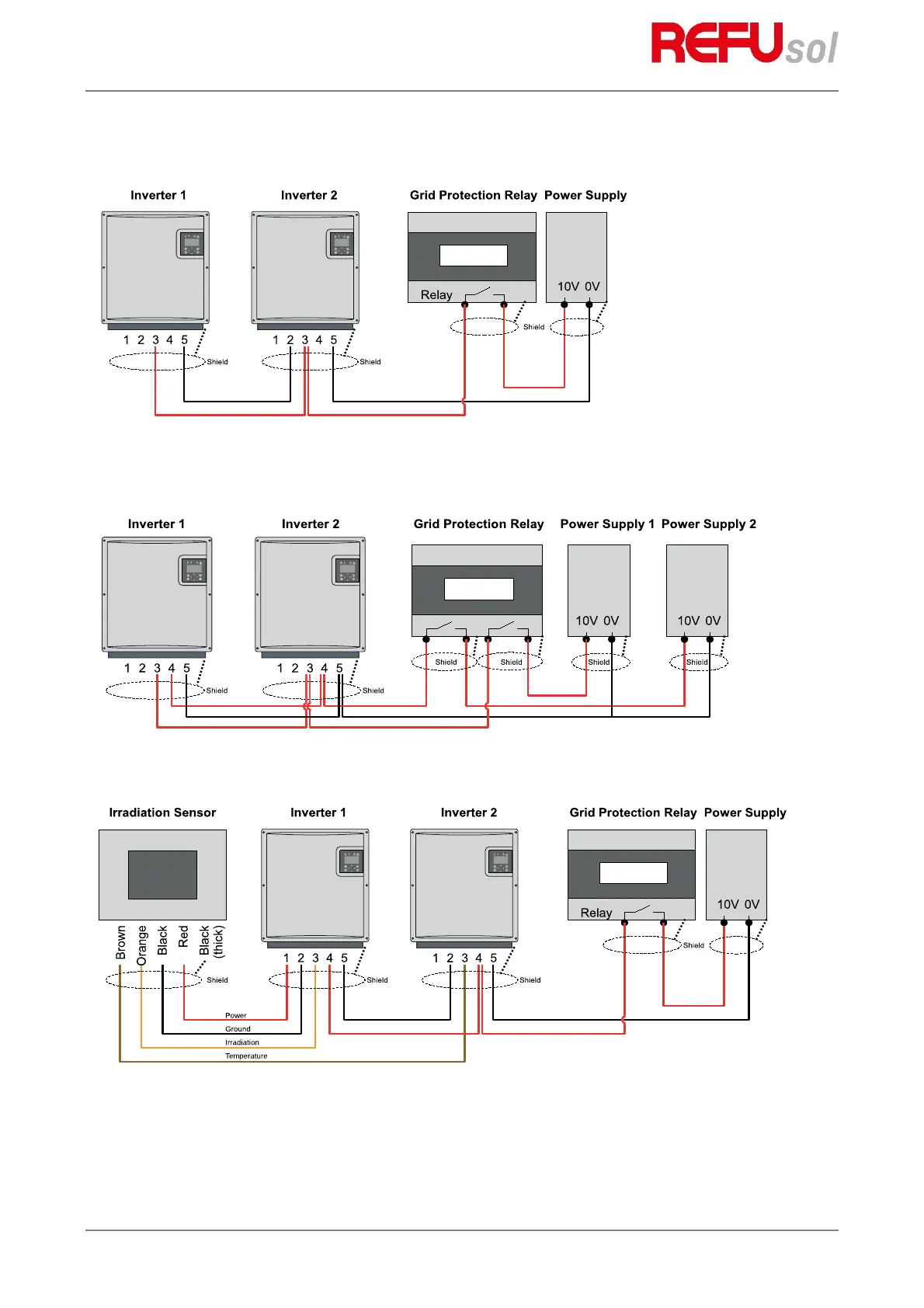

Fig. 24: Single external stop signal
Fig. 25: Redundant external stop signal (does not apply to AFCI variant)
Fig. 26: Single external stop signal with sensor connected (does not apply to AFCI variant)
