22 REFUsol 40K / 46K-MV REFU Elektronik GmbH

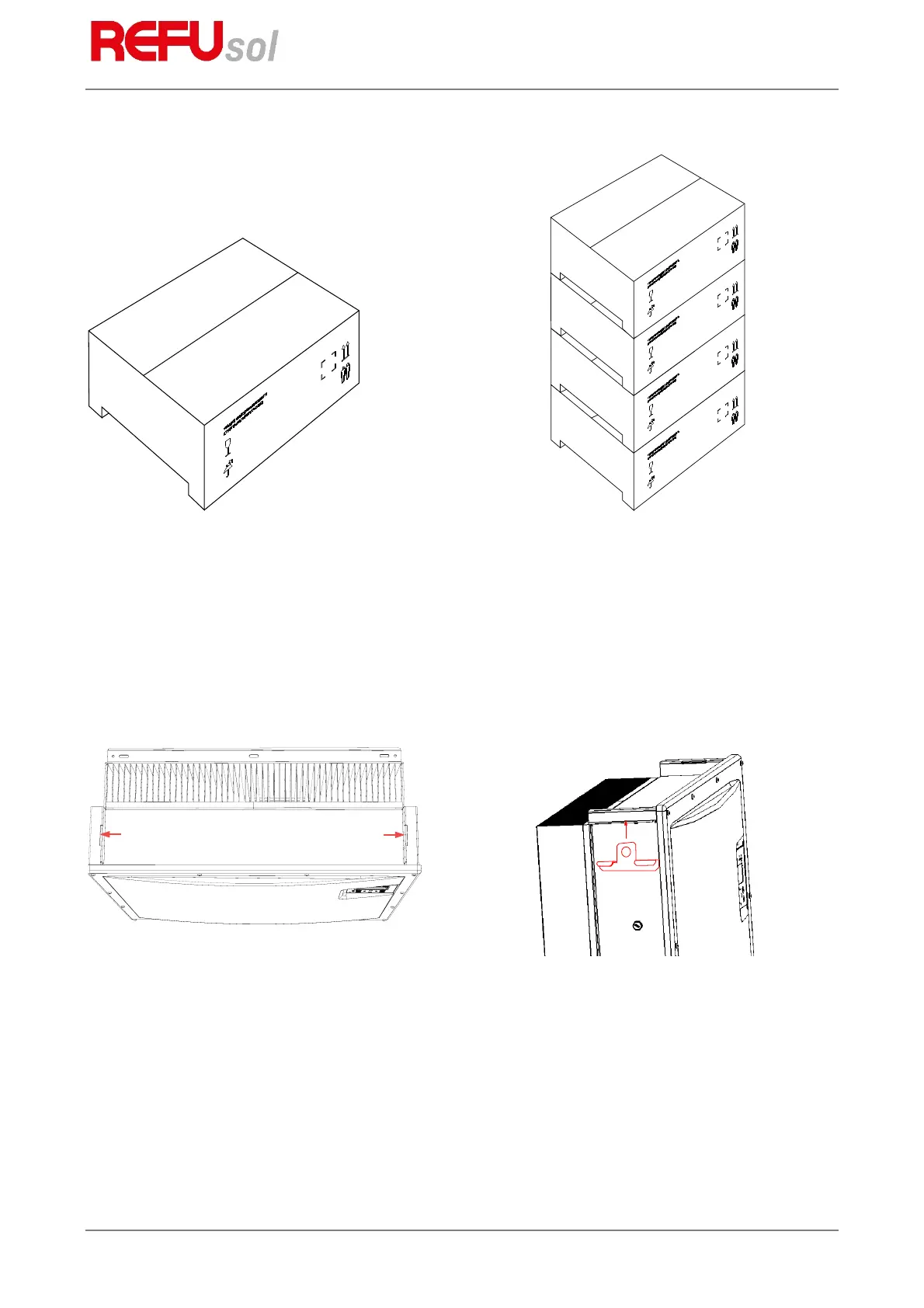

They can be stacked up to a maximum of 4 boxes high.
1. Open the box.
2. Take out the wall mount plate.
3. Take out the corner protection at the top of the inverter.
4. Fix the lifting eye plates into the slot (see red arrows):
5. Carefully lift the inverter out of the box with a crane or with 2 persons. Keep the product weight of
75.6 kg in mind!
