35
Auxiliary Equipment Operation
To read either the fresh water or waste water monitor
panel the breaker on the main DC panel must be acti-
vated.
e optional monitor is normally located inside the ship’s
AC/DC cabinet or may be located behind the starboard
picture window on a trim panel.
e fresh water monitor displays the amount of potable
water in the system. ere are sensors located in the
water tank that send a signal to the display panel when
activated. Press the top portion of the toggle switch and
read the gauge display.
e waste portion of the display shows the amount of
waste water in the holding tank. ere are sensors lo-
cated in the waste tank that send a signal to the display
panel when activated. Press the bottom portion of the
toggle switch and read the gauge display.
is portion of the system needs to be monitored peri-
odically to prevent the system from being over full which
could cause equipment damage and/or a possible leak
in the vessel.
If the waste system is determined to be full it can be emp-
tied by connecting a marina pump-out hose to the waste
tting located on the deck. e pump out device will
actually remove the waste much like a vacuum cleaner.
is is the easiest way to eliminate the vessel’s waste and
be environmentally friendly while performing the task.
An alternative method which can be used in Interna-
tional waters only is to pump the waste overboard using
the waste seacock.

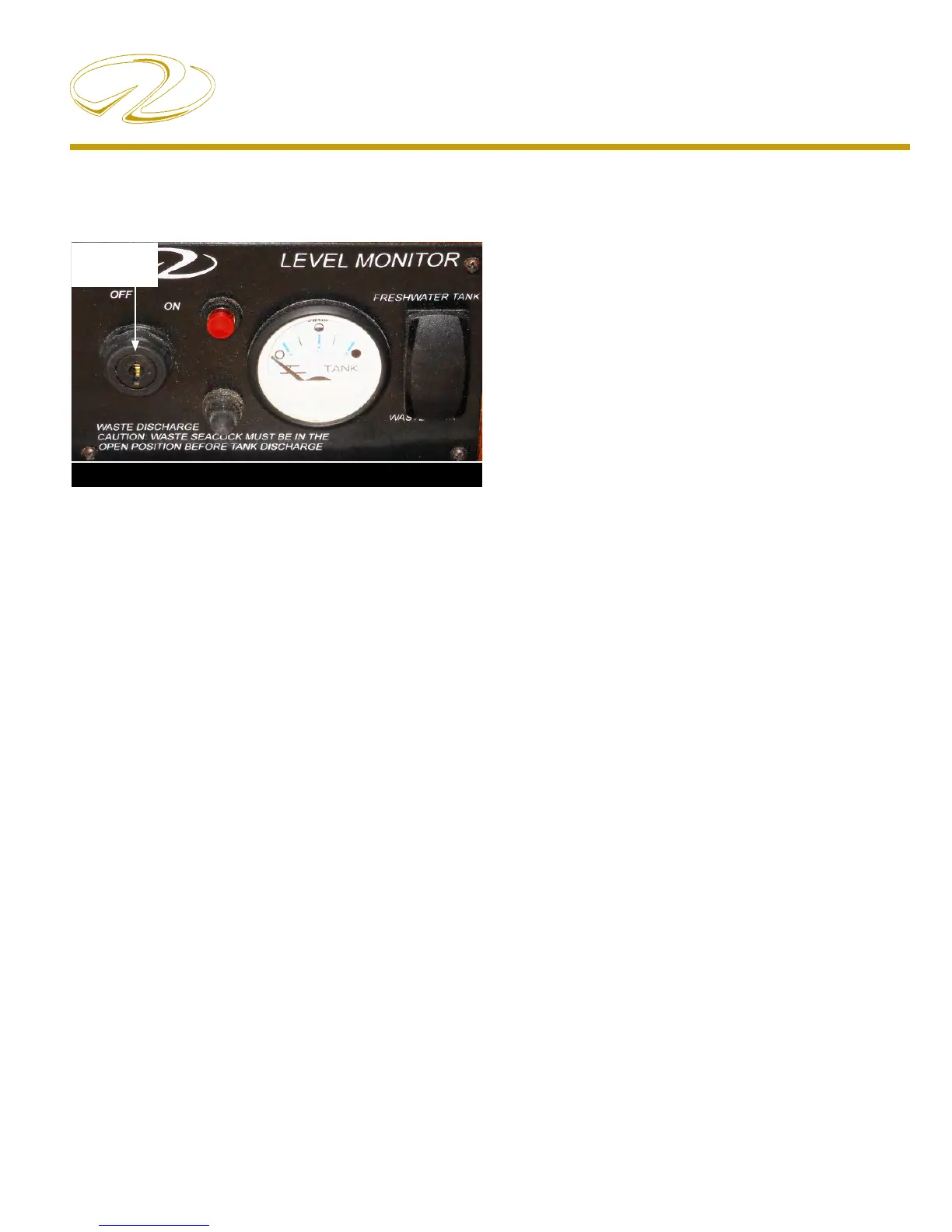

WATER/WASTE MONITOR
Macerator
Key Switch
FRESH WATER & WASTE MONITOR
