27
Systems
TYPICAL WASTE SYSTEM
CHEMICAL TOILET
Installed as standard equipment on your vessel is a
self-contained sanitation device known as a chemical
toilet featuring an upper fresh water tank and a lower
deodorized tank. ese two components can be separated
for waste disposal, cleaning and re lling. e lower tank
contains a capacity gauge. Before each outing, check the
waste level since it is illegal to dump waste within and
extending out to the United States territorial limit.
For more information, review the vendor manual
supplied in the owner’s information packet or visit the
vendor on-line location.
FLUSHING BELLOWS
HOLD DOWN
BRACKET
LIFT & PULL FORWARD
TO REMOVE HEAD UNIT
DEODORIZED WASTE
TANK
FRESH WATER TANK

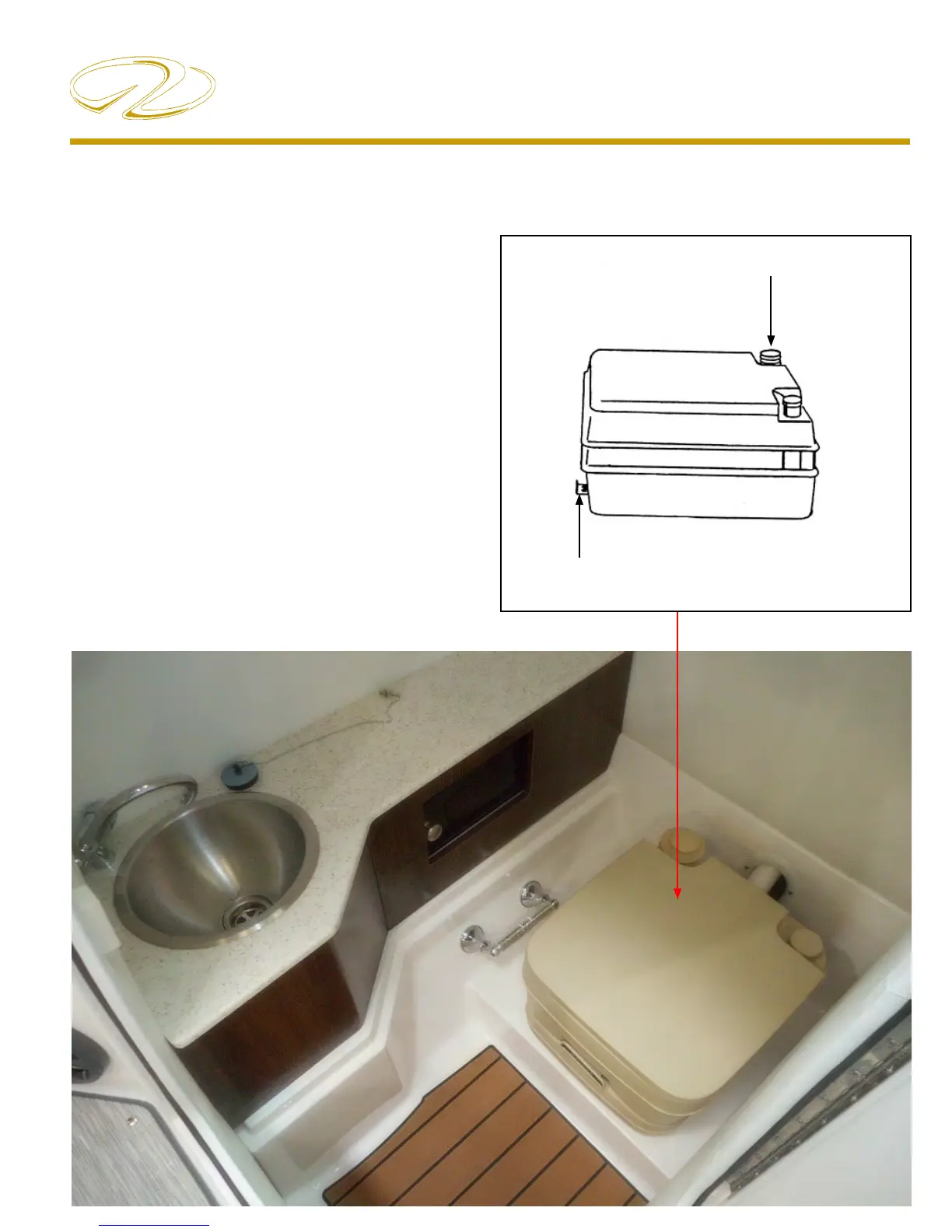

TYPICAL CHEMICAL TOILET
TYPICAL HEAD OVERVIEW WITH CHEMICAL TOILET
