08-29-16

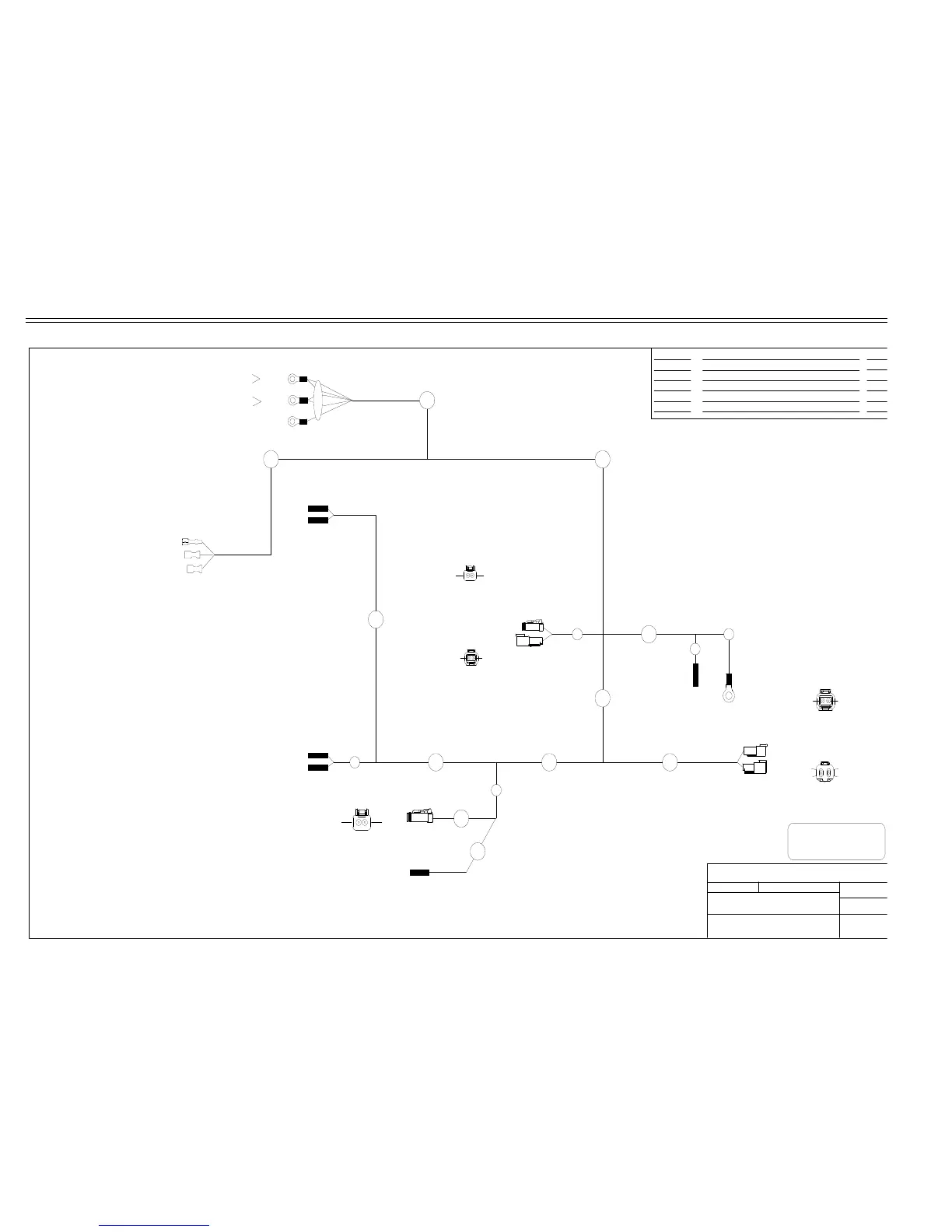

REGAL MARINE
26 FASHDECK
14 BLK - BILGE PUMP
2WAY DEUTSCH DT PLUG
C
ONNECTOR 54-0202-042 ( DT06-2S )
LOCKING WEDGE 54-0201-043 ( W2S )
PORT
UNDERWTR LT
16 BLU/GRN, 16 BLK
HEAT SEAL BUTTS
THIS DOCUMENT IS THE PROPERTY OF
K
AUFFMAN ENGINEERING INC., VIRGINIA BEACH,
VA. ALL RIGHTS ARE RESERVED. THIS DOCUMENT
AND INFORMATION CONTAINED MUST NOT BE
COPIED OR DISCLOSED TO OTHERS WITHOUT
WRITTEN PERMISSION OF
KAUFFMAN ENGINEERING INC.
DRAWN BY
CUSTOMER
16 PNK - FUEL
H
EAT SEAL BUTT
CAD FILE D
ATE DRAWN
REV. DATE
PART NUMBER
7/16 flex
1
/2 flex
1/4 flex
3/8 flex
1/2 flex
3/8 flex
7/16 flex
1/4 flex
1/4 flex
1/2 flex
7/16 flex
3/8 flex
AUTO FLOAT
14 BRN (BILGE PUMP-2) 14 BRN/WHT (AUTO FLOAT)
2WAY DEUTSCH DT RECEPTACLE
54-0201-047 ( DT04-2P )
54-0202-043 ( W2P )
.
12
14 BRN (BILGE PUMP-1)
HULL HRNS [262703]
14 BLK (BILGE PUMP)
BILGE PUMP
1 2
.
STBD
U
NDERWTR LT
16 BLU/GRN, 16 BLK
HEAT SEAL BUTTS
08-29-16
BLOWER
14 BLK14 YEL
2WAY DEUTSCH DT PLUG
CONNECTOR 54-0202-042 ( DT06-2S )
LOCKING WEDGE 54-0201-043 ( W2S )
1 2
.
10 BLK - FIRE EXTING
DECK RECEPTACLE 1
14 BRN/WHT (AUTO BILGE)
14 BRN (BILGE PUMP)16 BLK/WHT (FIRE BOY)
16 PNK (FUEL)
2
1
3
4
4WAY DEUTSCH DT RECEPTACLE
CONNECTOR 54-0402-018 ( DT04-4P )
LOCKING WEDGE 54-0402-019 ( W4P )
.
DECK RECEPTACLE 2
12 YEL (BLOWER) 14 BLU/GRN (U/WTR LTS)
2WAY DEUTSCH DTP RECEPTACLE
CONNECTOR 54-0202-052 (DTP04-2P)
WEDGELOCK 54-0202-051 (WP2P)
.
1
2
#10 RING
8 GRN - TANK BOND
10 BLK (FIRE EXTING) - .25 UF FEM
12 BLK (BLOWER) - .25 UF FEM
16 BLK/WHT (FIRE BOY) - .25 UF PIGGY
FIRE EXTINGUISHER
42 4
3
10
3
9
DT06-2S
6
12
6
42
20
DT06-2S
DOUBLE
12
22
3. TAPE & COVER SPLICE LOCATION WITH THE REST OF THE WIRES TOGETHER.
2. FLAME RETARDENT FLEX TO BE USED
1. TAPE HARNESS EVERY 12"
NOTES:
flex
To Next Page
