51
Systems

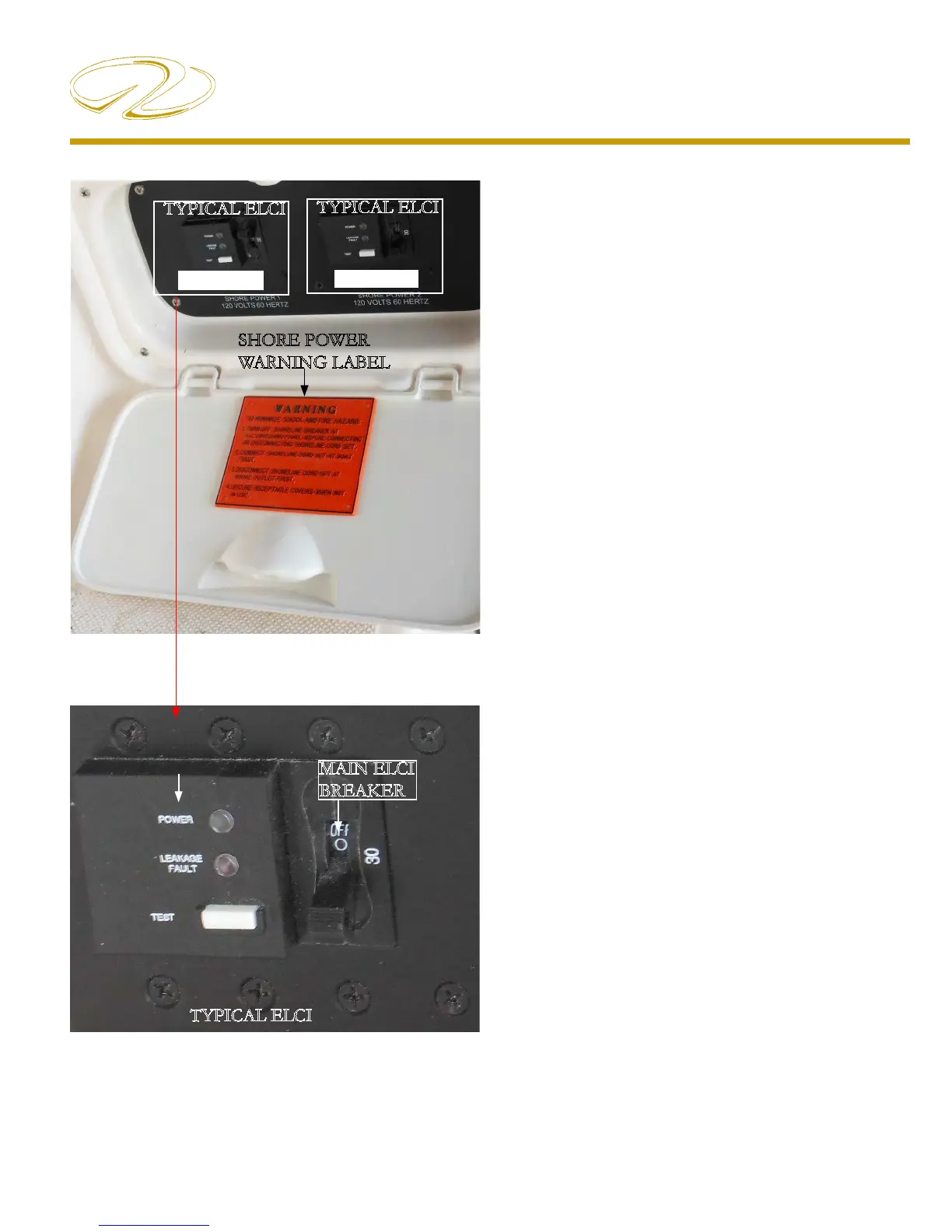

TYPICAL ELCI
Leakage Fault” Detector
TYPICAL ELCI
MAIN ELCI
BREAKER
SHORE POWER
WARNING LABEL
ELCI LEAKAGE FAULT DETECTOR LED IN-
FORMATION
As an integreted part of the ELCI system there are two
LED lights with a “test” button located on at the shore
power inlet. With the breaker in the “on” position and
the shore power cord hooked up thesee LED lights may
show variations in color to privide system conditions
They are:
1. Green LED On- Red LED Off
Line voltage is present, the breaker is closed, and the
device is protecting the circuits against over current
and leakage current.
2. Green LED Off, Red LED On
The device has detected leakage current and has
opened the circuit breaker.
3. Green LED Flashing, Red LED Off
The circuit breaker has opened due to overcurrent or
has been manually turned to the “off ” position.
4. Green LED Off, Red LED Off
Line voltage is not present. Check cord connections
and marina breaker for “on” position.
5. Green LED Flashing, Red LED Off, Amber LED
On
Indicates hot and neutral are reversed and the circuit
breaker is open.
Note: Check circuit at least monthly by pushing in
the white switch marked TEST. When depressed the
breaker should return to the reset position indicat-
ing the ELCI circuit is operating properly.
For further information on the ELCI PC-S refer to the
Carling web-site.
Note that both shore power 1 and 2 use the same testing
procedure along with the LED detector fault system.
TYPICAL ELCI
TYPICAL ELCI
SHORE 1
SHORE 2
