Auxiliary Equipment Operation
SALON TABLE-TYPICAL
The salon dinette table is located to provide easy access
for dining
needs. It is hinged to accomodate additional
personnel. To use the table:
1. Unsnap the strap holding the table behind the salon sofa
center backrest. Pull out the table. See illustration A.
2. For ease of installation set the table on the sofa with
the table support facing up.
3. Locate the table leg. Normally it is stored in the center
fl oor hatch opposite the salon sofa.
4. Install the table leg in the angled table receiver on the
sofa riser surface. Pull the spring latch pin and hold until
the leg bottoms out. Release the pin to lock the table leg.
See illustration B.
5. Install the table onto the top table support until it bot-
toms out. Flip the hinges back to provide larger dining
surface. See illustration B.

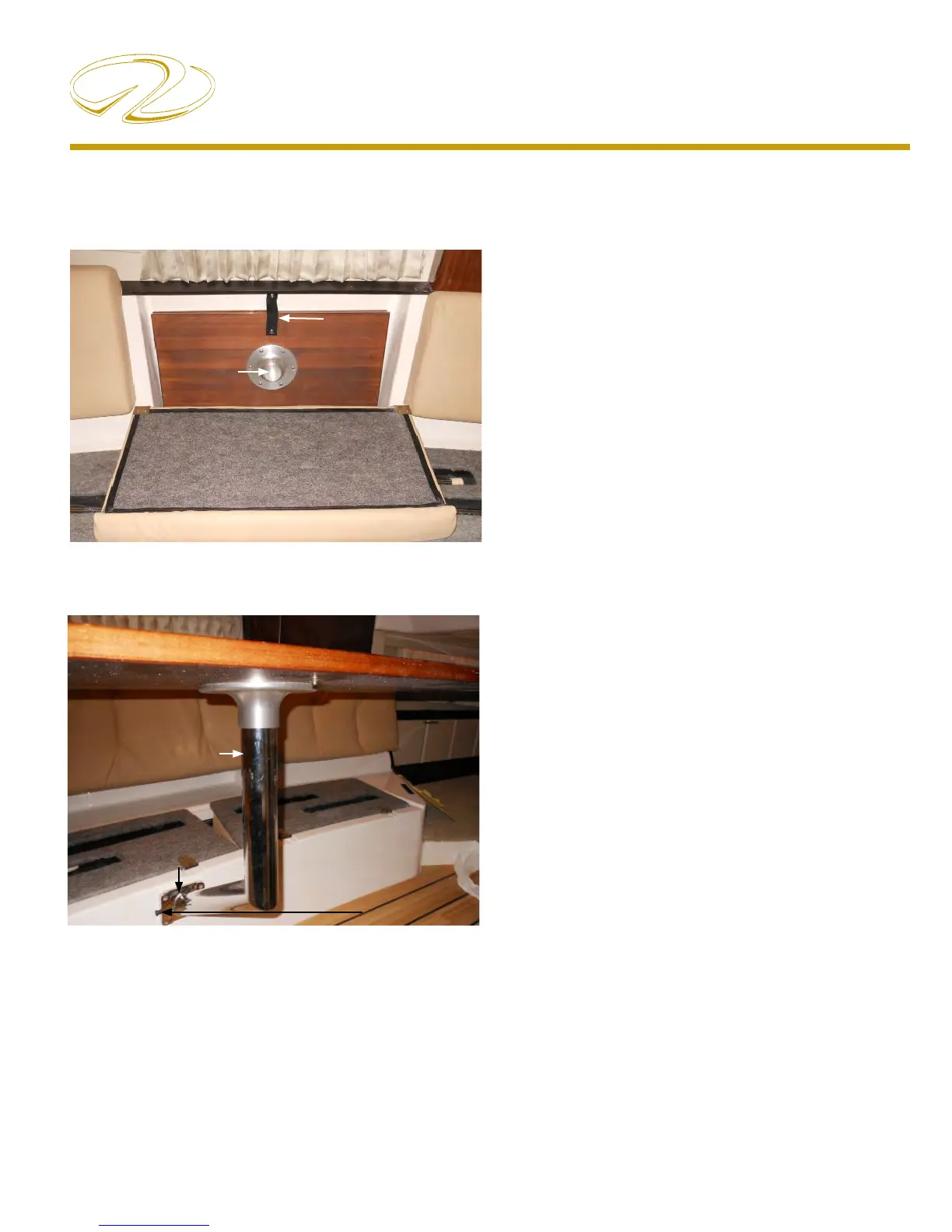

SALON-DINETTE TABLE SET-UP
Latch Pin
Table
Support
Strap
Receiver
Center Backrest Cushion
A
Table Leg
To Next Page
