16
Chapter 7

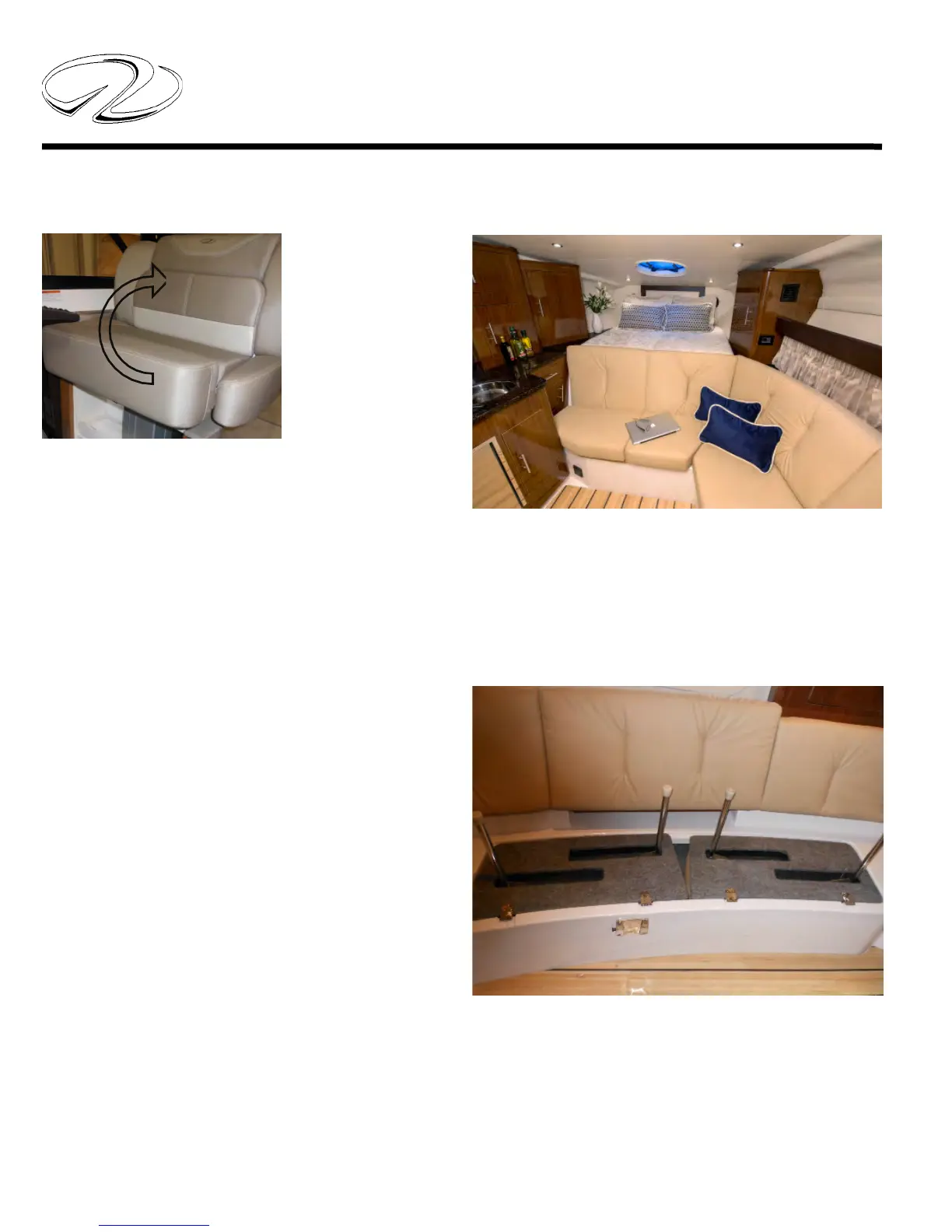

The helm seat fea-
tures a leaning post
to gain extra height
or additional stand-
ing room at the helm
when maneuvering
in close quarters.
To add seat height
using the leaning
bolster lift the front
of the helm seat up-
ward. This permits
the leaning bolster
to rotate upward until fully extended. See the illustration.
SEAT-HELM (TYPICAL)
Flip Front Cushion Up For
Increased Standing Room
SOFA-CONVERSION TO SLEEPER
The salon sofa can serve a dual purpose as a sleeping berth.
To make up the berth do the following:
1. Remove all the starboard side sofa cushions (not the
backrests). See the illustration below.
2. Next pull up all the berth legs. Do not force the legs.
There is a round leg release pin at the base of each leg that must be
pushed in to release each leg from the locked position. Hold the pin
in with your fi nger and pull the leg slowly until it passes
without catching. Now the leg can be positioned vertically.
See the illustrations.
