Auxiliary Equipment Operation
HATCH-TYPICAL
Select deck hatches feature dual lockable positions. To lock
the hatch fi rst grab the handle and turn it so it engages the
side of the seal ring as shown. Push the lock mechanism
to engage the handle in the locked position.
To unlock the hatch pull the handle away from the seal
ring (in line with adjuster) or 90 degrees from the locked
position.
To open the hatch make sure the hatch is unlocked. Then
push the rod up and lock at desired angle by turning the
adjuster.
A screen is provided for cross ventilation and to protect
against insects. Secure the screen by turning the tabs at a
90 degree angle to the screen framework.
Note: While underway close and lock all hatches se-
curely.

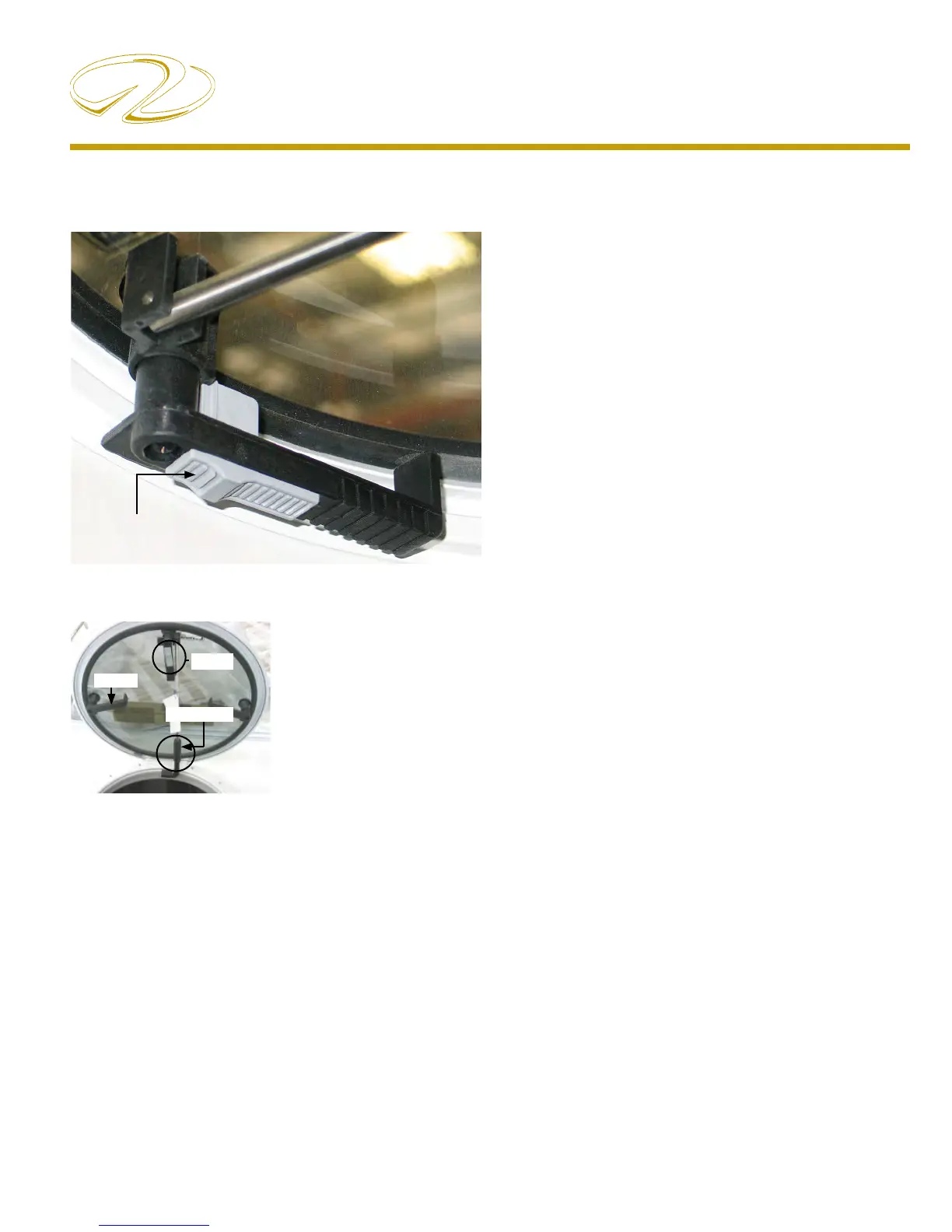

Hatch Shown In
Locked Position
Latch
Lock
Adjuster
