SPOTLIGHT-TYPICAL
The optional “5” spot-
light/fl oodlight uses a
high-powered, dual fo-
cus sealed beam bulb.
With an output of
72,000 candlepower,
the unit can illuminate
objects up to 1/4 mile
away. Notwithstand-
ing, the 30,000 candle
power spotlight is per-
fect for docking or
mooring.
The unit rotates up
to 350 degrees and
includes a vertical arc of 70 degrees and an easy to use
“joystick” style remote control. The spotlight uses a 12
volt operating system and is constructed of stainless steel
or chrome brass for years of carefree service.
The spotlight control panel uses a 2 way switch to control
the type of light output. To control the direction a 4 posi-
tion joystick style switch is used.
The 2 way switch in the center position is “off ”. In the
“up” position the light output is a spotlight. In the “down”
position the light output is a fl oodlight.
To move the light upward press and hold the joystick “up”.
To move the light downward press and hold the joystick
“down”.
To move the light counterclockwise press and hold the
joystick to port until the desired directional movement is
achieved.
To move the light clockwise press and hold the joystick
to starboard until the desired directional movement is
achieved.
If storing the vessel outside in colder climates turn the
spotlight so the lens faces the stern of the boat to help
prevent a broken lens due to unidentifi ed fl ying debris. Of
course another option would be to cover the lens face.

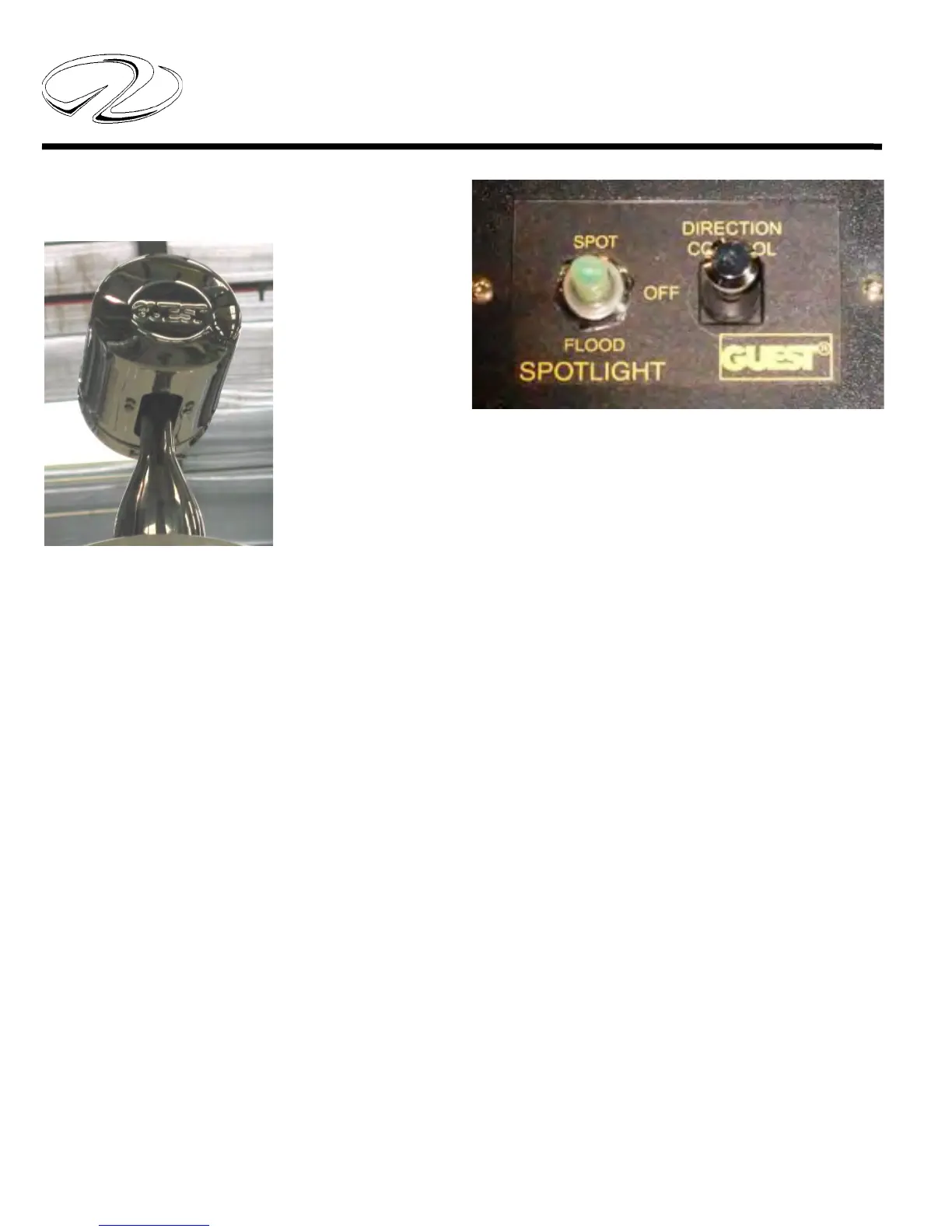

Joystick
