25
Systems

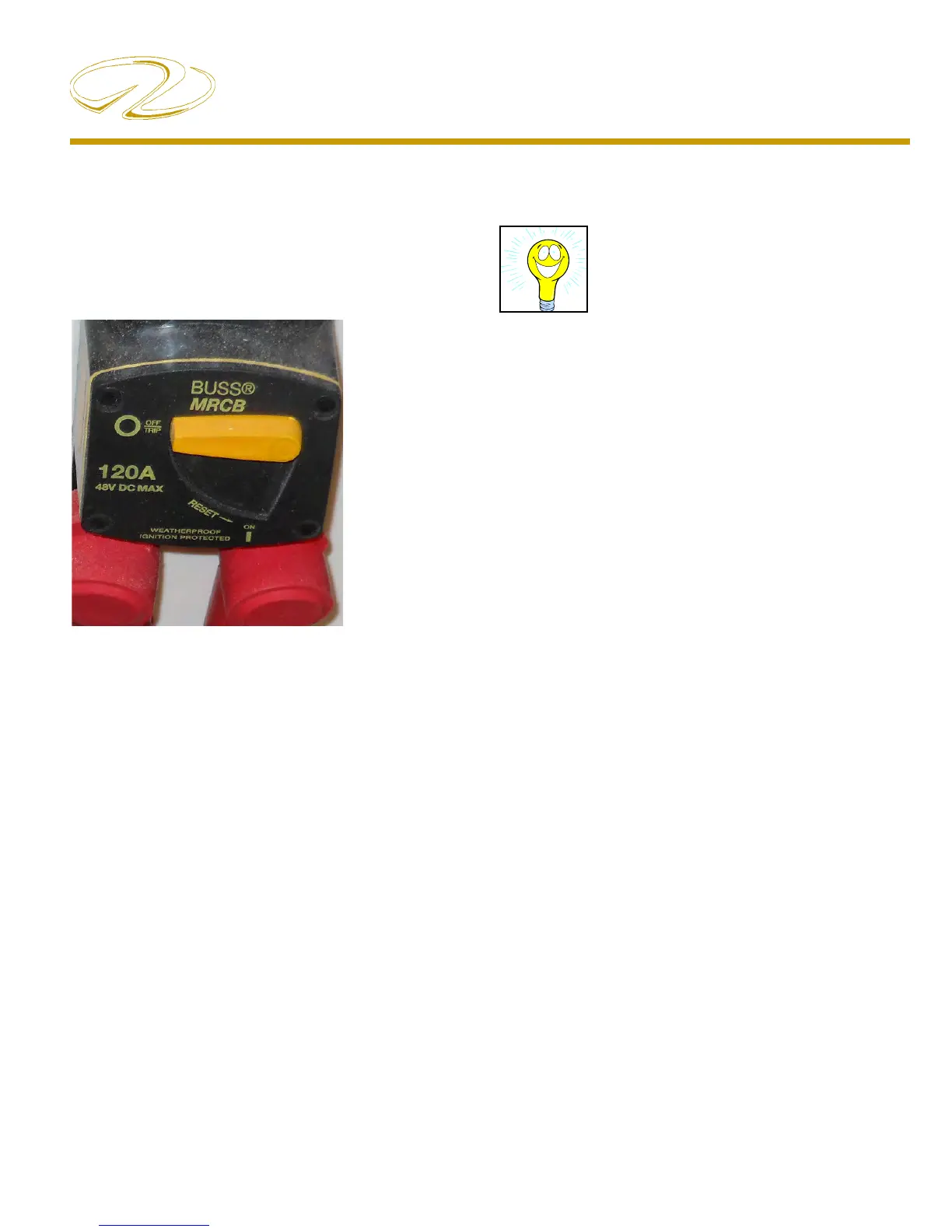

TYPICAL BREAKER
As part of the battery circuit protection from the bat-
tery to the battery management system panel a 120 amp
breaker is installed within 40” of the battery. These break-
ers are located in the bilge.
If the breaker
would draw ex-
cessive amper-
age it is possible
it could “blow”.
At this point it
would need to
be reset.
Always deter-
mine the reason
why the breaker
blew before
resetting the
breaker.
To reset the
breaker move the lever from the “off ” position to the
“on” position. These breakers are ignition protected.
POSSIBLE PROBLEMS/SOLUTIONS
1. One of the three universal battery
switches and breakers at the battery
management panel do not function-
The breaker is blown. Reset the 120 amp
breaker after determining the cause of the
problem.
2. One of the 120 amp breakers has blown- it is pos-
sible that the circuit has drawn excessive amperage or
there is a short circuit. Check the circuit components and
wiring before resetting the breaker.
