36
Chapter 4

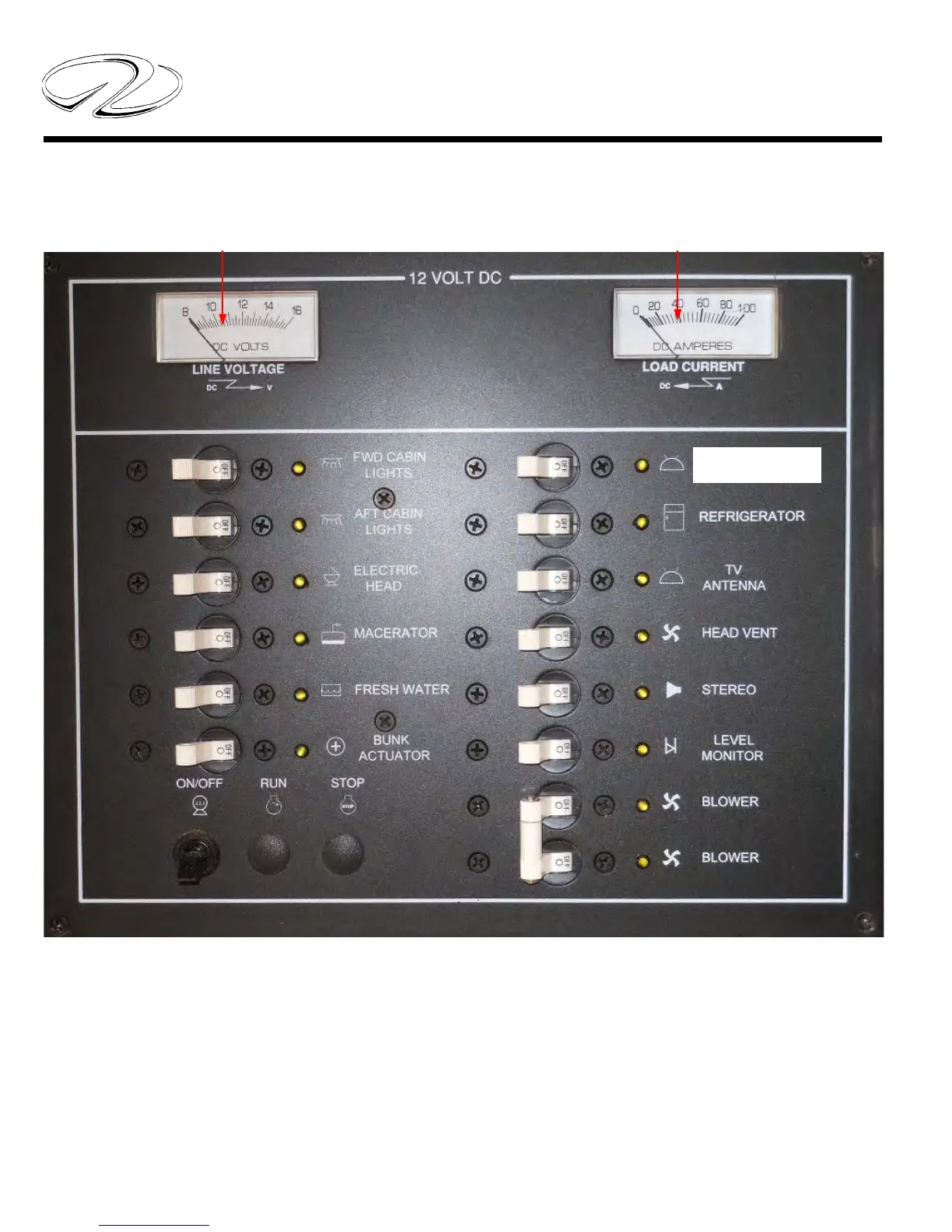

The typical main DC control panel is located in the aft
starboard salon behind the overhead cabinet doors. This
panel is protected by the cabin main breaker at the battery
management center. The panel features an analog 12 volt
DC volt meter and amp meter to monitor electrical volt-
age and load. These 2 instruments can be valuable aids in
basic electrical troubleshooting.
A triple generator switch cluster facilitates gen-set opera-
tions.
TYPICAL MAIN DC PANEL METER/SWITCH FUNCTIONS
DC VOLTS
DC AMPS
A 3 amp in-line fuse located on the rear side of the panel
protecting the soft indicator breaker icons.
TELEVISION
