Renault Clio Cup - Page 14

2010 Release
E-14

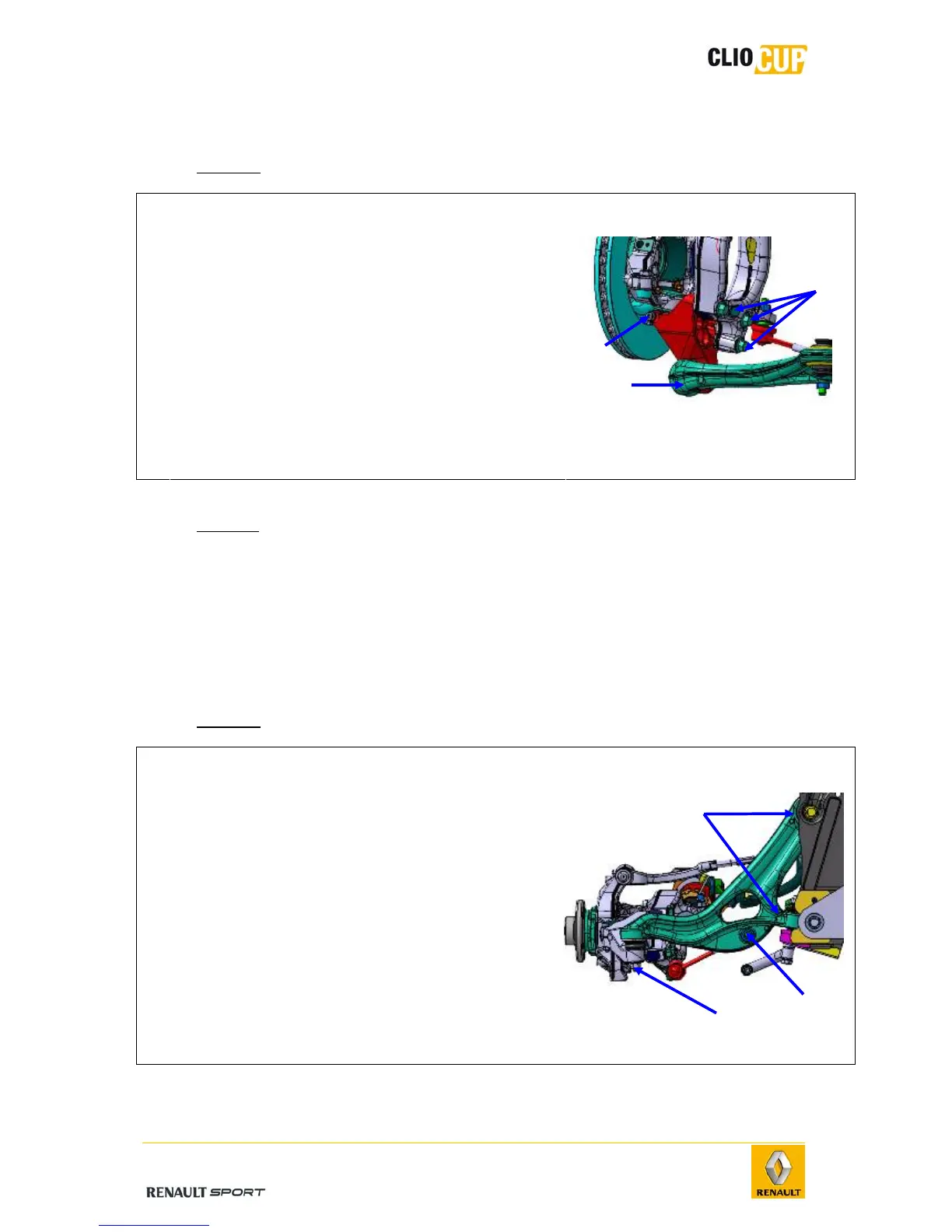

EE’ support
- Removal
Operations Photos
1 -
Remove the wheel.
2 -
Remove the point E nut (1).
3 -
Extract the EE' support from the point E ball joint;
a ball joint puller must be used to do this.
4 -
Remove the point E’ ball joint mounting bolt (2).
5 -
Remove the 3 EE’ support mounting bolts on the
pivot holder (3).
6 -
Remove the EE’ support.
- Refitting
Perform the removal steps in reverse order.
Tightening torques:
 Point E’ mounting bolt: 26.5Nm.
 3 pivot holder mounting bolts: 105Nm.
 Point E nut: 105Nm.
Wishbone
- Removal
Operations Photos
1 -
Remove the attachment (1) of the anti-roll bar
at the level of the wishbone.
2 -
Remove the point E nut (2).
3 -
Extract support EE' from the point E ball joint;
a ball joint puller must be used to do this.
4 -
Remove the two wishbone mounting bolts (3)
on the subframe.
5 -
Remove the wishbone.
2
3
1
3
2
1
