10A-25
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
K4M
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
a Remove:

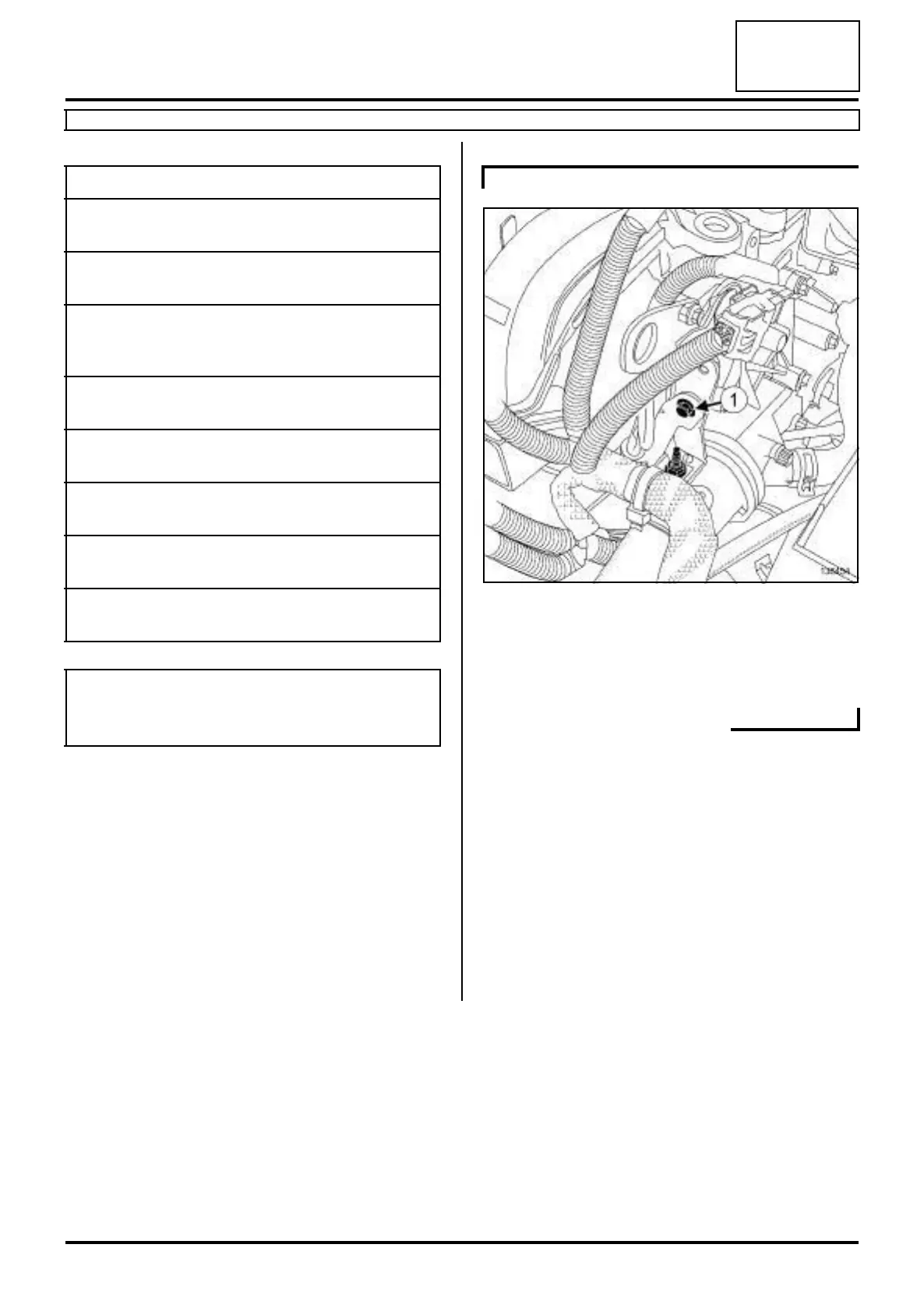

- the dipstick guide bolt (1) from the lifting eye,
- the dipstick guide.
Tightening torquesm
sump bolts on the cylin-
der block
14 N.m
sump bolts on the gear-
box
44 N.m
bolt mounting the multi-
function support on the
sump
25 N.m
bolts 2 and 3 of the
relay bearing
44 N.m
bolt 1 of the relay bea-
ring
44 N.m
bolt 4 of the relay bea-
ring flange
21 N.m
dipstick guide bolt on
the lifting eye
10 N.m
dipstick guide bolts on
the injector holder shim
10 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
