Renault K4M - Page 32

10A-26
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
K4M
10A

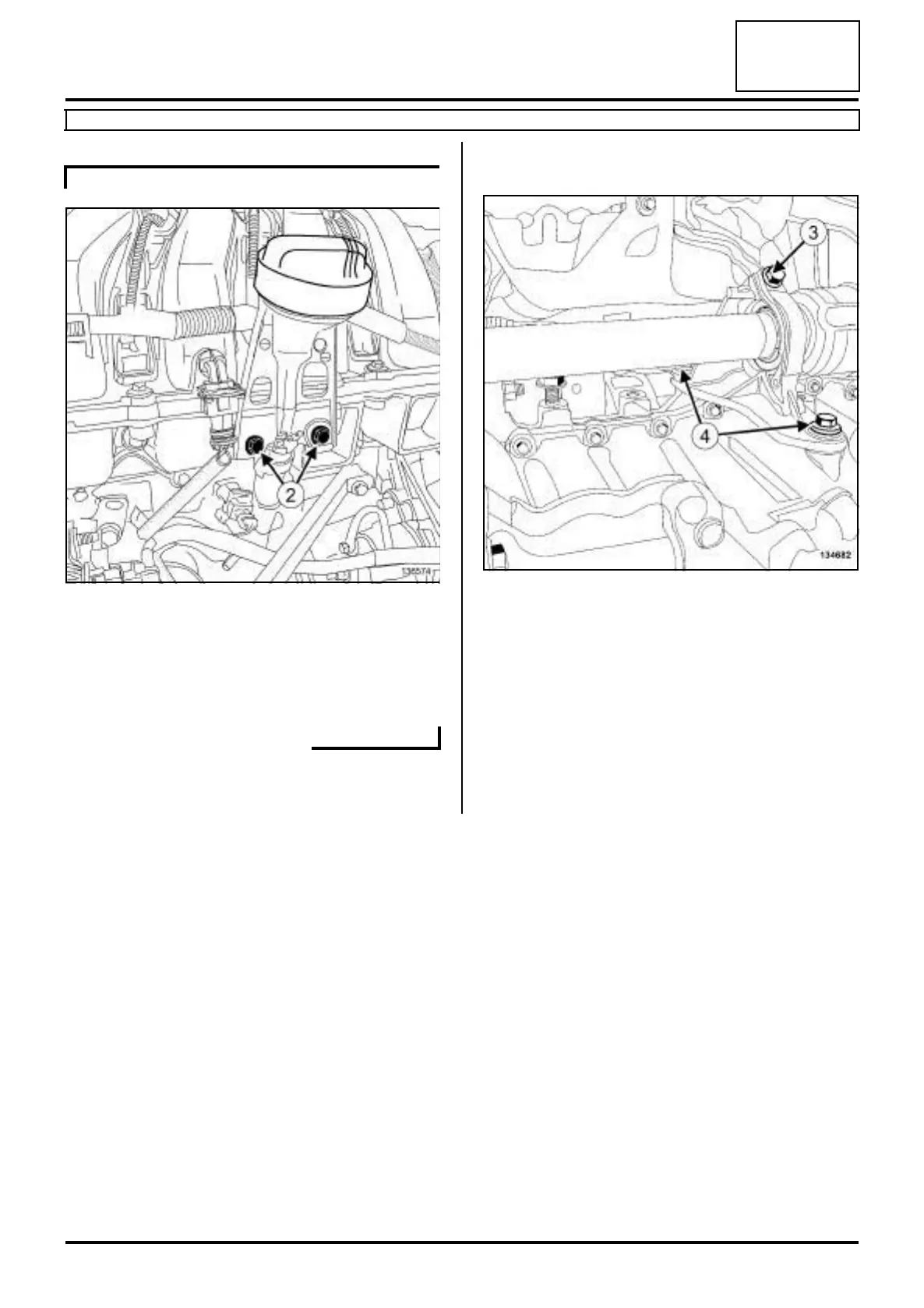

a Remove:
-the dipstick guide bolts (2) from the injector holder
shim,
-the dipstick guide.
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the bolt (3) from the relay bearing flange,
- the bolts (4) from the relay bearing,
- the relay bearing,
- the oil level sensor (see 10A, Engine and cylinder
block assembly, Oil level sensor: Removal - Re-
fitting, page 10A-69) .
K4M, and 858 or 866
136574
134682
