10A-32
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
F4R
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .

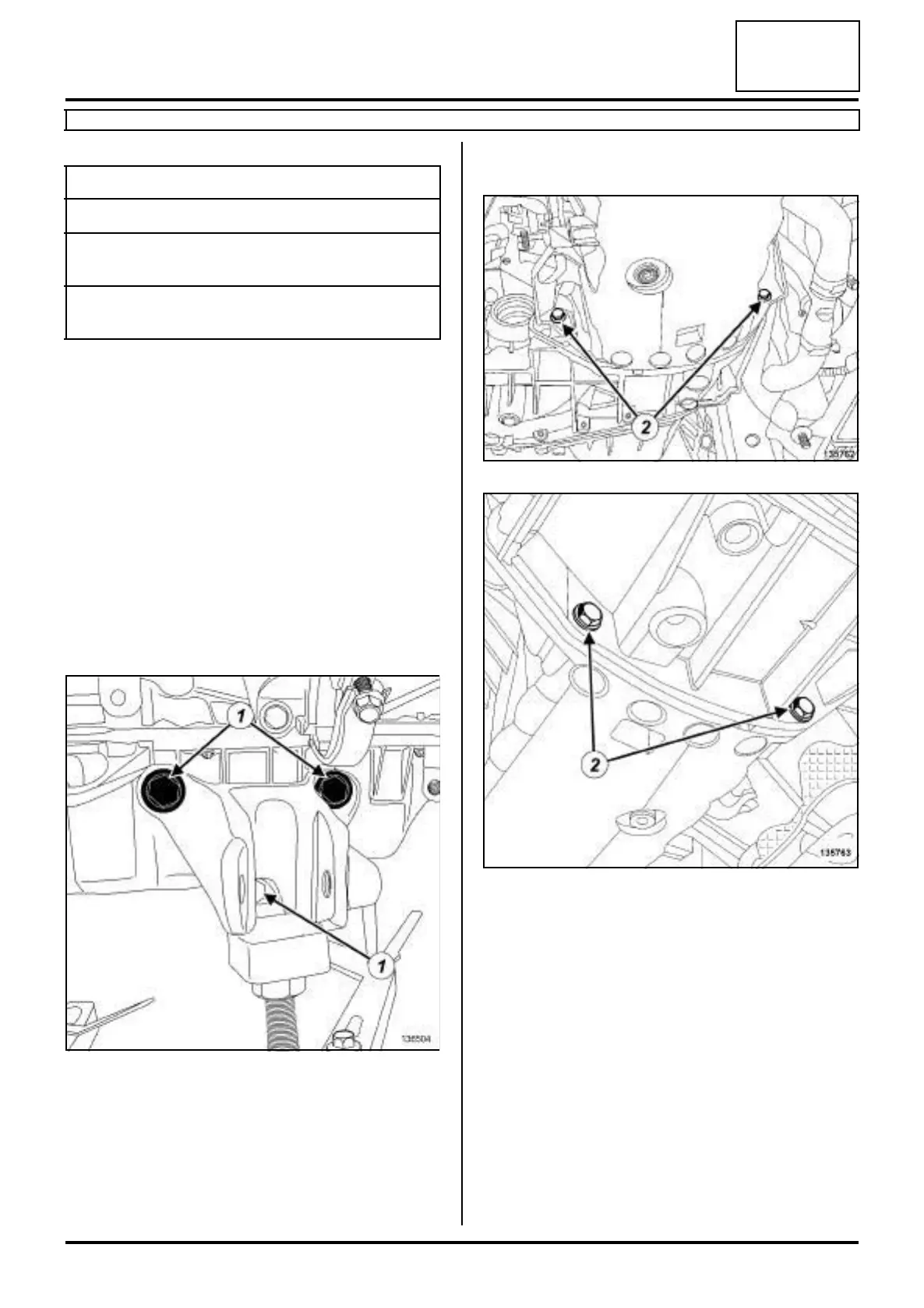

a Remove:
-the lower engine tie-bar support bolts on the sump,
-the lower engine tie-bar support on the sump.
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the bolts (2) from the sump on the manual
gearbox.
Tightening torquesm
sump bolts 15 N.m
sump bolts on the
manual gearbox
44 N.m
lower engine tie-bar
support bolts
62 N.m
136504
135762
135763
