10A-33
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
F4R
10A
a

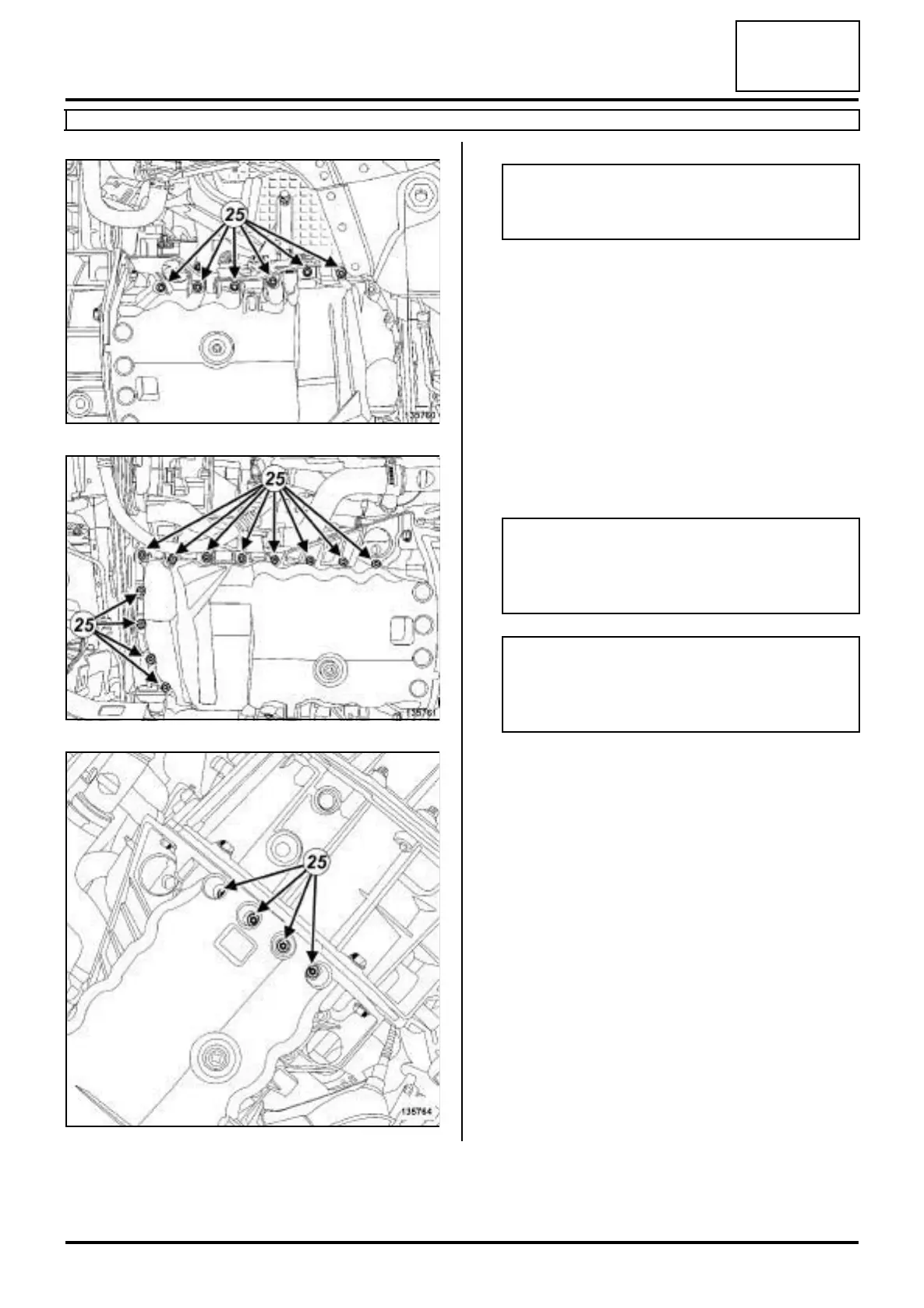

a Remove:
- the sump bolts on the cylinder block,
- the sump,
- the sump seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Engine oil sump
seal (10,03,01,09).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
- the sump joint face if it is to be reused,
- the cylinder block gasket face.
135760
135761
135764
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
