10A-42
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine oil: Draining - Refilling
F4R
10A
I - RECOMMENDATIONS FOR REPAIR
a
II - PARTS AND CONSUMABLES FOR THE REPAIR
a parts always to be replaced: Engine oil sump
drain plug seal (10,03,01,04).
a Consumable:
-Engine oil (see Engine oil: Specifications) (Tech-
nical Note 6013A, 04A, Lubricants).
III - OIL SERVICE
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).

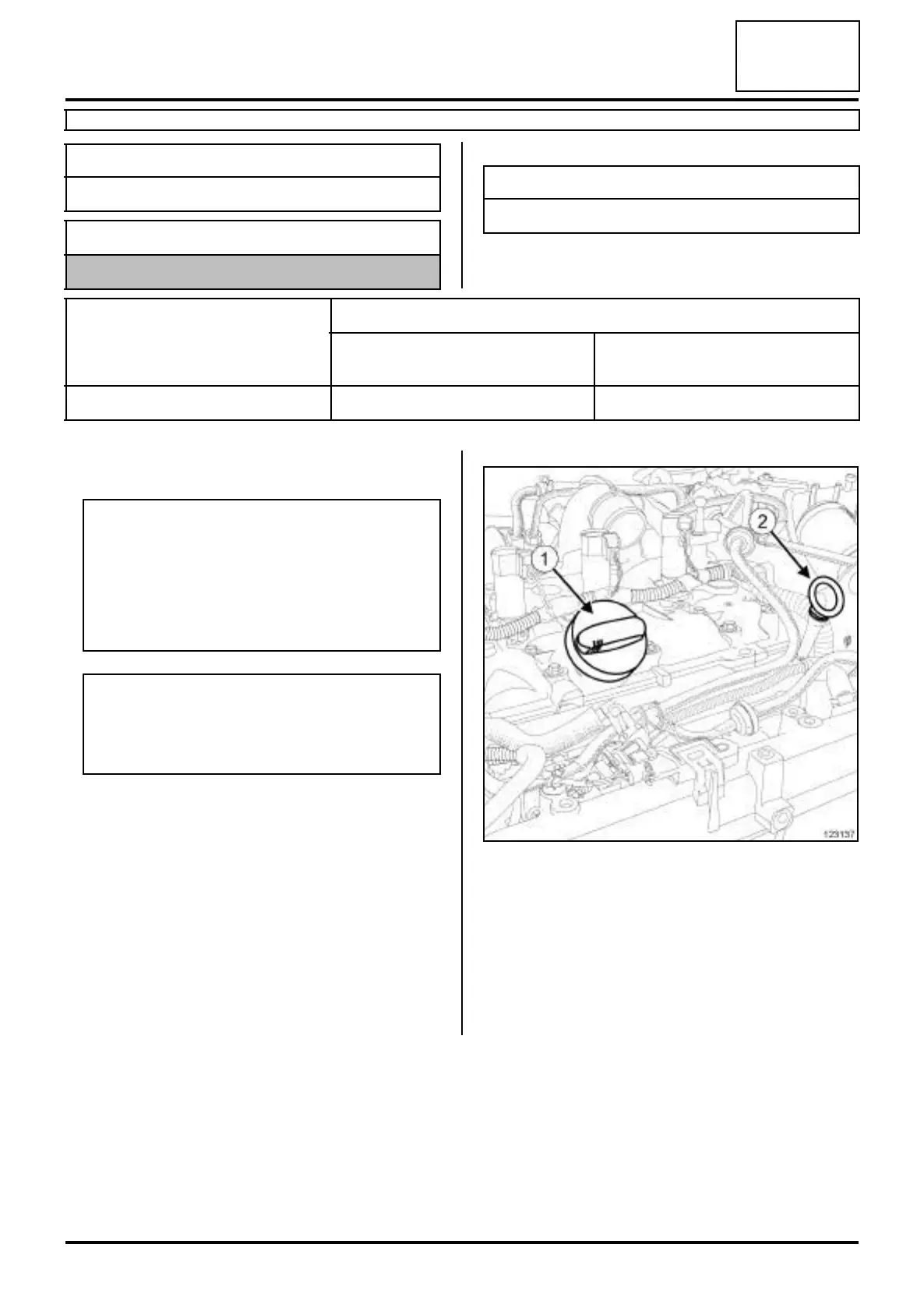

a Remove:
- the engine cover,
- the engine oil filler cap (1) ,
- the dipstick (2) ,
- the engine undertray bolts,
- the engine undertray.
Essential special tooling
Mot. 1018 Sump plug tool.
Essential equipment
oil recovery container
Tightening torquesm
drain plug 20 N.m
Engine
Average oil capacity (adjust using dipstick) (litres)
Draining Oil change with oil filter replace-
ment
F4R 5.25 5.4
WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before
delivering the vehicle to the customer.
Note:
When topping up the engine oil, always leave at
least 10 minutes before checking the level with a
dipstick.
123137
