10A-46
ENGINE AND CYLINDER BLOCK ASSEMBLY
Engine oil: Draining - Refilling
F9Q
10A
I - PARTS AND CONSUMABLES FOR THE REPAIR
a parts always to be replaced: Engine oil sump
drain plug seal (10,03,01,04)
a Consumable:
-engine oil (see Diesel engine oils: Specifica-
tions) (Technical Note 6013A, 04A, Lubricants).
II - OIL SERVICE
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:

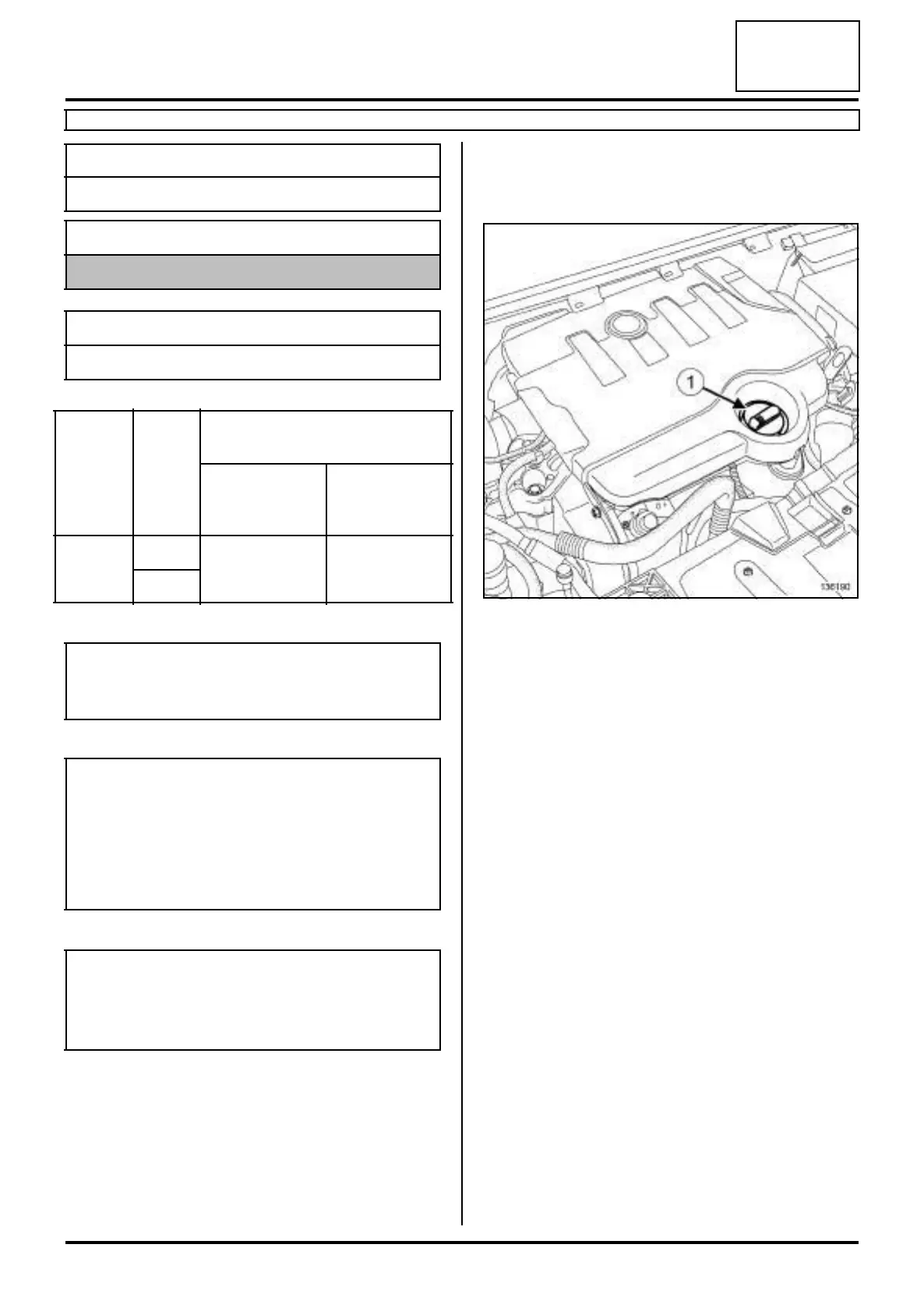

- the « oil filler cap - dipstick » assembly (1) ,
- the engine undertray bolts,
- the engine undertray.
a Place a oil recovery container underneath the en-
gine oil drain plug.
Essential special tooling
Mot. 1018 Sump plug tool.
Essential equipment
oil recovery container
Tightening torquesm
drain plug 20 N.m
Engine Suffix
Average oil capacity (check
and adjust with dipstick) (l)
Oil change
without filter
replacement
Oil change
with filter
replacement
F9Q
870
4.7 5.1
872
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before deli-
vering the vehicle to the customer.
Note:
When topping up the engine oil, always leave at
least 10 minutes before checking the level with a
dipstick.
136190
