13B-88
DIESEL INJECTION
High-pressure pipe between the rail and injector: Removal - Refitting
F9Q
13B
a Clean the nuts of the high pressure pipe(s) between
the injector rail and the diesel fuel injector (see 13B,
Diesel injection, Diesel injection: Precautions for
repair, page 13B-1) .
a Remove:
-from the injector(s), the nut for the high pressure pi-
pe(s) between the injector rail and the diesel fuel
injector using the tool (Mot. 1566),
-from the injector rail, the nut for the high pressure
pipe(s) between the injector rail and the diesel fuel
injector using the tool (Mot. 1566),
-the high pressure pipe(s) between the injector rail
and the diesel injector.
a Fit blanking plugs on:
-the opening(s) of the diesel fuel injector(s),
-the opening(s) on the injector rail.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: High-pressure pipe
between the rail and injector (11,05,03,01).
a
II - REFITTING OPERATION FOR PART
CONCERNED
a Remove the blanking plugs on:
- the opening(s) of the diesel fuel injector(s),
- the opening(s) on the injector rail.

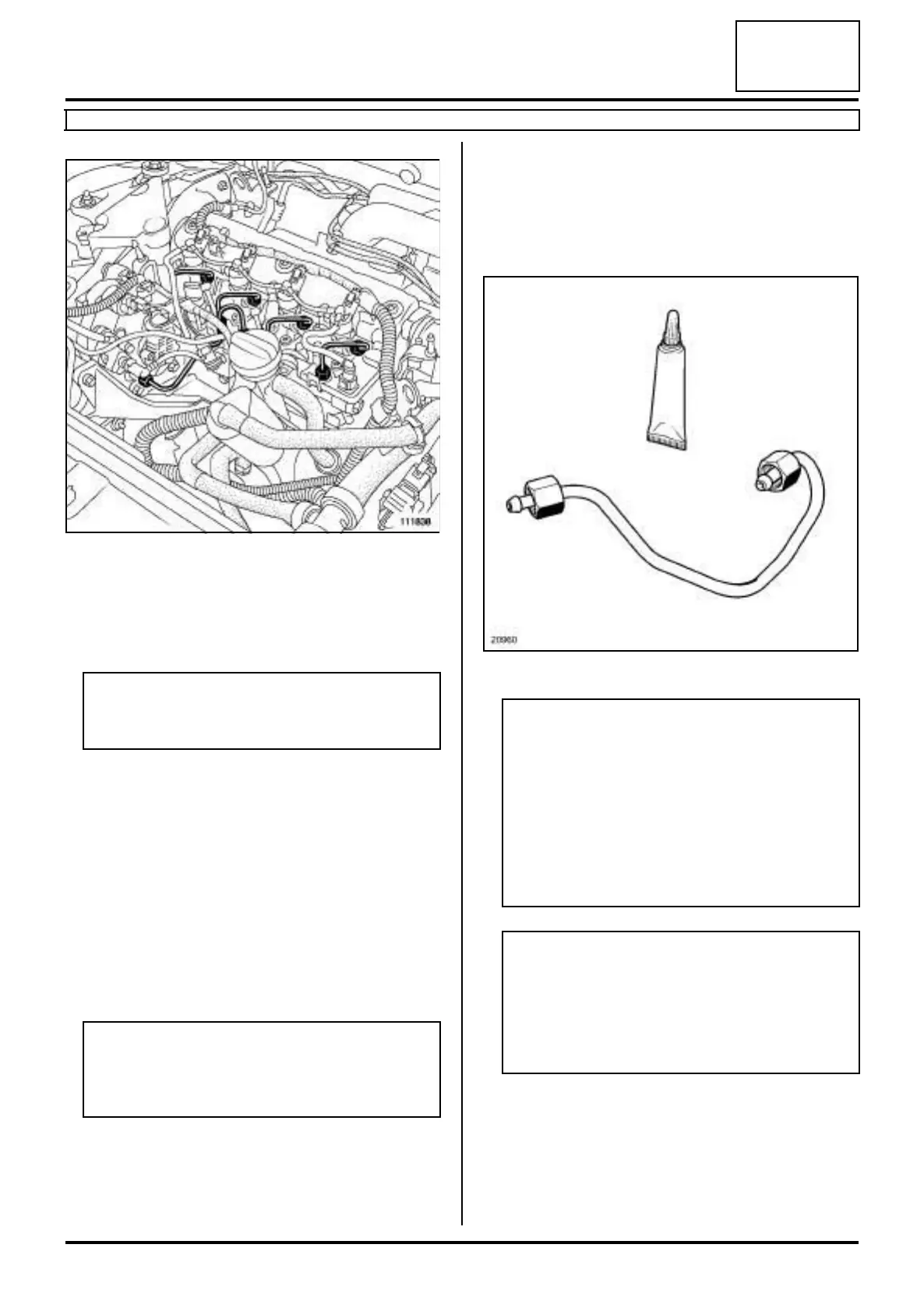

111838
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
WARNING
To prevent impurities from entering the circuit,
place protective plugs on all fuel circuit compo-
nents exposed to the open air.
20960
WARNING
Before fitting a new high pressure pipe, lightly
lubricate the nut threads with the oil from the
applicator provided in the new parts kit.
Be careful not to allow oil into the high pressure
pipe.
Do not lubricate high pressure pipes supplied
without an applicator, as these high pressure
pipes are self-lubricating.
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
