ENGINE AND CYLINDER BLOCK ASSEMBLY
Exchanger: Removal - Refitting
F9Q
10A
a Remove:

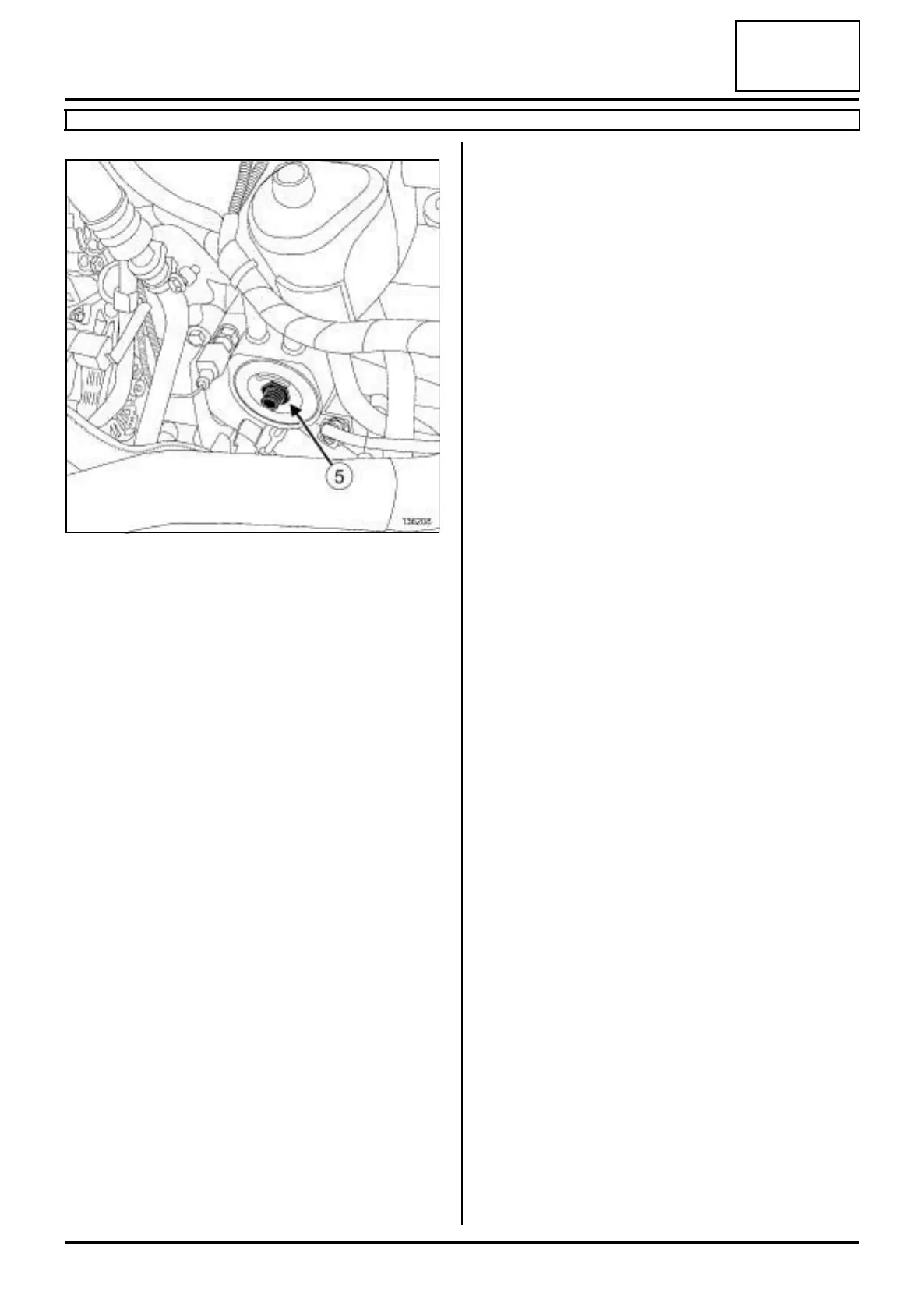

-the nipple (5) from the oil-water heat exchanger,
-the oil-water heat exchanger,
-the oil-water heat exchanger seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
-the oil-water heat exchanger seal mating faces if it
is to be reused,
-the cylinder block gasket face.
a parts always to be replaced: coolant-engine oil
heat exchanger seal on the cylinder block (10,05,
05,12).
parts always to be replaced: Intercooler air out-
let pipe (10,09,04,03).
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new seal to the oil-water heat exchanger,
-the oil-water heat exchanger.
a Torque tighten the oil-water heat exchanger nip-
ple (44 N.m).
a Connect the oil-water heat exchanger hoses.
a Fit the hose clips on the oil-water heat exchanger
using the tool (Mot. 1448).
a Remove the tools (Ms. 583) from the oil-water heat
exchanger hoses.
a Refit the oil filter (see 10A, Engine and cylinder
block assembly, Oil filter: Removal - Refitting,
page 10A-48) .
III - FINAL OPERATION
a Refit a new intercooler air outlet pipe (see 12B, Tur-
bocharging, Intercooler air outlet pipe: Removal
- Refitting, page 12B-56) .
a Fit the front end panel.
a Refit:
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
- the bolts for the engine wiring harness channel,
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
- the frontal impact cross member (see Front im-
pact cross member: Removal - Refitting) (41A,
Front lower structure),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray,
- the engine cover.
a Bleed the cooling system (see 19A, Cooling, Coo-
ling circuit: Draining - Refilling, page 19A-17) .
