10A-62
ENGINE AND CYLINDER BLOCK ASSEMBLY
Exchanger: Removal - Refitting
F9Q
10A

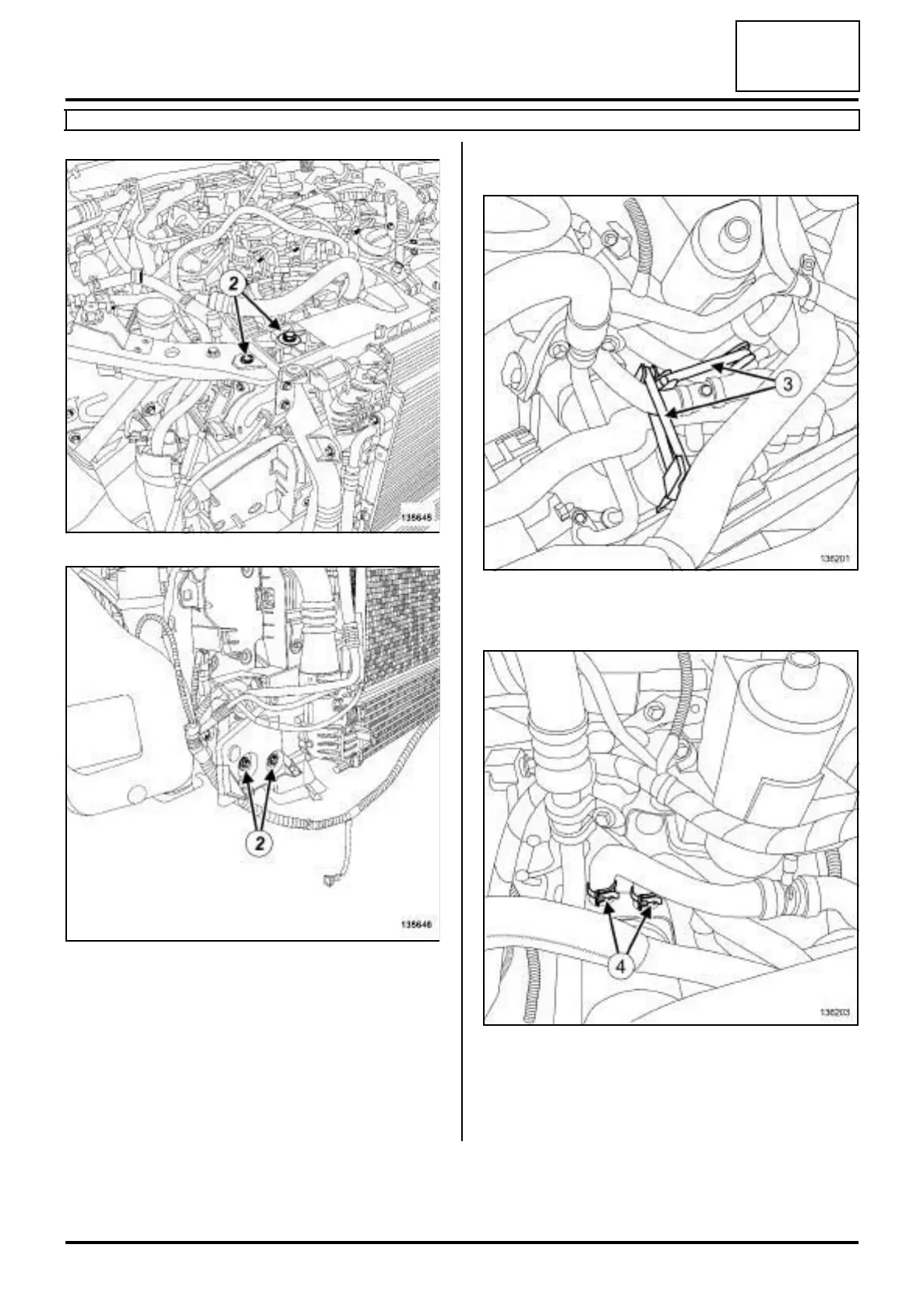

a Remove the front end panel bolts (2) .
a Tilt the front panel.
a Remove the intercooler outlet air outlet pipe (see
12B, Turbocharging, Intercooler air outlet pipe:
Removal - Refitting, page 12B-56) .
a Remove the oil filter (see 10A, Engine and cylinder
block assembly, Oil filter: Removal - Refitting,
page 10A-48) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Fit the tools (3) (Ms. 583) onto the intercooler ho-
ses.
a Separate the clips (4) from the intercooler hoses
using the tool (Mot. 1448).
a Disconnect the intercooler hoses.
135645
135646
136201
136203
