10A-61
ENGINE AND CYLINDER BLOCK ASSEMBLY
Exchanger: Removal - Refitting
F9Q
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the frontal impact cross member (see Front im-
pact cross member: Removal - Refitting) (41A,
Front lower structure),
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports(42A, Front upper struc-
ture).
a Remove:

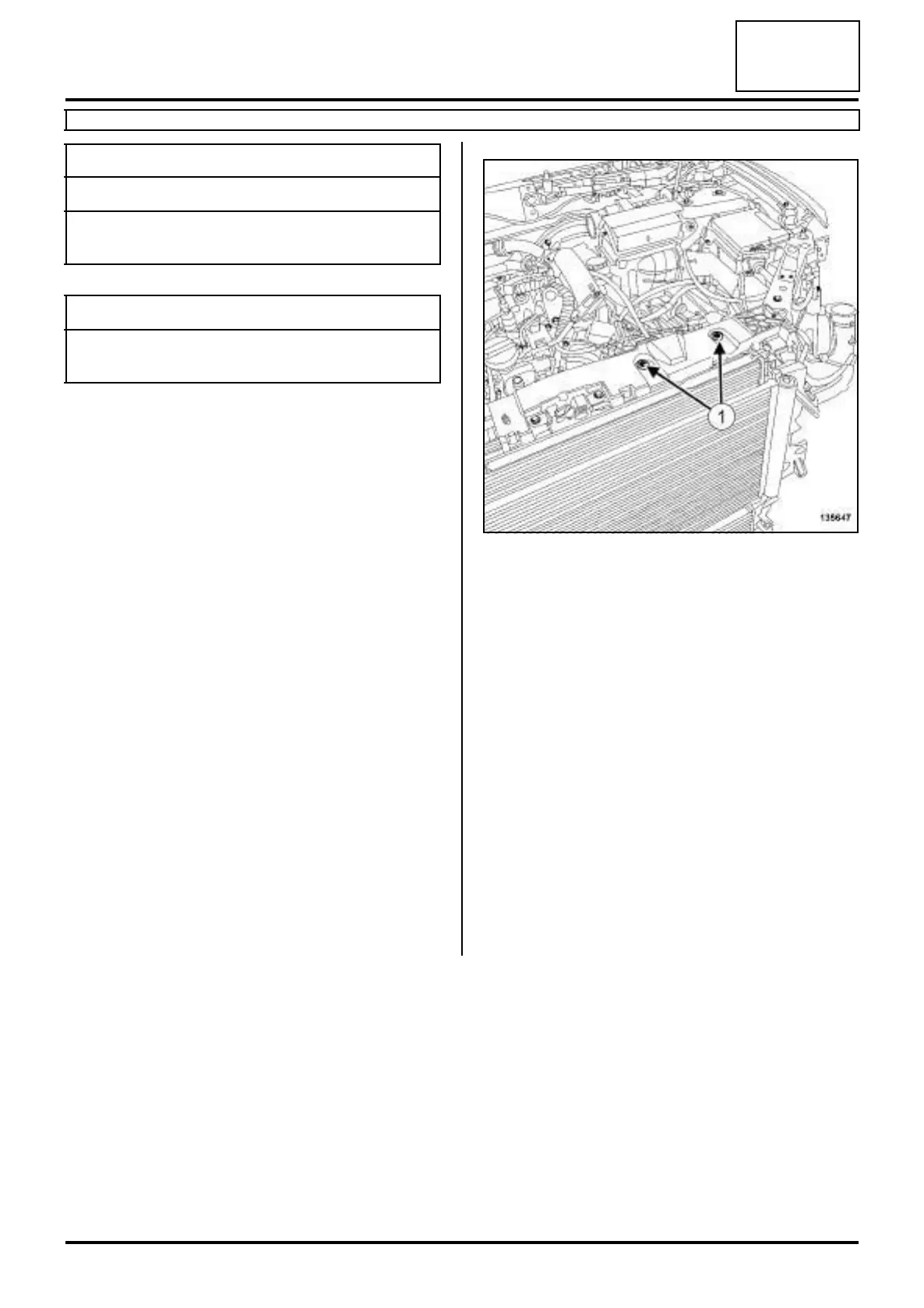

- the bolts of the engine wiring channel (1) ,
-the bonnet catch (see Bonnet latch: Removal -
Refitting)
Essential special tooling
Ms. 583 Hose clamp pliers.
Mot. 1448 Long nose pliers for hose
clips.
Tightening torquesm
oil-water heat exchan-
ger nipple
44 N.m
135647
