19A-62
COOLING
Plenum chamber: Removal - Refitting
K4M
19A
a Disconnect the TDC sensor connector.

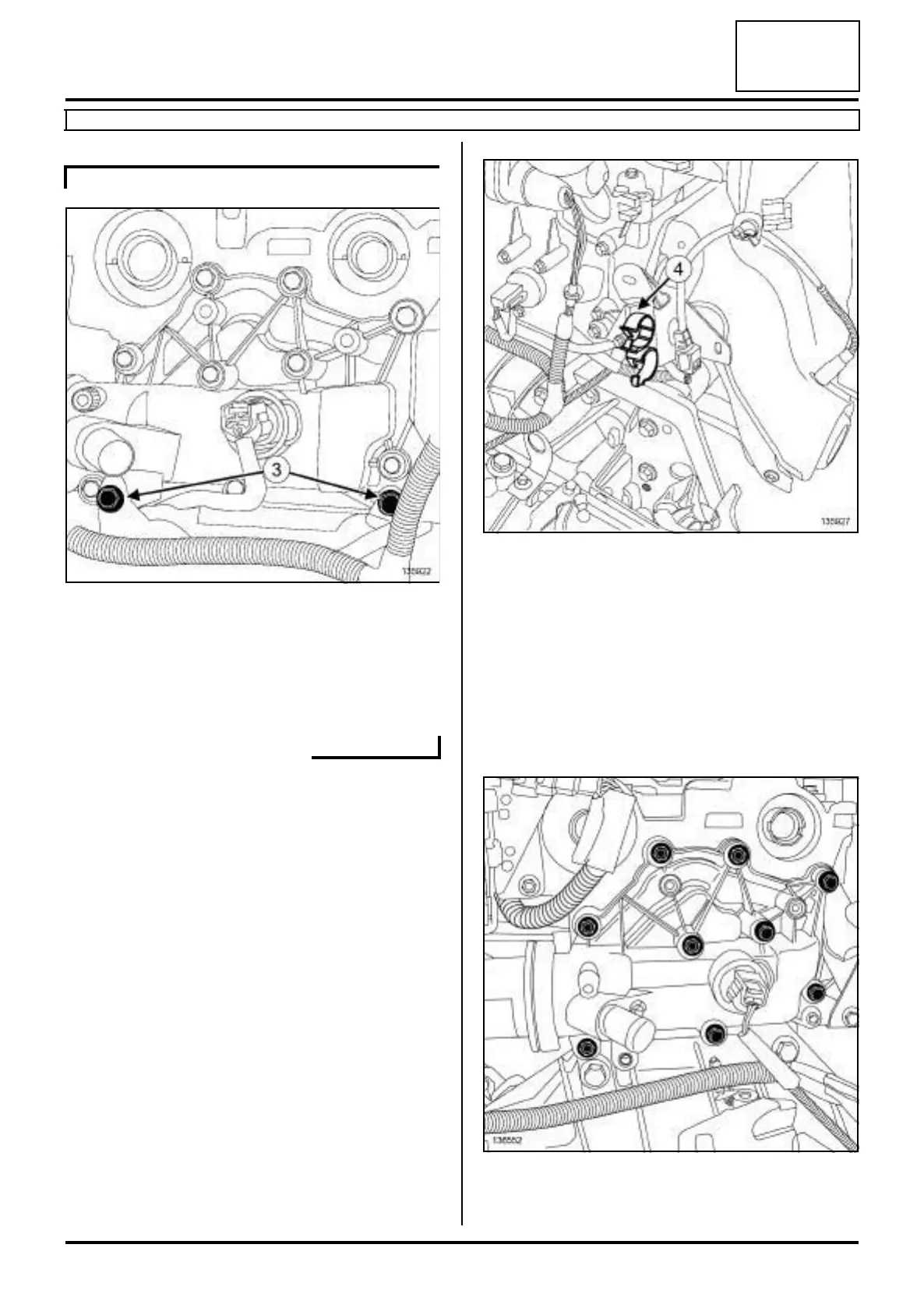

a Remove:
-the bolts (3) of the engine wiring channel,
-the engine harness channel.
a Unclip the heater matrix hoses from the retaining
bracket (4) .
a Remove:
- the heater matrix hose retaining bracket bolt,
- the heater matrix hose retaining bracket.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the coolant outlet unit bolts,
K4M, and 848
135922
135927
136552
