19B-15
EXHAUST
Exhaust: Precautions for repair
19B

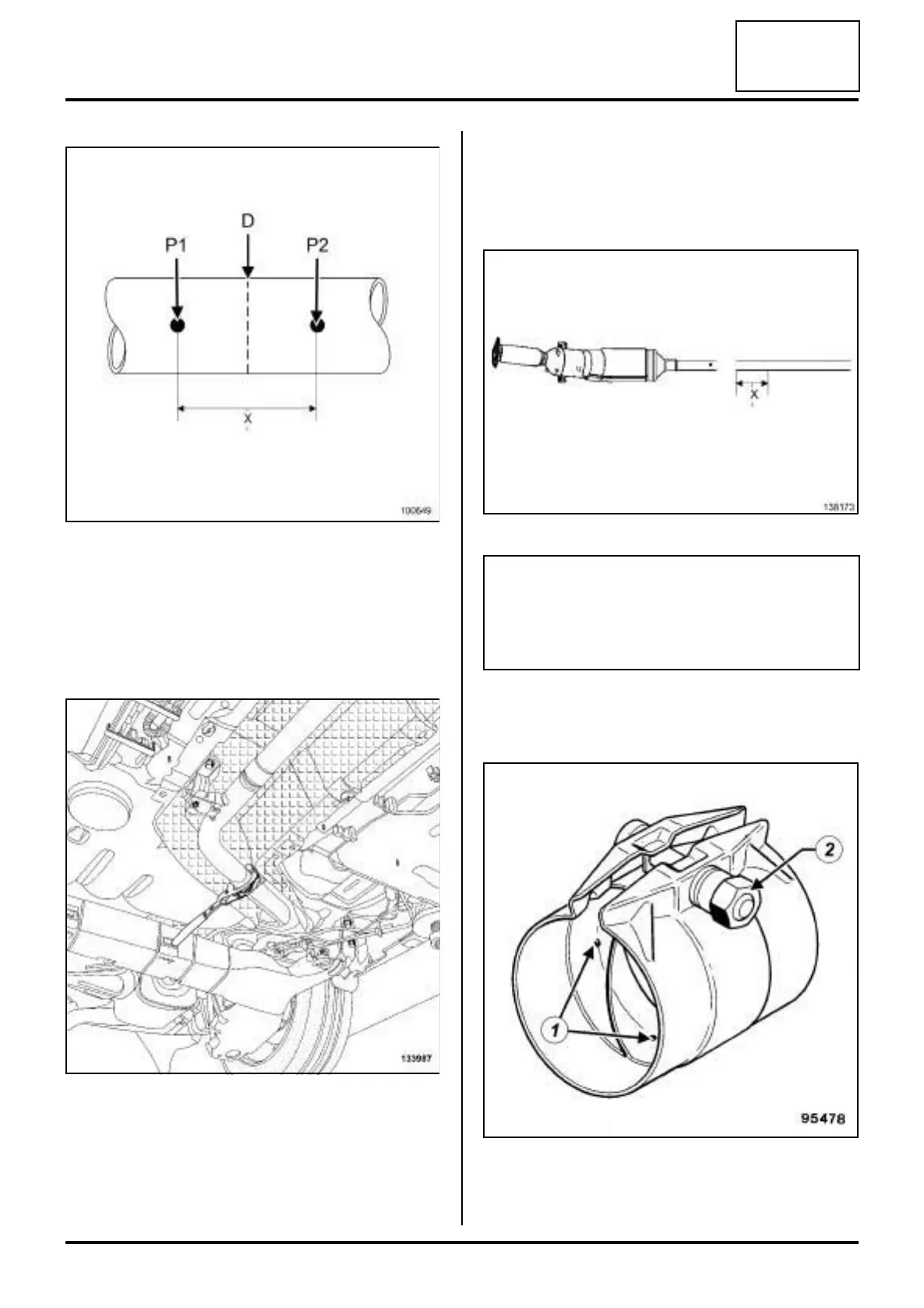

Before cutting the pipe, draw a line (D) between the
marks (P1) and (P2) .
The distance (X) between the two marks is 80 mm.
3 - Using tool Mot. 119-01
Position the tool on the pipe.
Tighten the two bolts on the cutting tool so that it grips
the exhaust pipe.
Turn the cutting tool with the handle while gripping the
pipe.
As the cut is made, continue to tighten the two bolts of
the tool (do not overtighten the tool against the pipe, to
prevent deformation during the cutting operation).
4 - Positioning of the spare part
5 - Fitting the After-Sales sleeve
Exhaust sleeve with one bolt
100649
133987
138173
WARNING
When replacing the intermediate section of the
exhaust pipe (pipe on diesel versions, expansion
chamber on petrol versions), shorten the spare part
by 60 mm.
95478
