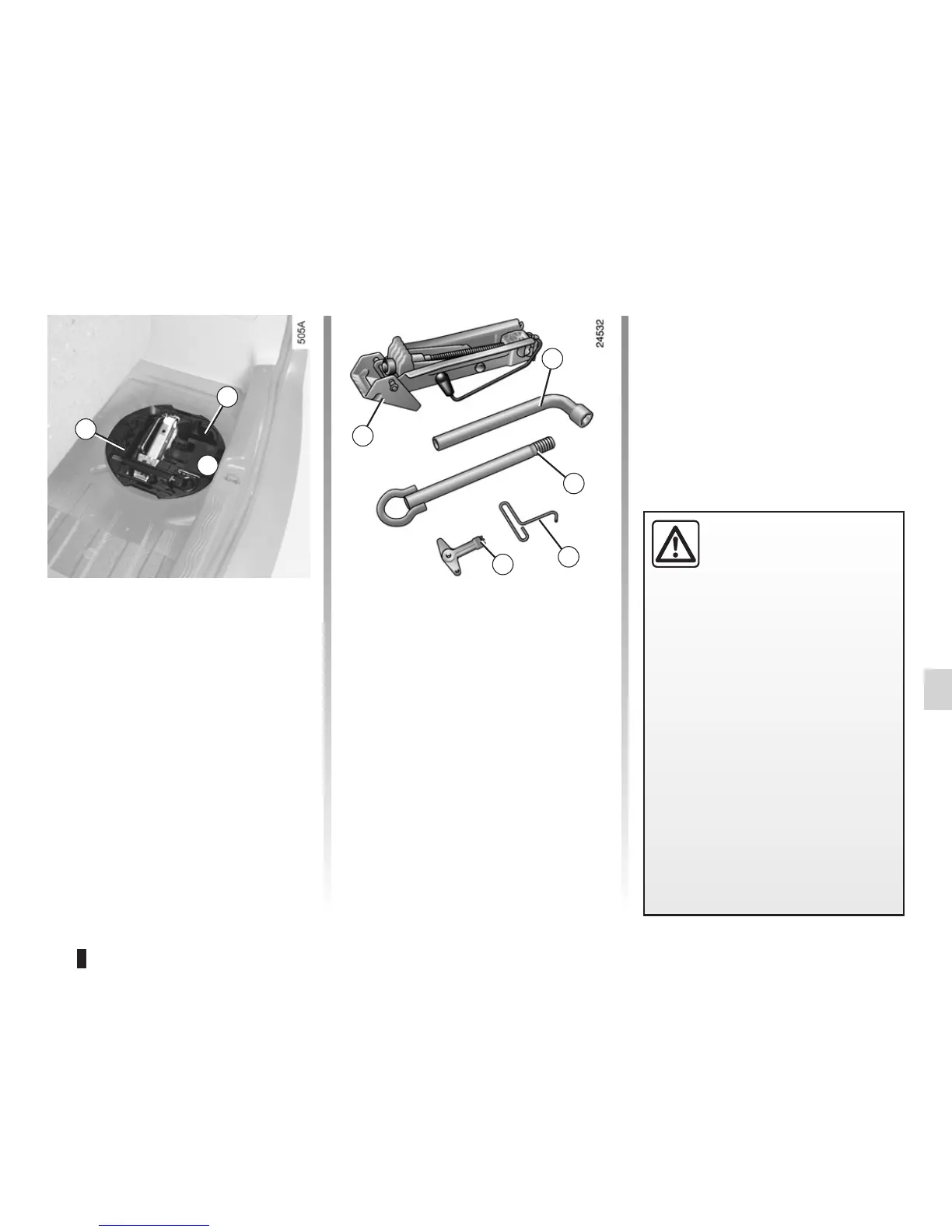

TOOL KIT
Tool kit A is located in the luggage com-
partment.
To access the tools, lift the luggage
compartment carpet, lift the cover and
remove it.
Take out the tool kit, lifting it at both
ends.
To return it, proceed in the reverse
order to removal.
The tools included in the tool kit depend
on the vehicle.
Storage compartment 1
This is for storing a box of bulbs.
Storage compartment 2
This is for storing a lock nut.
Wheelbrace 3
This is used to tighten or release the
wheel bolts.
Towing hitch 4
Refer to the information on the “Towing:
breakdown” in Section 5.
Hubcap tool 5 or 6
This tool is used to remove the wheel
trims.
Jack 7
When replacing the jack, fold it up com-
pletely and replace it in its position.
Do not leave the tools un-
secured inside the vehicle
as they may come loose
under braking. After use,
check that all the tools are correctly
clipped into the tool kit, then position
it correctly in its housing: there is a
risk of injury.
If wheel bolts are supplied in the
tool kit, only use these bolts for the
emergency spare wheel: refer to the
label affixed to the emergency spare
wheel.
The jack is designed for wheel
changing purposes only. Under no
circumstances should it be used for
carrying out repairs underneath the
vehicle or to gain access to the un-
derside of the vehicle.
1
A
2
7
3
4
5
6
