Renesas RA Family EK-RA4E2 v1 – User's Manual
R20UT5175EG0300 Rev. 3.00 Page 13 of 30
Feb.27.23
5. System Control and Ecosystem Access Area
The following figure shows the System Control and Ecosystem Access area on the EK-RA4E2 board.
Subsequent sections detail the features and functionality provided in this area.

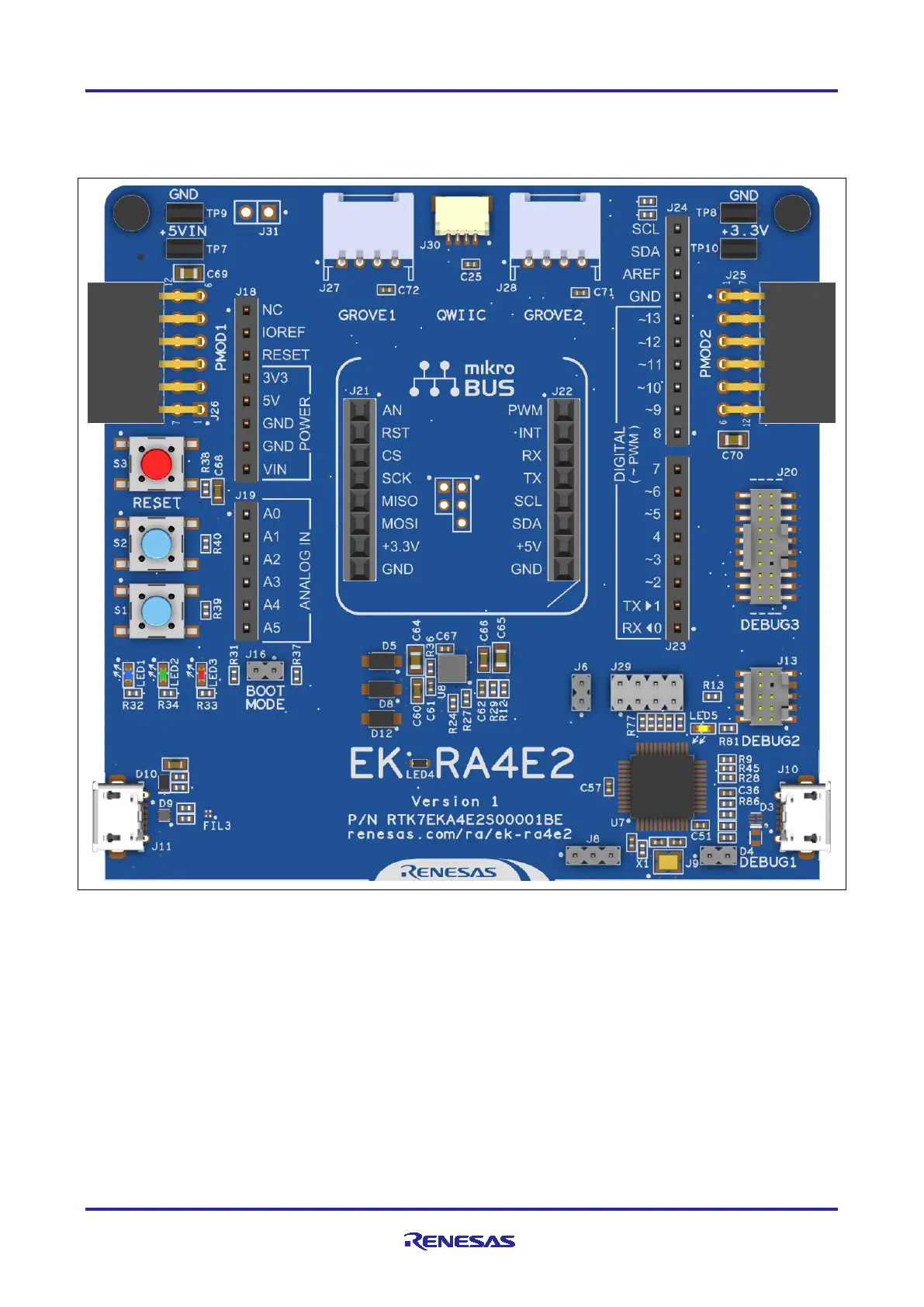

Figure 7. System Control and Ecosystem Access Area
