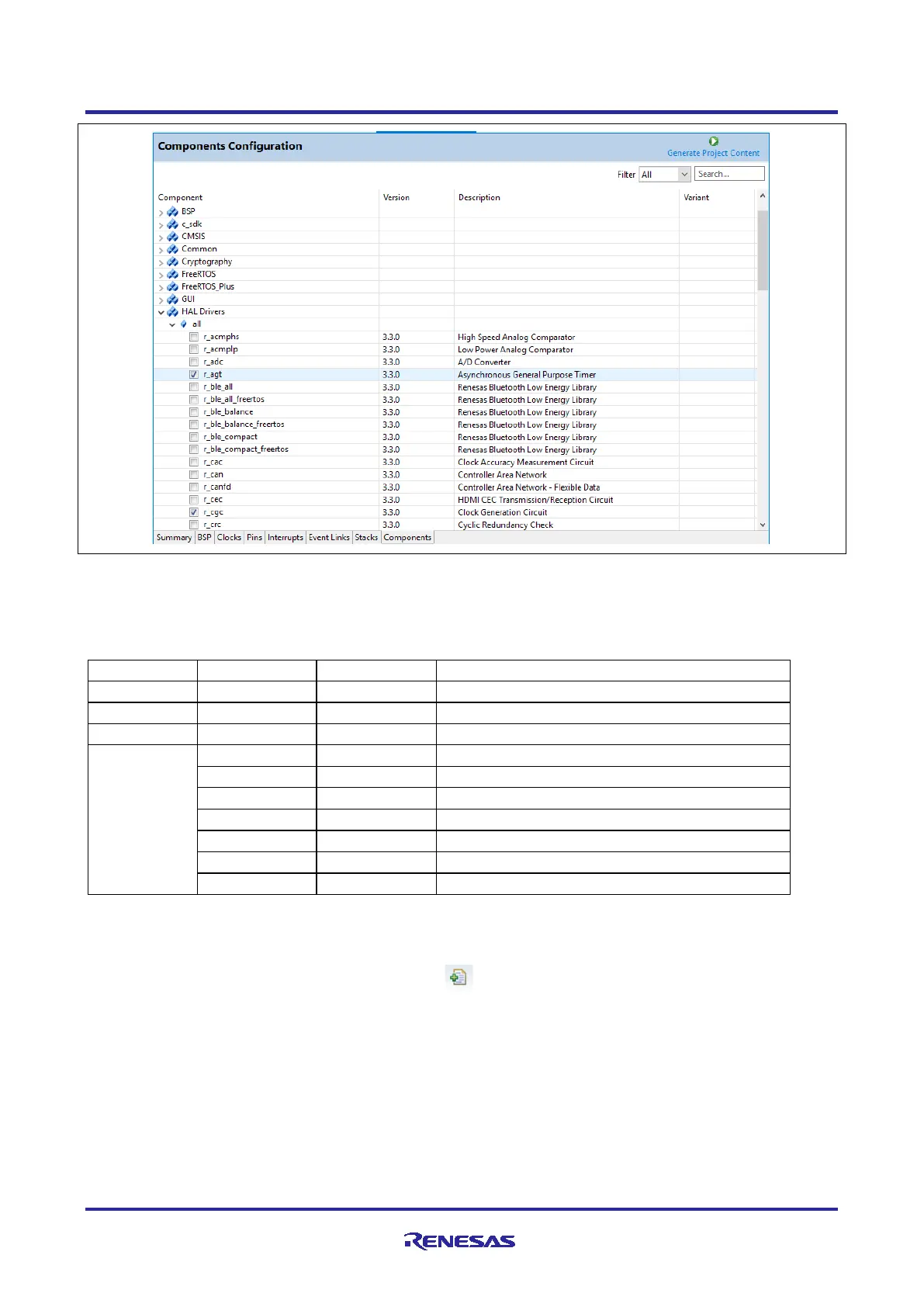

Figure 5. Components Tab Categories
You may expand any of the categories by clicking the arrow to the left of the category name. The following
table highlights the selections used for the LPM applications.
Table 4. Components Used in the LPM Applications
Category
Component
Version
Description
BSP
ra6m3_ek
3.3.0
RA6M3-EK Board Support Package Files
CMSIS
CoreM
5.7.0+fsp.3.3.0
Arm CMSIS Version5 - Core (M)
Common
fsp_common
3.3.0
Board Support Package Common Files
HAL Drivers
r_cgc
3.3.0
Clock Generation Circuit
r_ioport
3.3.0
I/O Port
r_lpm
3.3.0
Low Power Modes
r_icu
3.3.0
External Interrupt
r_gpt
3.3.0
General PWM Timer
r_agt
3.3.0
Asynchronous General-Purpose Timer
r_rtc
3.3.0
Real Time Clock
3.2 Stacks Tab
The Stacks tab is where you can add and configure the threads that the FSP automatically creates for your
application. You define a new thread by clicking the button and then entering a unique name for your
new thread. Once you add a new thread, you must define the modules that the thread will use along with any
thread objects that will be used by your application thread.
As an example, if you click the Stacks tab and then single click on the HAL/Common thread, you should
see something like the screen capture shown in Figure 6. This shows that the application requires multiple
drivers. For example, the r_lpm driver is the driver for Low Power Modes of a Renesas RA MCU. The LPM
applications do not use RTOS, hence there is only one HAL/Common thread is available in this type of
application.
