RZ/A2M SUB Board RTK79210XXB00000BE 2. Function specifications
R20UT4398EJ0100 Rev.1.00 2-37
2018.10.11

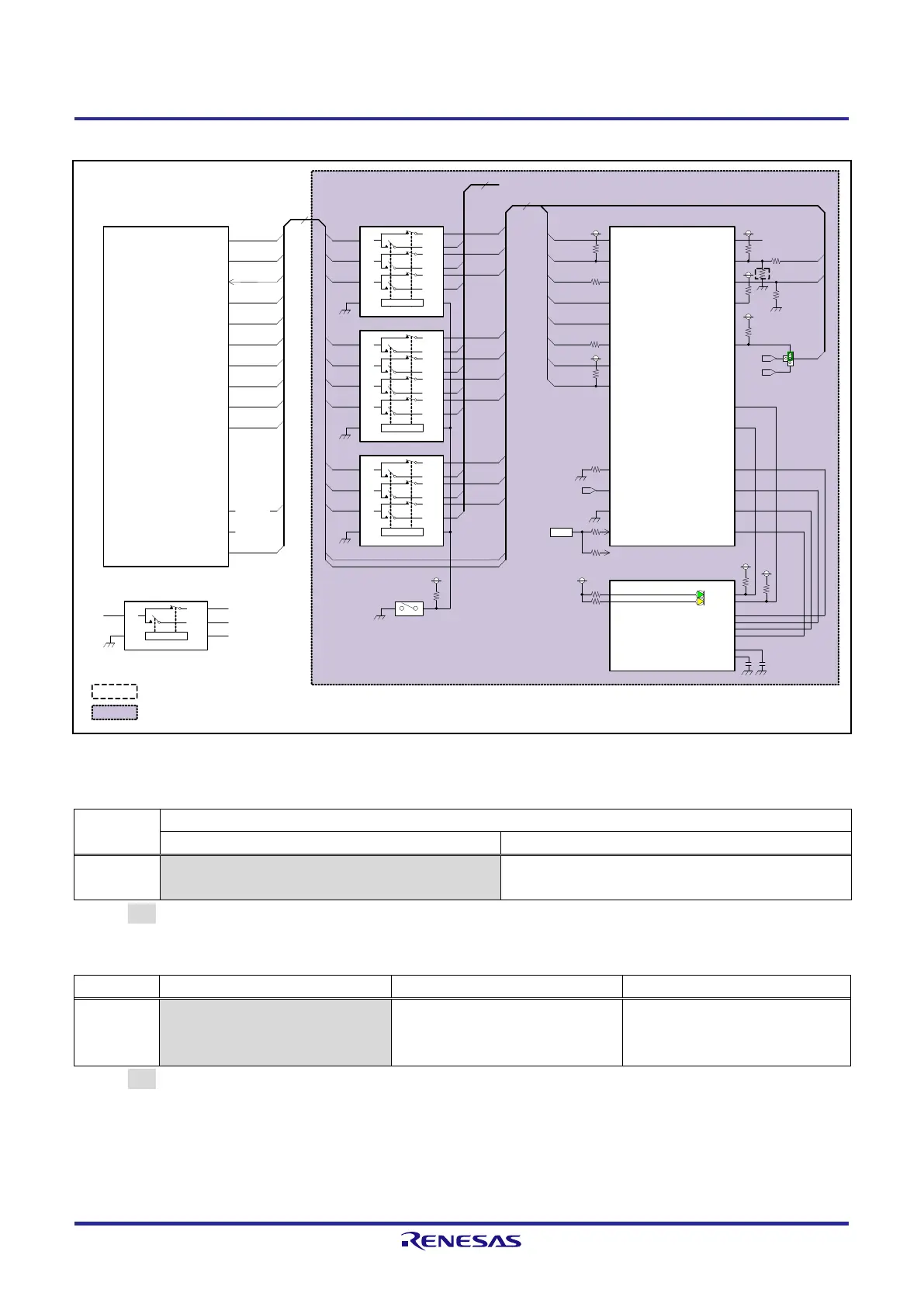

Figure 2.13.1 LAN Interface (Channel 0) Block Diagram
Table 2.13.2 Function Setting Table of DIP Switch SW6-4 for System Setting
DIP
switch
Function
ON
OFF
SW6-4
P6_[3 :0] and PE_[6 :0] are used as Ethernet PHY1
control pins.
P6_[3 :0] and PE_[6 :0] are used as CEU pins.
(default setting)
[Note] indicates setting functions.
Table 2.13.3 Function Setting Table of Jumper JP1
Jumper
1-2
2-3
2-JP2
JP1
PJ_1 is used as Ethernet PHY1
signal interrupt pin.
PJ_1 is used as Ethernet PHY2
signal interrupt pin.
PJ_1 is used as IRQ0 switch
(SW3) interrupt pin.
(default setting)
[Note] indicates setting functions.
PE_1
12
P6_1
PE_0
PE_6
P6_3
PE_3
PE_4
PE_2
PE_5
P6_2
Ether1 / CEUU13
RXER
RXD0
RXD1
REFCLK
Ether1 / CEUU16
MUXOE# S
3A
3B1
3B2
2A
2B1
2B2
1A
1B1
1B2
MUXOE# S
4A
4B1
4B2
3A
3B1
3B2
2A
2B1
2B2
1A
1B1
1B2
Ether1 / CEUU18
MUXOE# S
3A
3B1
3B2
2A
2B1
2B2
1A
1B1
1B2
ON(L):A=B1, OFF(H):A=B2
TXD1
TXD0
TXDEN
12
10
To CEU I/F
P6_3
P6_2
P6_1
PE_3
PE_1
PE_2
PE_0
PE_4
PE_5
CRSDV
MDC
MDIO
MDC
TXD[1:0]
TXDEN
REFCLK
RXD1
RXER
CRSDV
RES#
3.3V
INT#
INT#
A
RXD0
3.3V
NC
3.3V
CLK
50MHz
(X4)
To EthernetPHY2
3.3V
DIP
SW6-4
RJ45CN8
3.3V
NC
3.3V
WOL#
RZ/A2M (U1)
PE_1 / ET0_RXD0/RMII0_RXD0 /
VIO_D7
PE_2 / ET0_RXD1/RMII0_RXD1 /
VIO_D6
PE_3 / ET0_RXER/RMII0_RXER /
VIO_D5
PE_4 / ET0_CRS/RMII0_CRSDV /
VIO_D4
PE_5 / ET0_MDC / VIO_D3
PE_6 / ET0_MDIO / VIO_D2
PE_0 / ET0_RXCLK/REF50CK0 /
VIO_FLD
P6_3 / ET0_TXD1/RMII0_TXD1 /
VIO_HD
P6_2 / ET0_TXD0/RMII0_TXD0 /
VIO_VD
P6_1 / ET0_TXEN/RMII0_TXDEN /
VIO_CLK
PL_0 / MD_CLKS / IRQ4
PJ_1 / IRQ0 DSTBY release
WOL#
ON
WOL#
IRQ0
WOL2
TD+
TD-
RD+
RD-
CT1
CT2
LED-G
LED-Y
EthernetPHY1U27
MDC
MDIO
MDI+[0]
MDI-[0]
Transmit output
Receive input
MDI+[1]
MDI-[1]
TXD[1:0]
RXD[1]
TXC
TXEN
CRS_DV
RXER / FXEN
LED0 / PHYAD[0]
INTB
LED1 / PHYAD[1]
RXD[0]
LI/O/PD (1:Fiber, 0:UTP)
LI/PU
RXD[3] / CLK_CTL
LI/O/PD (1:REFCLK input, 0:output)
LI/PD
LI/O/PD (1:WOL, 0:LED)
RXDV
LI/O/PD (1:RMII, 0:MII)
PHYRSTB
CKXTAL1
CKXTAL2
RXD[2]
PMEB
TXD[3:2]
COL
RXC
TXER
IO/PD
I/PU
I/PD
I/PD
IO/PU
O/PD
O/PD
O/OD
I/PD
O/PD
I/PD
O/PD
O/PD
RSET
3.3V
1
3
PE_6
MDIO
3.3V
3.3V
Note: Red text indicates a function used.
Indicates a function not implemented.
Indicates a SUB board.
JP1
JP2
2.49k±1%
PD_0
IRQ input # / system
setting selection
C
MUXOE# S
1A
1B1
1B2
C
L:A=B1, H:A=B2
IRQ input /
System settings (U6)
A
B
INT#
B
To CPU board SW1
Low
