Renesas Starter Kit+ for RZ/T2M 5. User Circuitry
R20UT4939EG0100 Rev. 1.00 Page 21 of 87
Apr 20, 2022
5.7 Grove
®
The RSK+ board is equipped with connectors for Grove
®
interface. Please connect the Grove
®
module that is
compatible with connector.
The Grove
®
compatible headers use an I
2
C interface and an analog interface. Figure 5-2 below shows
Grove
®
Compatible Header Pin Numbering. Connection information for the Grove
®
Compatible header is
provided in Table 5-7 and Table 5-8 below.
Pin 1

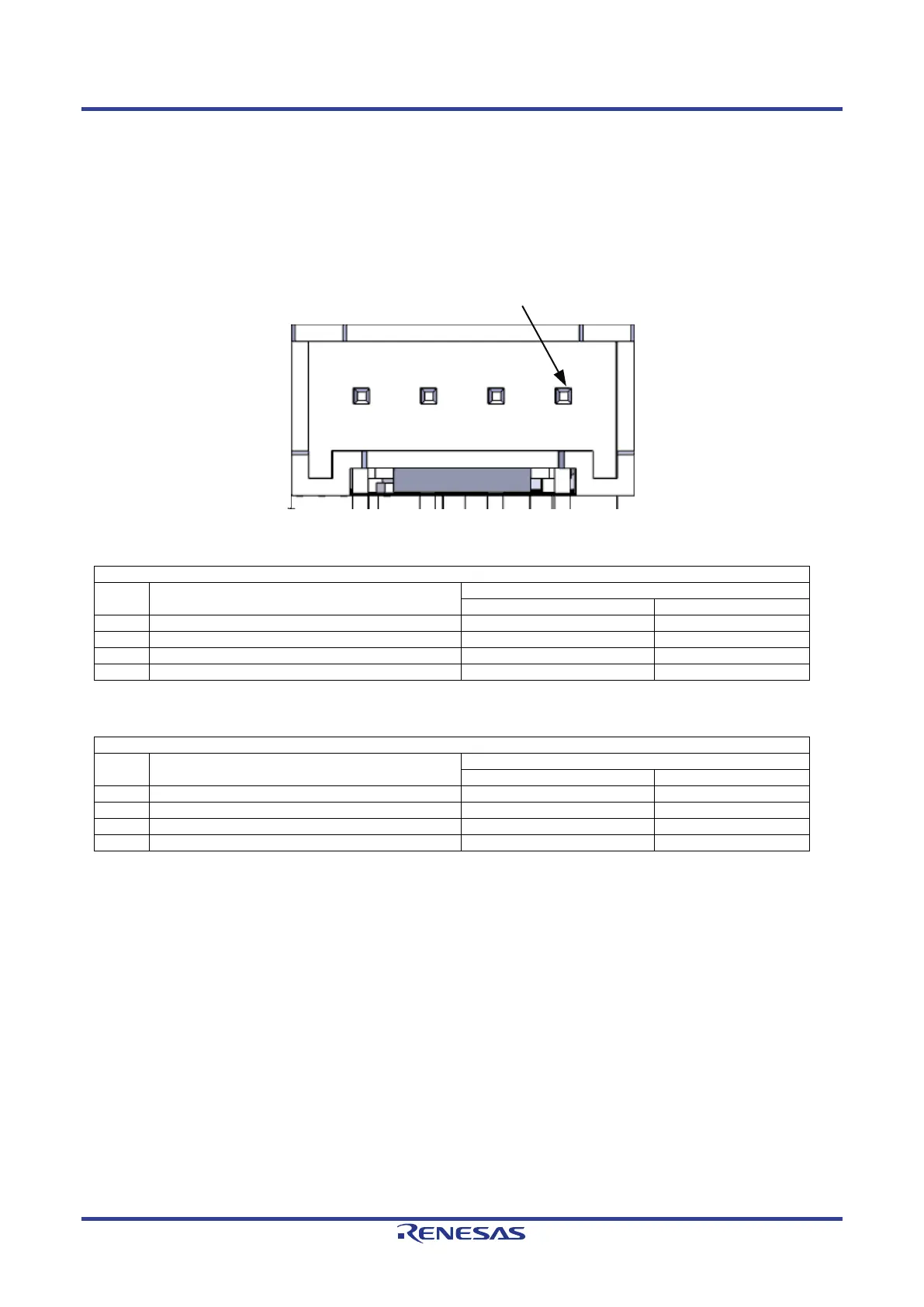

Figure 5-2: Grove
®
Compatible Header Pin Numbering
Table 5-7: Grove
®
Header (J27) Connections
Grove
®
Compatible Header Connections
Pin
Circuit Net Name
MPU
Port
Pin
1
I2C_SCL_A
P22_6
E7
2
I2C_SDA_A
P22_7
C6
3
3.3V
-
-
4
GROUND
-
-
Table 5-8: Grove
®
Header (J28) Connections
Grove
®
Compatible Header Connections
Pin
Circuit Net Name
MPU
Port
Pin
1
ADC_AN101
AN101
B16
2
ADC_AN102
AN102
E13
3
3.3V
-
-
4
GROUND
-
-
