Renishaw NC4 Installation And Maintenance Guide

28 Installation – separate system
3. Using the air regulator installed earlier,
purge all supplied air pipes to remove any
debris.
4. Fit the Ø3 mm air pipe to the air inlet of NC4
unit. Fit the 3 mm-to-4 mm straight adaptor
pneumatic fitting and blanking plug to the
free end of the Ø3 mm air pipe (refer to the
figure on page 26).
5. Remove the two screws that secure
mounting plate A to the adjuster pack. Feed
the cable and air pipe through mounting
plate A.
6. Secure the NC4 unit to mounting plate A
with the two M3 holding screws.
7. Feed the cable and air pipe through
mounting plates B and C.
8. Lay the conduit in the machine to check the
length. Cut to length if necessary.
Conduit insert
Gland multi-insert
Conduit

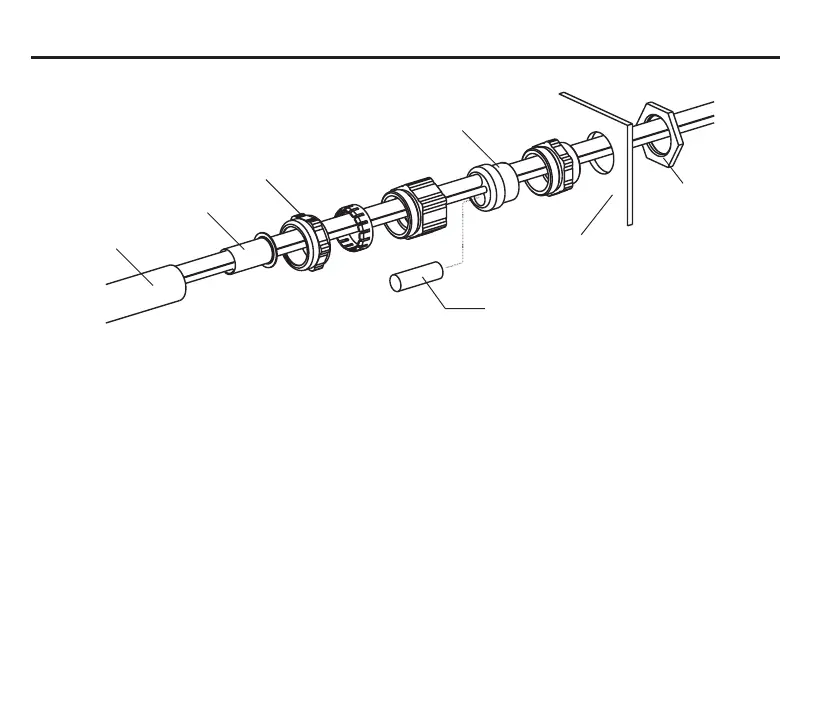

Exploded view of conduit and gland
Blanking plug
Machine
enclosure
Locknut
(see Parts list)
Gland nut
