Installation – separate system
9. Feed the air pipe and cable through the
cable gland and conduit. Do not apply
excessive force to the cable or air pipe as
this could damage the supplies or the NC4
unit. Apply an appropriate lubricant if
necessary.
10. Attach the gland, taking care to ensure the
conduit insert is pushed into the end of the
conduit and the blanking plug is fitted to the
gland multi-insert. Tighten the gland to
secure the conduit.

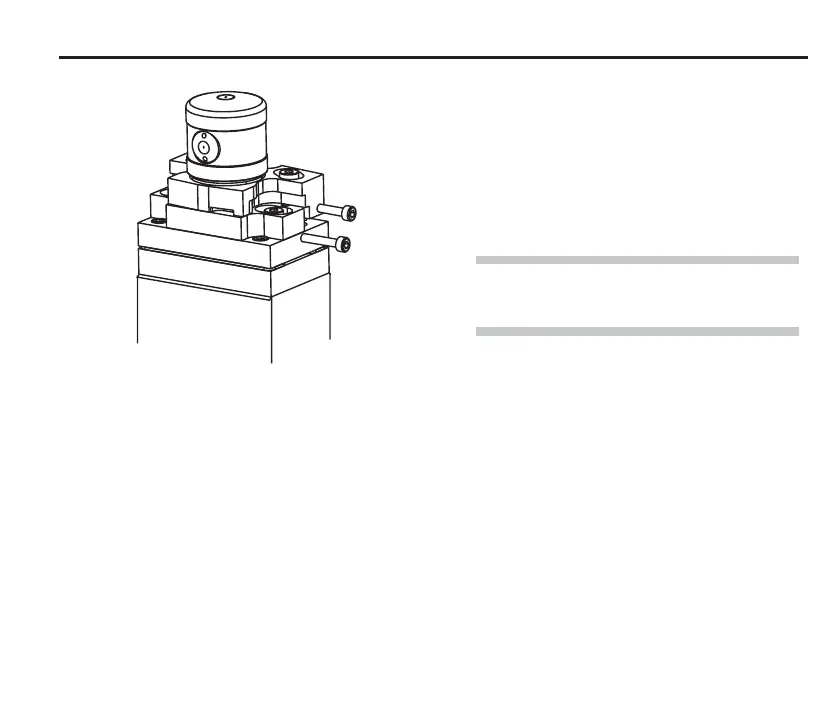

11. Remove the adjuster pack screw covers and
secure the adjuster pack assembly to the
mounting bracket.
12. Route the conduit through the machine. If
necessary, fit a cable gland where the
supplies exit from the enclosure.
NOTE: The radius of the conduit bend
should be greater than 120 mm (4.72 in).
13. Repeat steps 4 to 12 for the other NC4 unit.
14. Route the cables to the electrical cabinet,
taking care to avoid situating them next to
sources of electrical noise, e.g. motors,
power cables, etc.
15. Route the air pipes to the air regulator.
16. Using the air regulator, purge the Ø4 mm air
pipe to remove any debris.
