Renishaw XL Series User Manual

Linear
105
XL laser system
Angular
XL-80 hardware XL-80 applications

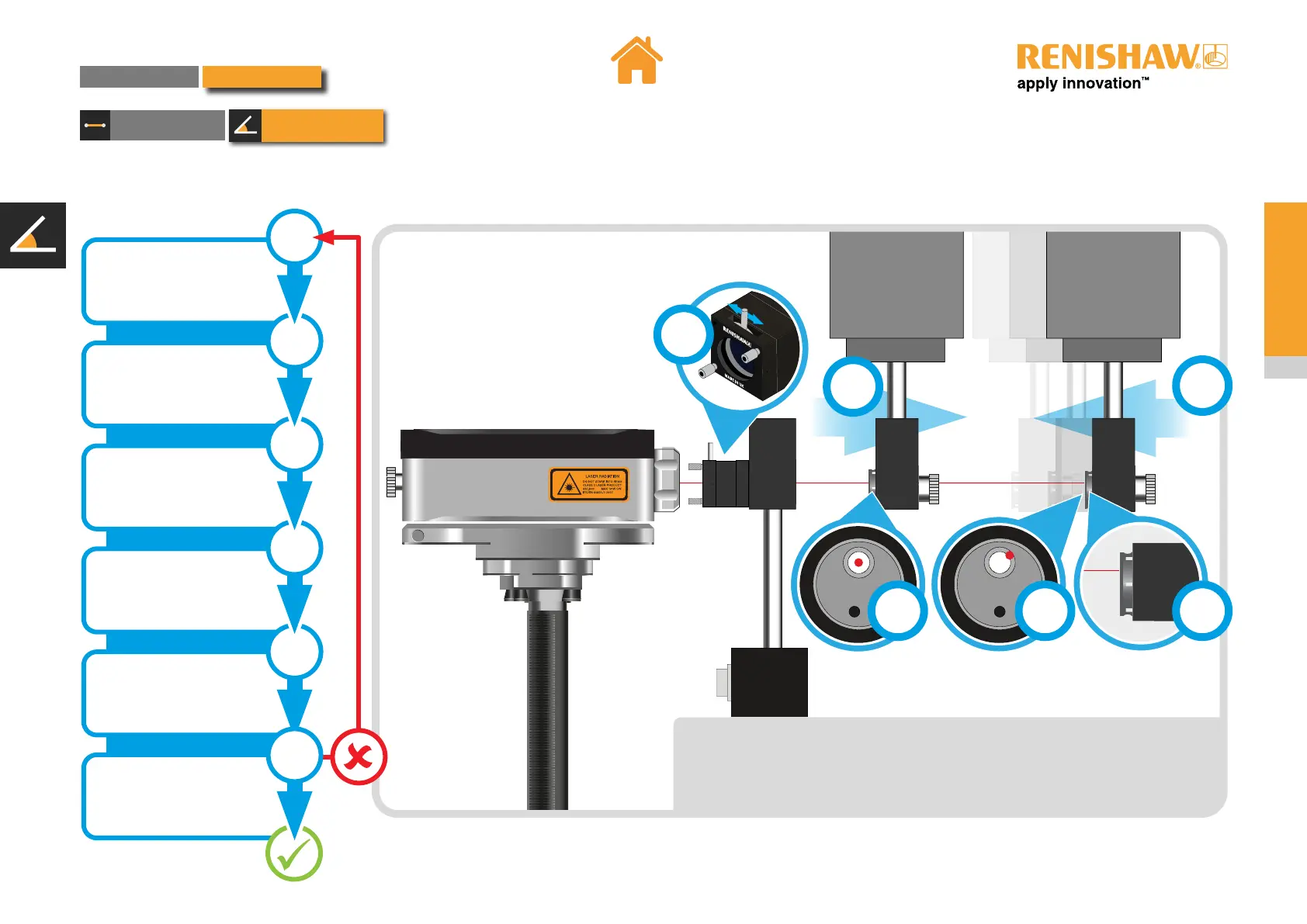

Use the machine to move
the reflector away from the
interferometer
Stop if the beam drifts past the
edge of the target shutter
Adjust the beam steerer so the
beam hits the centre of the target
Use the machine to drive
the reflector towards the
interferometer
Use the tripod/tripod stage to
translate the beam back to the
centre of the target
Check beam position along axis
4
2
65
Visual alignment
1
2
3
4
5
6
Repeat until the beam remains in the centre of the target over full length of the axis travel
3
1
Angular

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
