Renishaw XL Series User Manual

Linear
104
XL laser system
Angular
XL-80 hardware XL-80 applications
Visual alignment
Mounting the angular interferometer

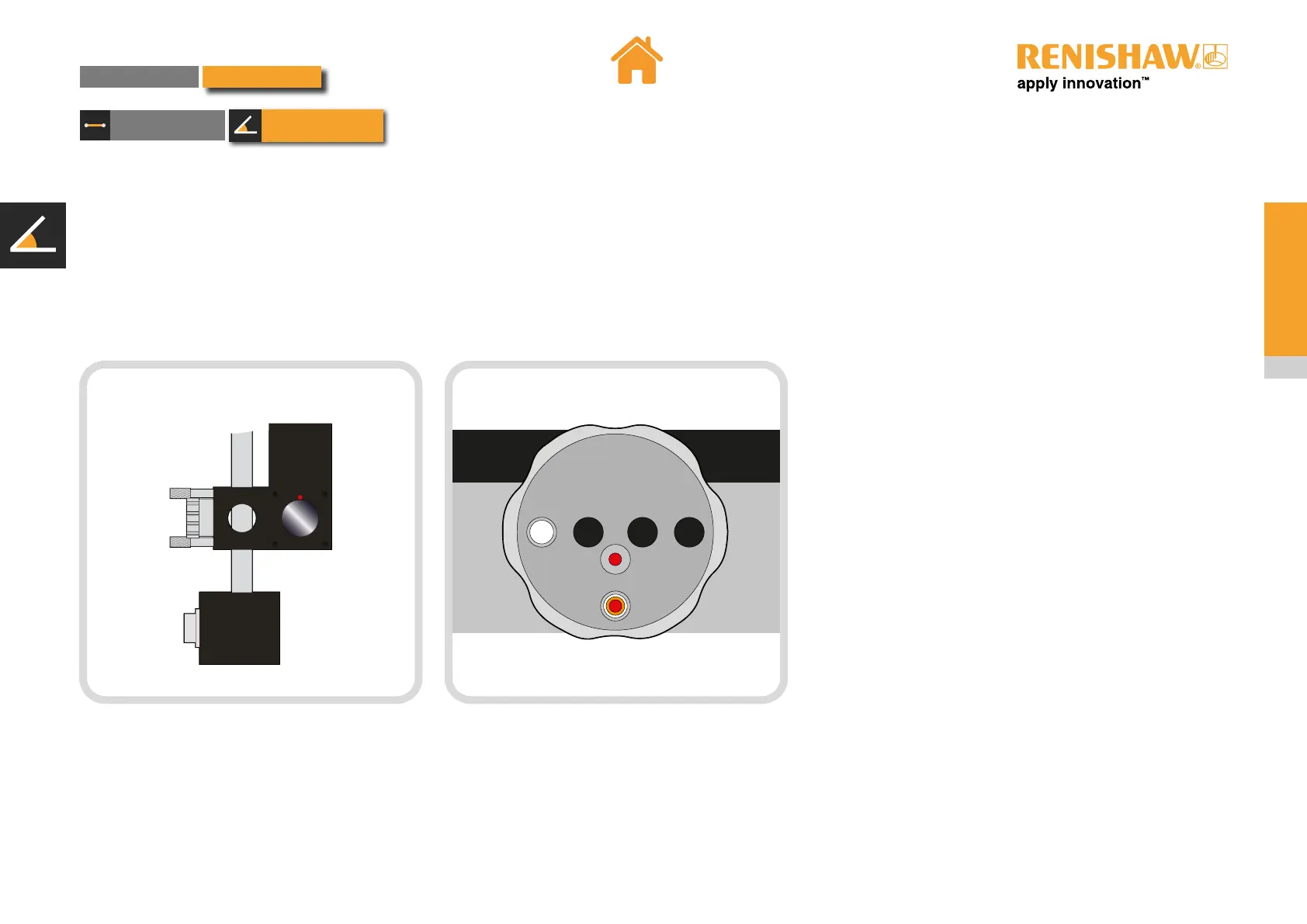

The angular measurement set up
Remove the target Check that the returned beam hits the centre of the target
on the XL laser shutter – if not adjust the position of the
interferometer
Angular

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
