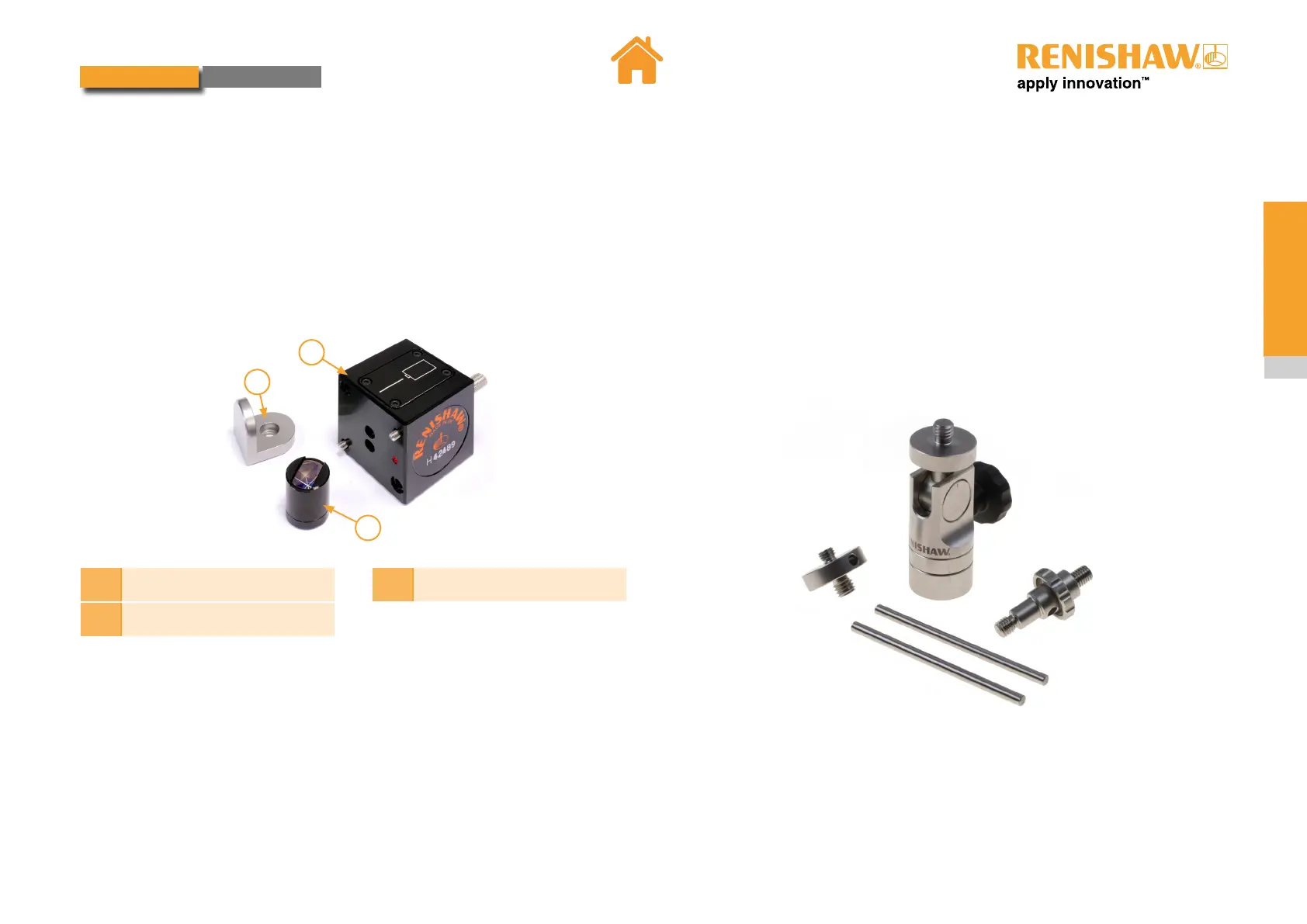

Small linear optics kit
The small linear optics kit allows the XL laser system to be used in applications
where a small and light measurement optic is desirable, minimising its effect on
a machine’s dynamic performance and providing greater flexibility in mounting
options.
1
Beam reducer optic
2
Small retroreflector
3
Mounting adaptor
Pan and tilt adaptor kit
The pan and tilt adaptor is designed to allow flexible mounting of laser calibration
equipment at angles between 0°- 90° with an infinite pan rotation.
The pan and tilt adaptor can be used to:
• mount the XL-80 laser on a tripod or magnetic base for applications such as
slant bed lathes.
• mount a retroreflector at an angle for convenient linear diagonal
measurement.
1
3
2

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
