Renishaw XL Series User Manual

11
XL laser system
XL-80 hardware XL-80 applications

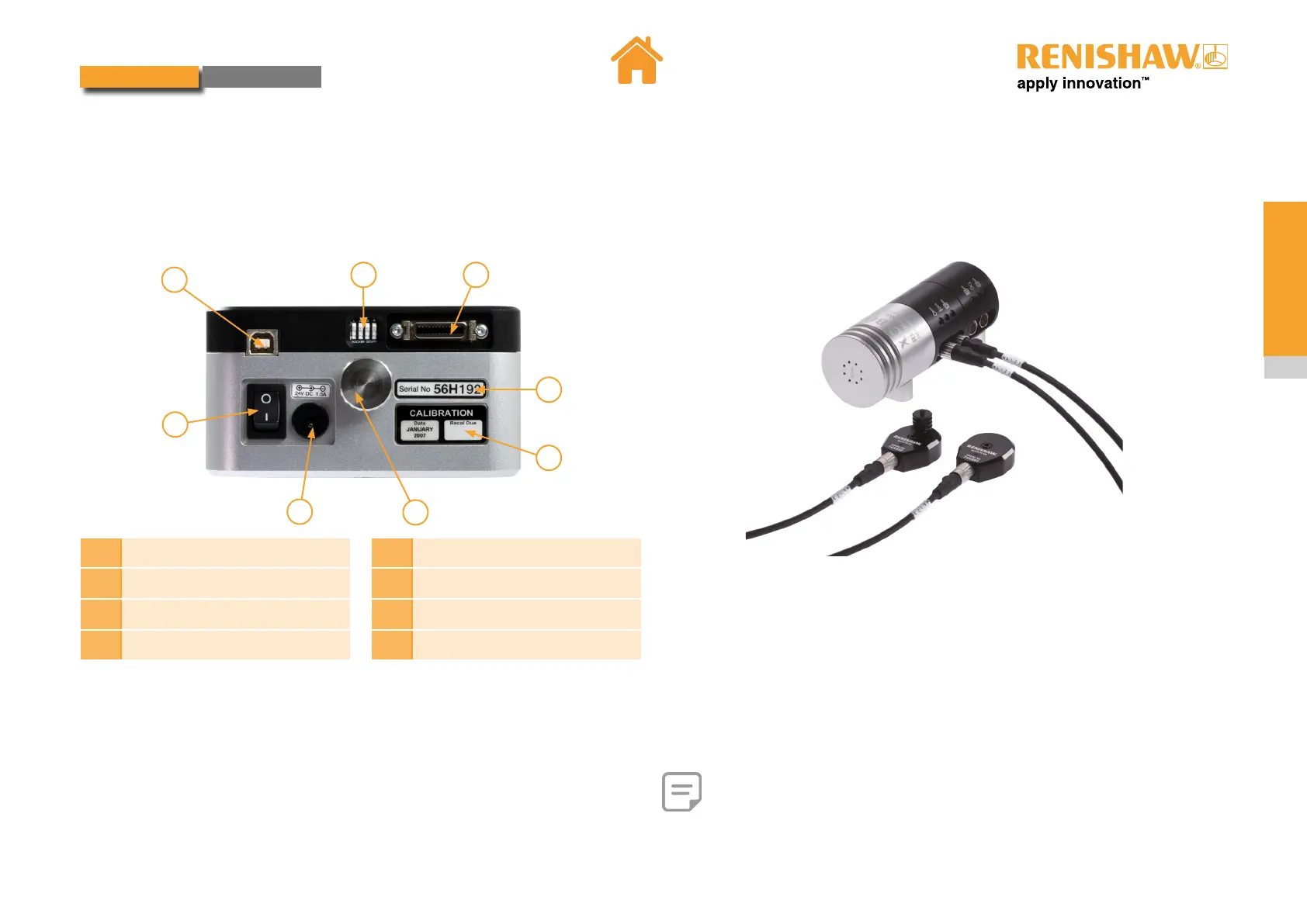

XL laser controls and indicators
1
USB socket
2
DIP switches
3
Auxilliary I/O
4
Serial number
5
Calibration due date
6
Pitch adjustment
7
24 V DC power input socket
8
On/Off switch
XC-80 environmental compensator
The XL laser system specified accuracy for interferometric measurements is only
valid when used with a calibrated XC-80 environmental compensator.
Changes in air temperature, pressure and relative humidity affect the wavelength
of the laser light and, therefore, the measurement readings taken.
The XC-80 environmental compensator and it’s sensors very accurately measure
the environmental conditions and compensate the wavelength of the laser beam
for variations in air temperature, air pressure and relative humidity.
Note: For full details on XC-80 operation and specification please refer to
XC-80 user guide.
2 3
4
5
6
7
8
1

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
