Renishaw XL Series User Manual

Linear
75
XL laser system
Angular
XL-80 hardware XL-80 applications
Visual alignment
Mounting the linear interferometer
The linear measurement set up

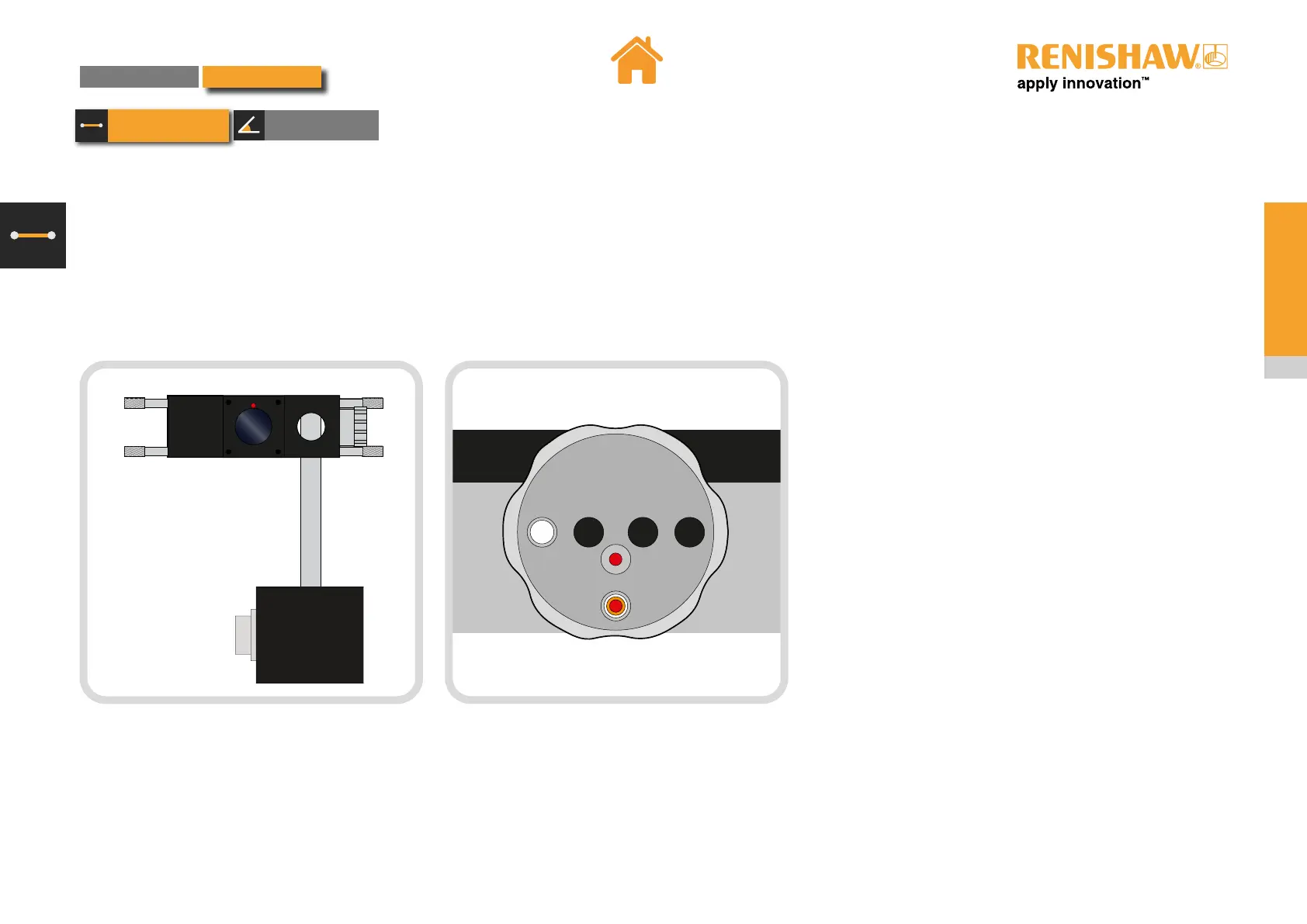

Remove the target Ensure that the two return beams are overlapping on the
shutter target. Adjust as required.
Linear

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
