Renishaw XL Series User Manual

Linear
77
XL laser system
Angular
XL-80 hardware XL-80 applications
Visual alignment

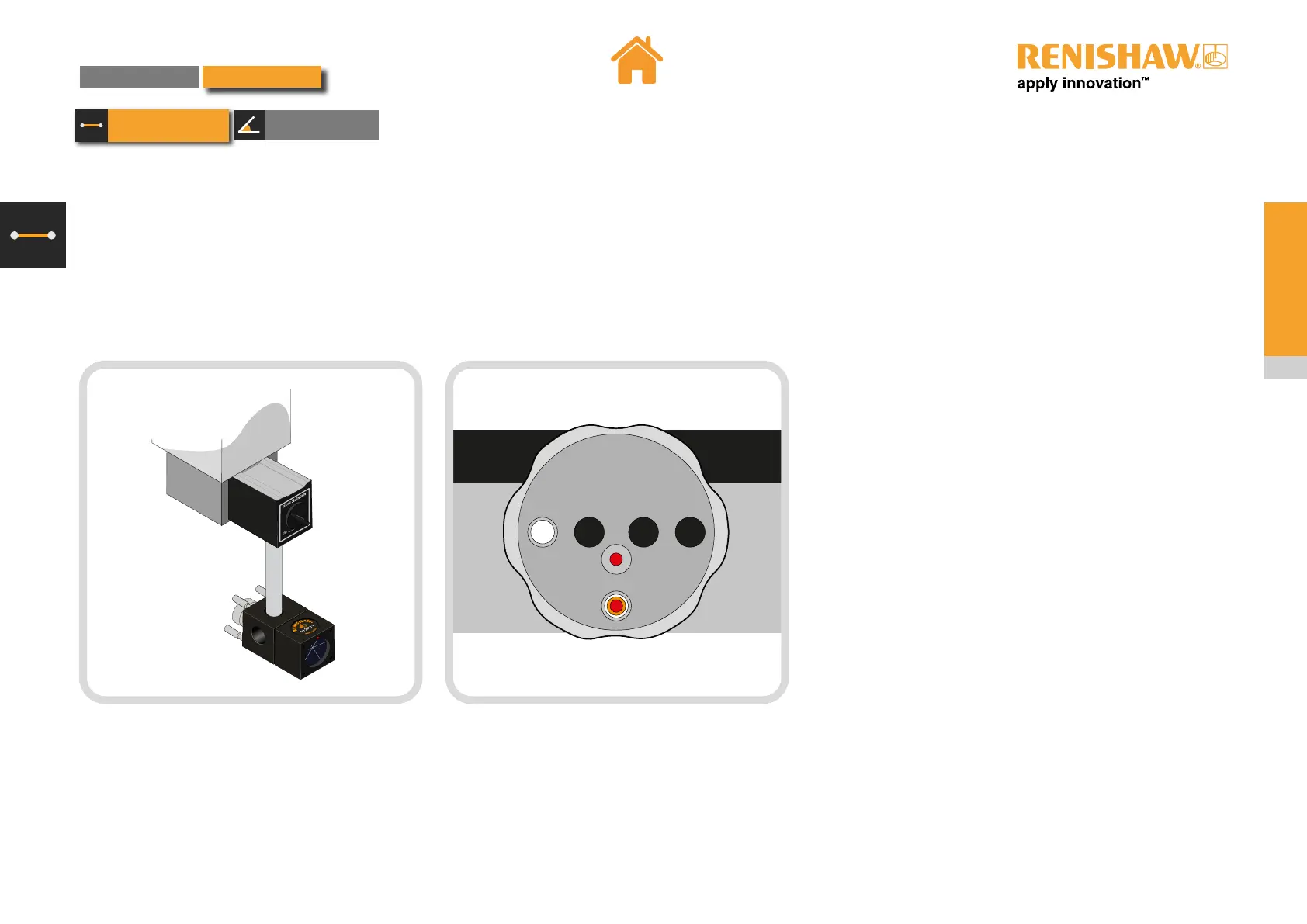

Ensure that the two return beams are overlapping on the
shutter target. Use the tripod height adjustment and the
horizontal adjustment on the tripod stage to bring the beams
back to the centre of the target
Remove the target
Linear

Renishaw XL Series Specifications

General

Laser Wavelength	633 nm
Type	Laser interferometer
Measurement Range	Up to 80 meters
Accuracy	±0.5 ppm
Environmental Compensation	Automatic
Laser Source	HeNe laser
Interface	USB
Power Supply	External power supply unit
