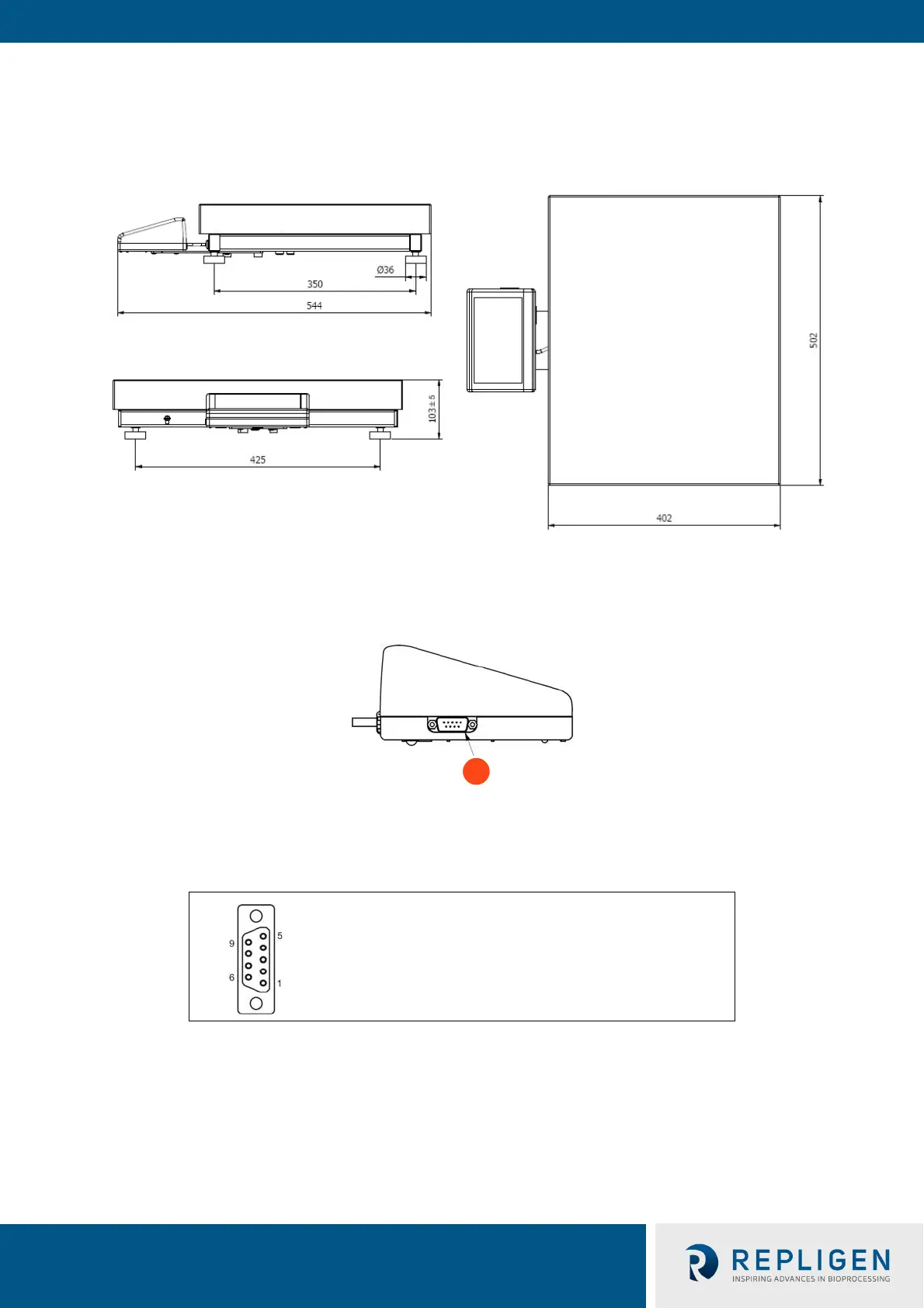

20. Mechanical design
20.1 Dimensions
Figure 13. Scale dimensions
20.2 Connectors arrangement
Figure 14. Scale connectors
Connectors view
1. RS232 connector
Figure 15. RS-232 connector
Pin2 – RxD
Pin3 – TxD
Pin5 – GNDRS
Pin8 – GNDZ
Pin9 – 12VDC
DB9 F connector (female)
