KrosFlo® TFF System – Auxiliary Scale ACSS-60K
repligen.com 420-14871-002 Rev. 00

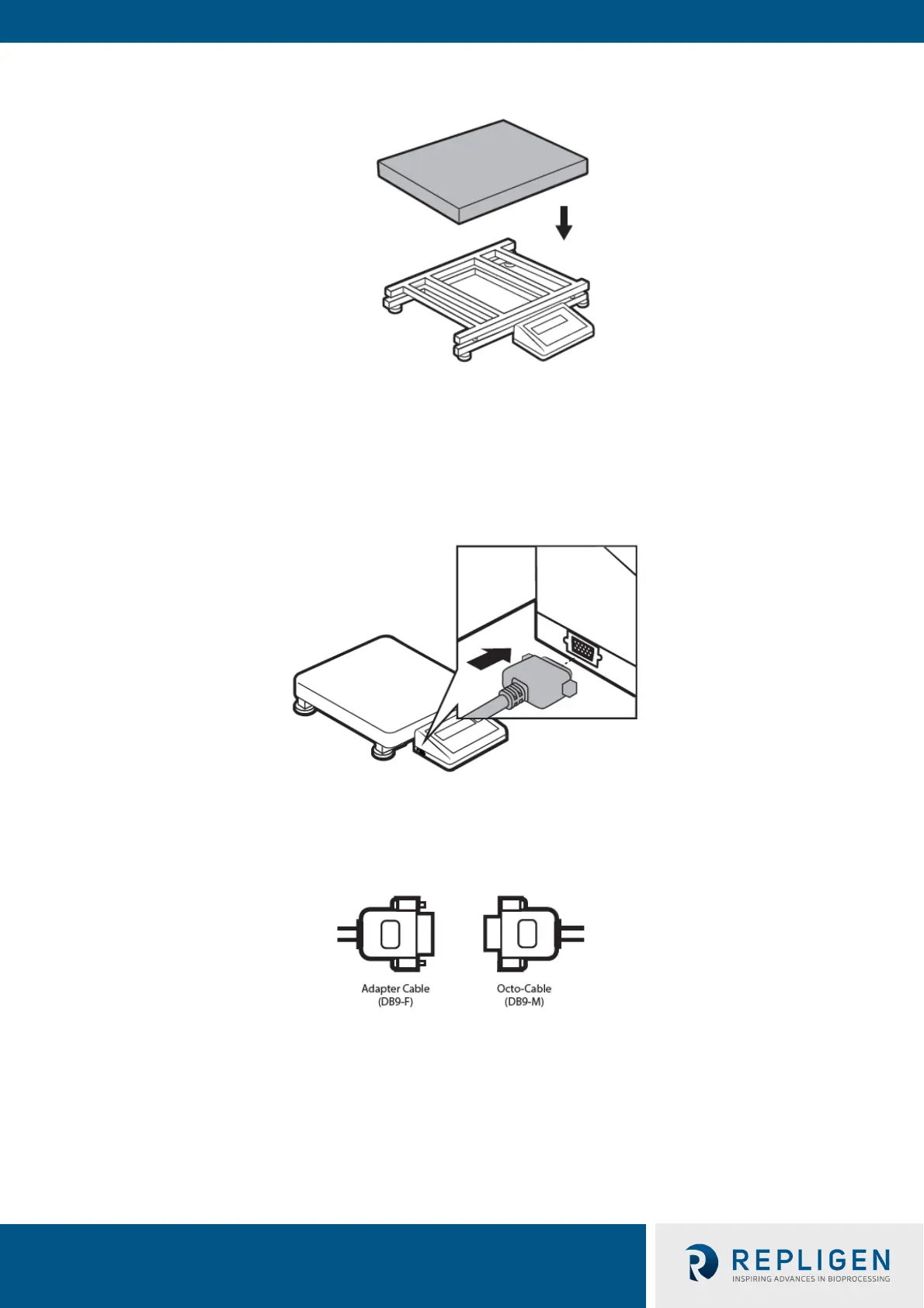

Figure 6. Replace weighing pan
3. Prior to switching the balance on, let it reach room temperature (estimated stabilization
time: 1 - 8 hours).
4. Connect the adapter cable (DB9-M) to the rear of the scale. During this process there should
be no load on the weighing pan.
Figure 7. Interface cable to scale connection
5. Connect the adapter cable (DB9-F) to the auxiliary component octopus cable.
Figure 8. Interface cable to octopus cable
