User Guide
KrosFlo® KR2i Real-Time Process Management (RPM) System

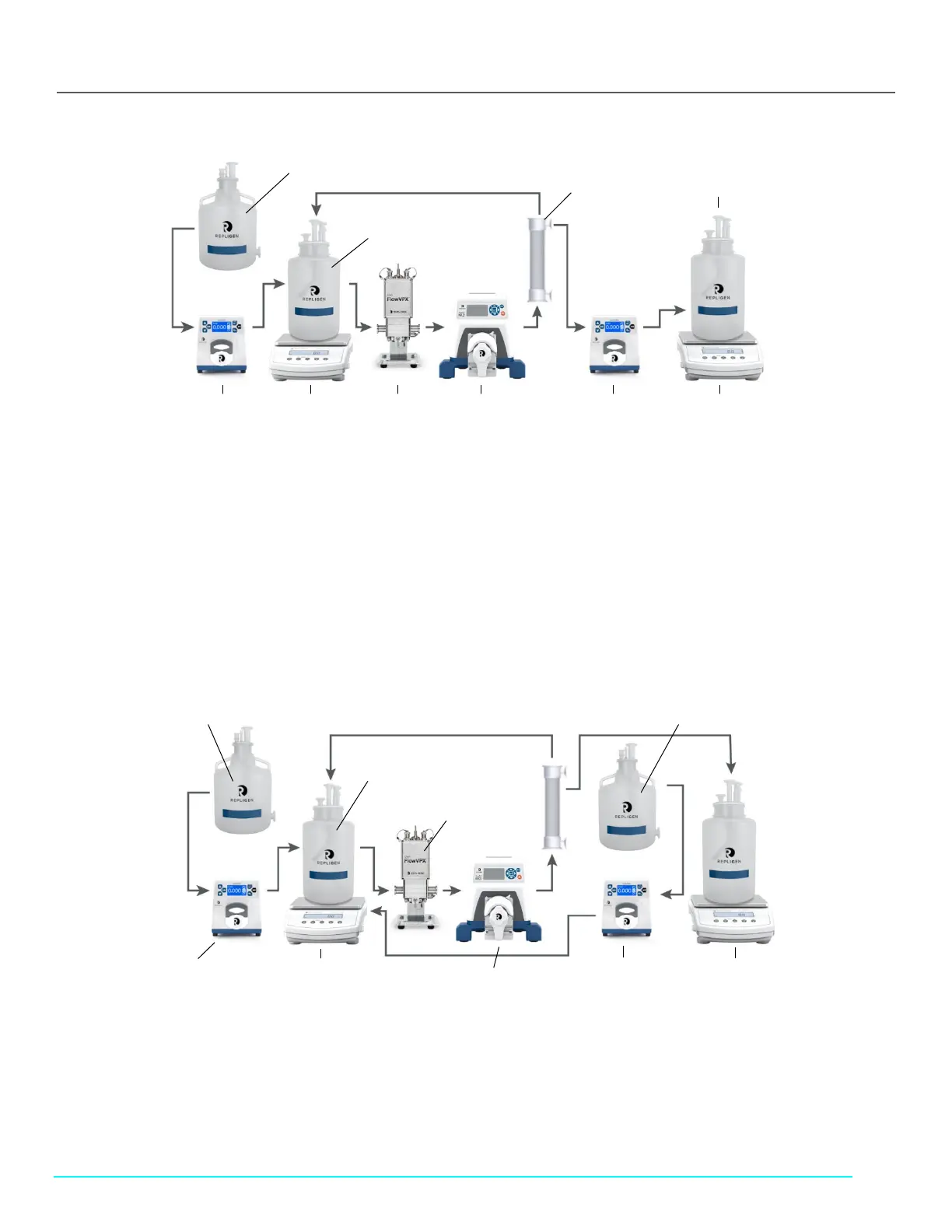

Figure 3. C/D and C/D/C Mode setup configuration
1. Auxiliary Pumps
a. Connect auxiliary pump to the Auxiliary Component Cable’s “Auxiliary Pump 1” port and second auxiliary pump to
the Auxiliary Component Cable's "Auxiliary Pump 2" port.
b. Connect Auxiliary pump power cables(s).
2. Auxiliary Scales
a. Connect first scale to the Auxiliary Component Cable’s “Feed Scale” port and second scale to the Auxiliary
Component Cable’s “Permeate Scale” port.
7.5 C/D/D/C Mode Setup
Figure 4. C/D/D/C Mode setup configuration
1. Auxiliary Pumps
a. Connect first auxiliary pump to the Auxiliary Component Cable’s “Auxiliary Pump 1” port and second auxiliary
pump to the Auxiliary Component Cable’s “Auxiliary Pump 2” port.
b. Connect auxiliary power cables.
VPT Device
(FlowVPX)
Feed Reservoir
Diafiltration Pump
(Auxiliary Pump 1)
Feed
Scale
KR2i
Pump
Permeate Pump
(Auxiliary Pump 2)
Permeate
Scale
Permeate Reservoir
Module
Diafiltration Buffer Reservoir
Permeate Reservoir
VPT Device
(FlowVPX)
KR2i Pump
Diafiltration Pump
(Auxiliary Pump 2)
Permeate Scale
Diafiltration Buffer Reservoir 2
Diafiltration Buffer Reservoir 1
Diafiltration Pump
(Auxiliary Pump 1)
Feed Scale
