DOC0304

eRev. [Major Version]1.01.0 8/9/2023

User Guide

KrosFlo® KR2i Real-Time Process Management (RPM™) System

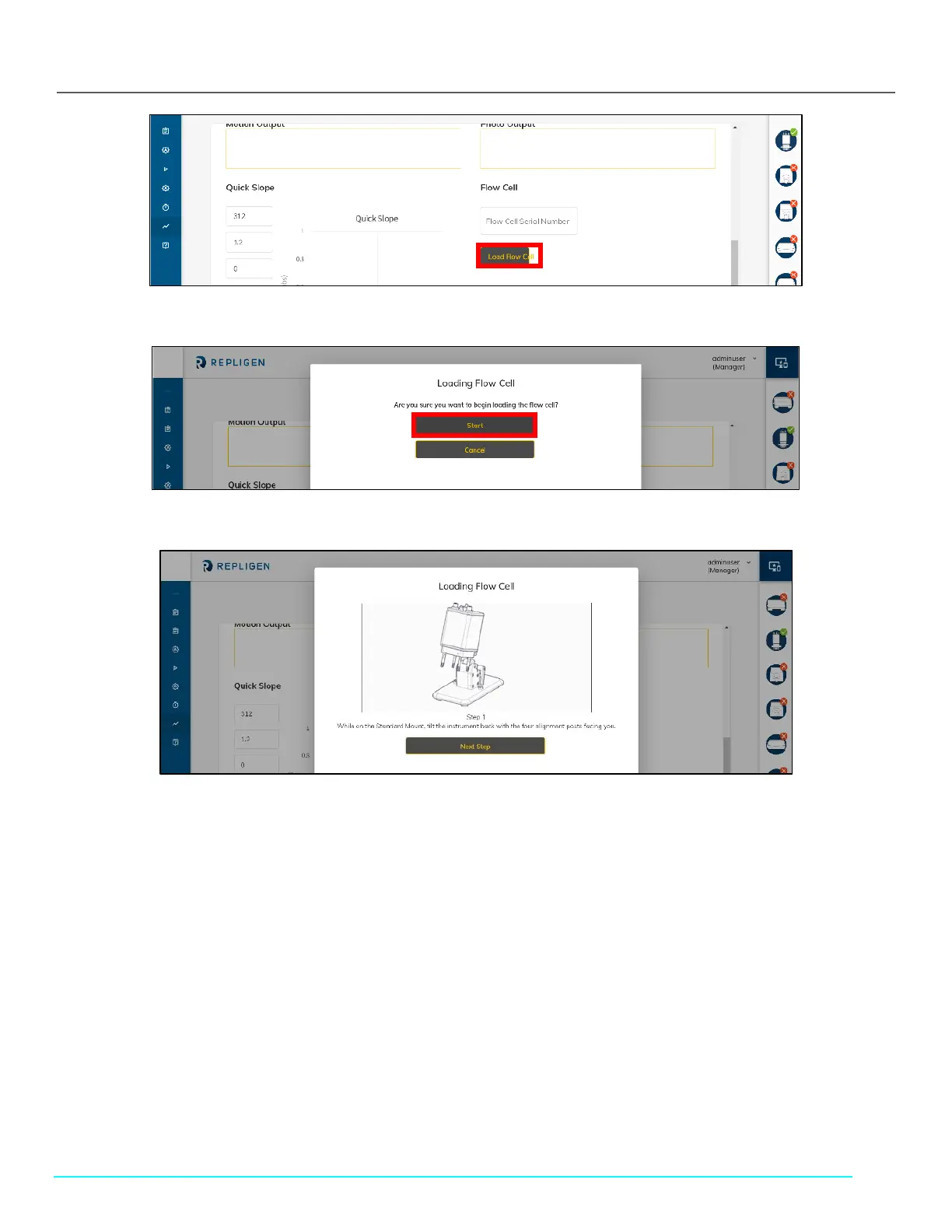

7. Click “Start” when the “Loading Flow Cell” pop-up window appears.

8. Follow the onscreen instructions and animations to load a flow cell.

9. Upon completing the loading of the flow cell, the pop-up window will automatically close and return to the previous VPT

Device menu. The serial number and flow cell name will automatically populate under the “Loaded Flow Cell Serial

Number” and “Loaded Flow Cell Name” fields, respectively. A new option to “Unload Flow Cell” will also appear.

9.2.2 Unloading the Flow Cell

1. To unload the flow cell, click “Unload Flow Cell” from the VPT Device Menu.
