DOC0304

eRev. [Major Version]1.01.0 8/9/2023

User Guide

KrosFlo® KR2i Real-Time Process Management (RPM™) System

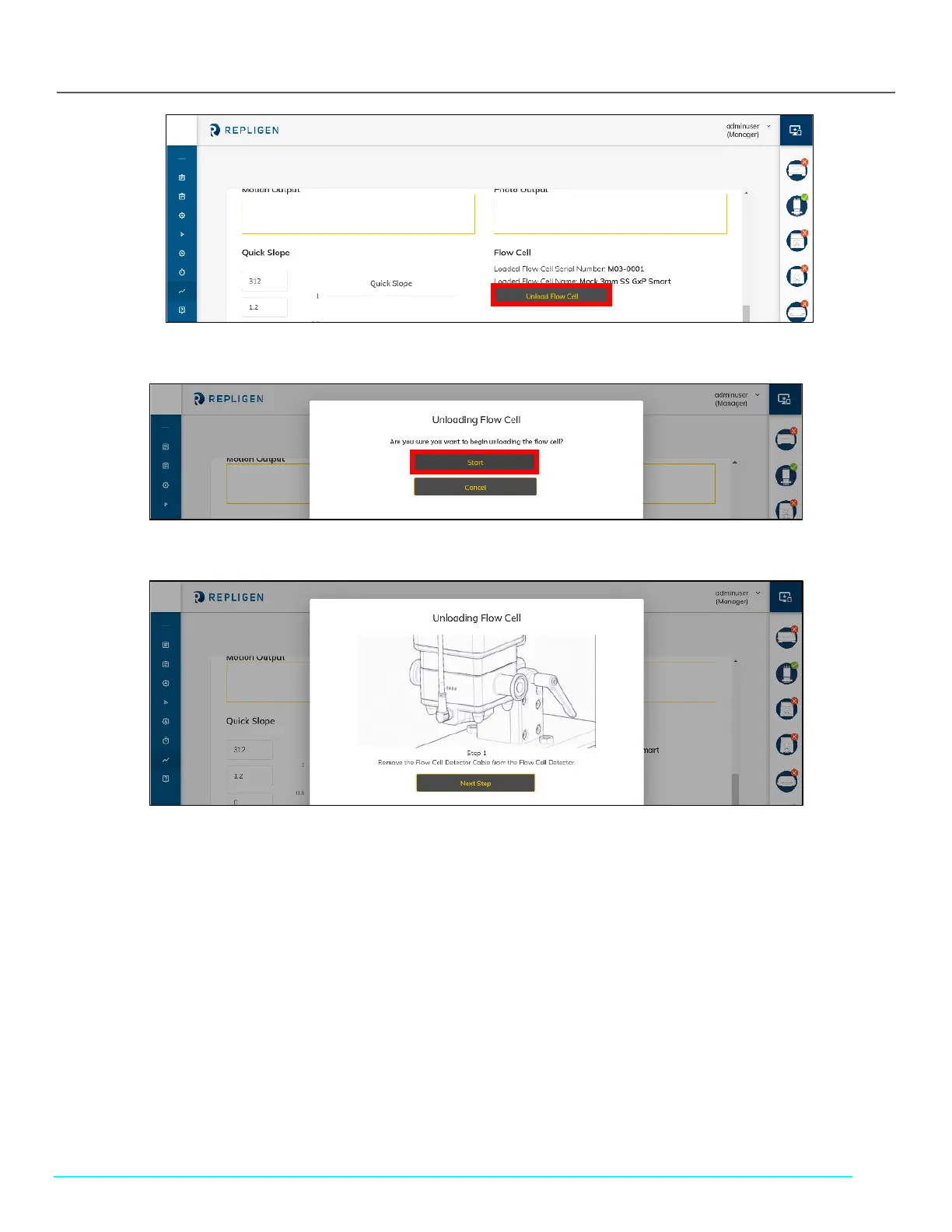

2. Click “Start” when the “Unloading Flow Cell” pop-up appears.

3. Follow the onscreen instructions and animations to unload a flow cell.

4. Upon completion of unloading the flow cell, the pop-up window will automatically close and return to the previous VPT

Device menu. The serial number and flow cell name will be removed automatically.

9.3 Software/Firmware Operation

VPT Devices operate through TFF System firmware and software; please contact Repligen Customer Service to ensure latest

firmware and software combination has been loaded on TFF System and PC prior to operation.

Main Page

Table of Contents3
Table 1. Explanation of User Attention Phrases7
