KrosFlo® KR2i Real-Time Process Management (RPM™) System
Note: The clamp handles can change orientation by pulling out and rotating. This allows them to be repositioned without
obstruction.

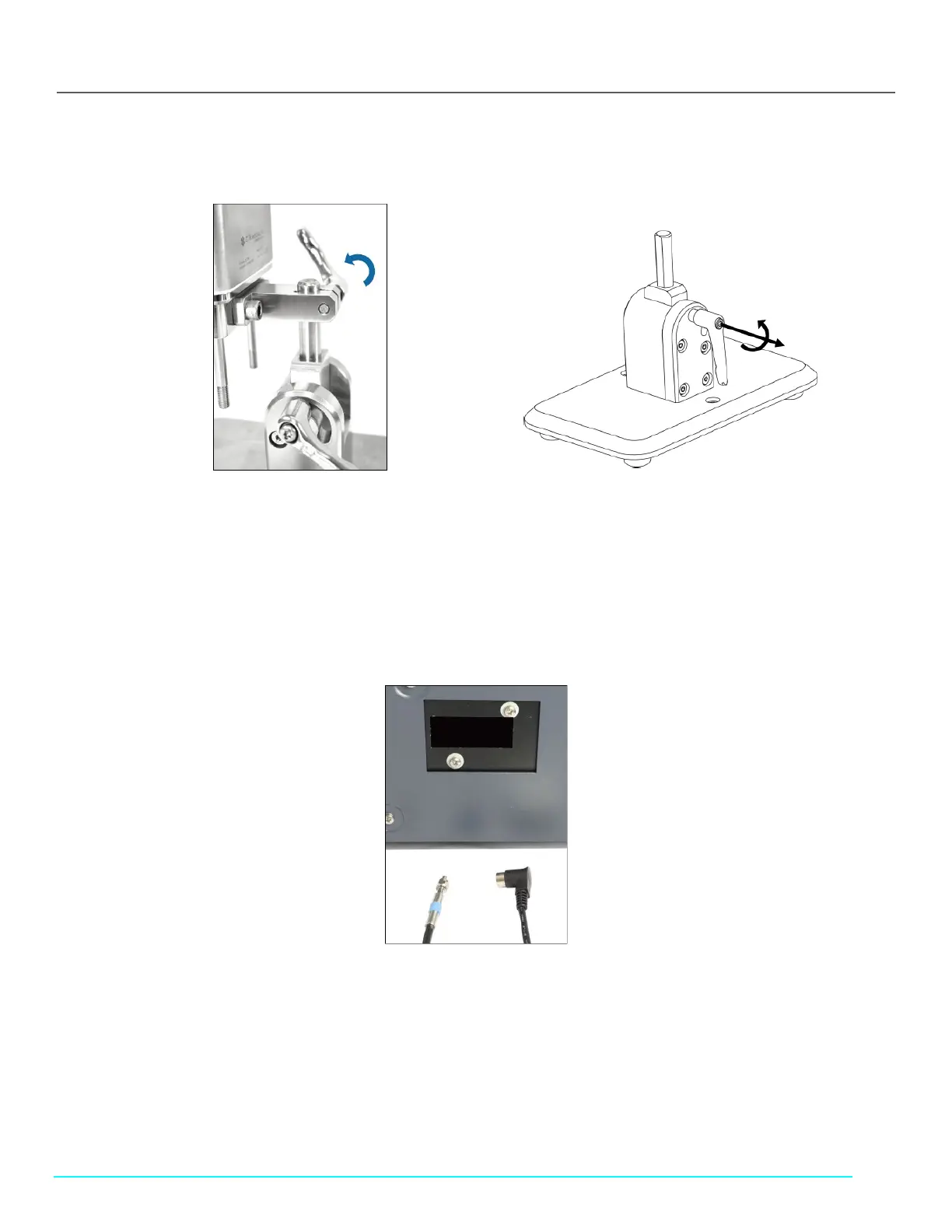

Figure 26. Tighten Standard Mount Clamp Handle (Left) and Repositioning the Clamp Handle (Right)
Note: The clamp handles can change orientation by pulling out and rotating. This allows them to be repositioned without
obstruction.
9.1.2 Connecting the FlowVPX Instrument to the Cary 60 Spectrophotometer and Computer
1. Pass the Detector Cable (EC0196) and the Delivery Fiber (SMA/hex-nut end) through the open accessory port at the back of
the Cary 60 spectrophotometer into the sample compartment (see Figure 28).
Figure 27. Accessory port in back of Cary 60 spectrophotometer
2. Connect the black, right-angle plug of the Detector Cable into the wall of the Cary 60 sample compartment (see Figure 29).
