27
eRev. [Major Version]1.01.0 8/9/2023
KrosFlo® KR2i Real-Time Process Management (RPM™) System

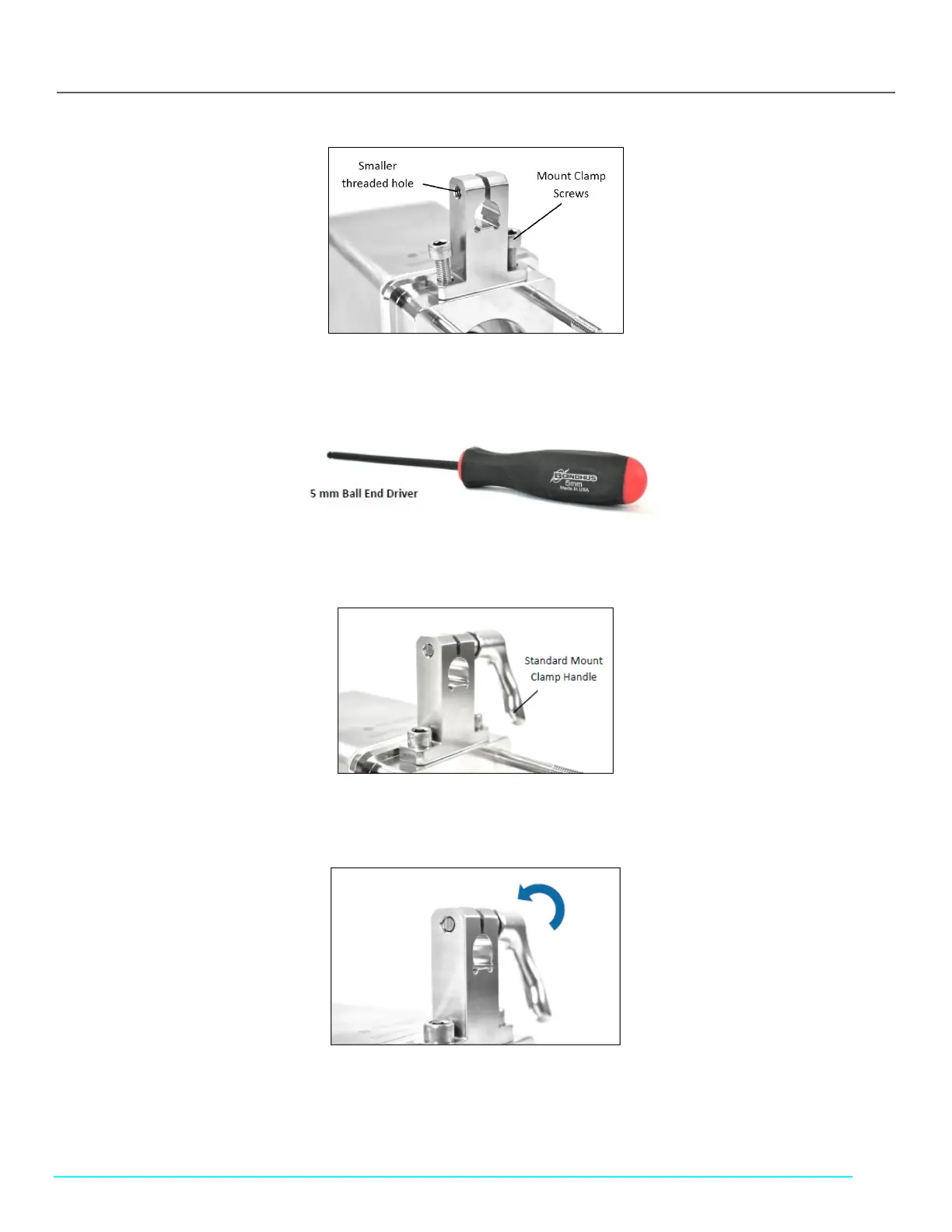

Figure 19. Standard Mount Clamp on FlowVPX Head
3. Insert the mount clamp screws. Tighten with the provided 5 mm ball end driver (Figure 20).
Figure 20. 5 mm Ball End Driver
4. Install the Clamp Handle from the right side of the Standard Mount Clamp (Figure 21).
Figure 21. Clamp Handle installation
5. Turn until the threaded post on the Clamp Handle starts to appear at the other end (see Figure 22). Do not fully tighten.
Figure 22. Rotate Clamp Handle
